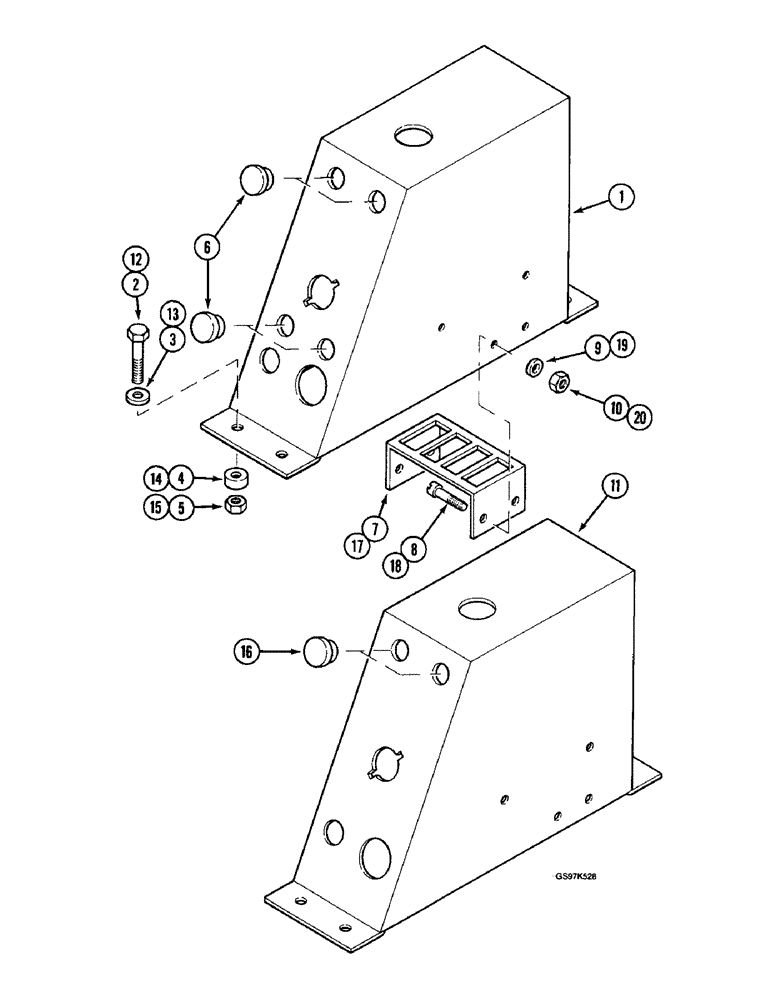

Запчасти Case 220B (4-28) - MOUNTING PARTS FOR CAB ELECTRICAL COMPONENTS, P.I.N. 74441 THROUGH 74594 (04) - ELECTRICAL SYSTEMS

1

P5328211

SUPPORT

BRACKET - mounting, electrical components

1шт.

2

P133865

SCREW

BOLT - hex, 8 mm x 60 mm

4шт.

3

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

4

P4328732

WASHER

SPACER - bracket, 28 mm thick

4шт.

5

P1334571

NUT

- hex, 8 mm

4шт.

6

P1737419

PLUG

- cover

4шт.

7

P2225949

SUPPORT

BRACKET - mounting, harness end

1шт.

8

P32529

SCREW,Hex Soc Hd, M4 x 16

BOLT - slotted head, 4 mm x 16 mm

4шт.

9

P4328717

WASHER

SPACER - bolt, 3 mm thick

4шт.

10

P34107

NUT - hex, 4 mm, Serial Range: 74595-74597

4шт.

10

P34107

NUT - hex, 4 mm, Start Serial: 03201

4шт.

11

P5140303

CASE

BRACKET - mounting, electrical components, Serial Range: 74595-74597

1шт.

11

P5140303

CASE

BRACKET - mounting, electrical components, Start Serial: 03201

1шт.

12

P133865

SCREW

BOLT - hex, 8 mm x 60 mm, Serial Range: 74595-74597

4шт.

12

P133865

SCREW

BOLT - hex, 8 mm x 60 mm, Start Serial: 03201

4шт.

13

P3528794

WASHER

SPACER - bolt, 6 mm thick, Serial Range: 74595-74597

4шт.

13

P3528794

WASHER

SPACER - bolt, 6 mm thick, Start Serial: 03201

4шт.

14

P4328732

WASHER

SPACER - bracket, 28 mm thick, Serial Range: 74595-74597

4шт.

14

P4328732

WASHER

SPACER - bracket, 28 mm thick, Start Serial: 03201

4шт.

15

P1334571

NUT

- hex, 8 mm, Serial Range: 74595-74597

4шт.

15

P1334571

NUT

- hex, 8 mm, Start Serial: 03201

4шт.

16

P1737419

PLUG

- cover, Serial Range: 74595-74597

2шт.

16

P1737419

PLUG

- cover, Start Serial: 03201

2шт.

17

P2225949

SUPPORT

BRACKET - mounting, harness end, Serial Range: 74595-74597

1шт.

17

P2225949

SUPPORT

BRACKET - mounting, harness end, Start Serial: 03201

1шт.

18

P32529

SCREW,Hex Soc Hd, M4 x 16

BOLT - slotted head, 4 mm x 16 mm, Serial Range: 74595-74597

4шт.

18

P32529

SCREW,Hex Soc Hd, M4 x 16

BOLT - slotted head, 4 mm x 16 mm, Start Serial: 03201

4шт.

19

P4328717

WASHER

SPACER - bolt, 3 mm thick, Serial Range: 74595-74597

4шт.

19

P4328717

WASHER

SPACER - bolt, 3 mm thick, Start Serial: 03201

4шт.

20

P34107X

NUT,M4, Cl 8

- hex, 4 mm, Serial Range: 74595-74597

4шт.

20

P34107X

NUT,M4, Cl 8

- hex, 4 mm, Start Serial: 03201

4шт.
