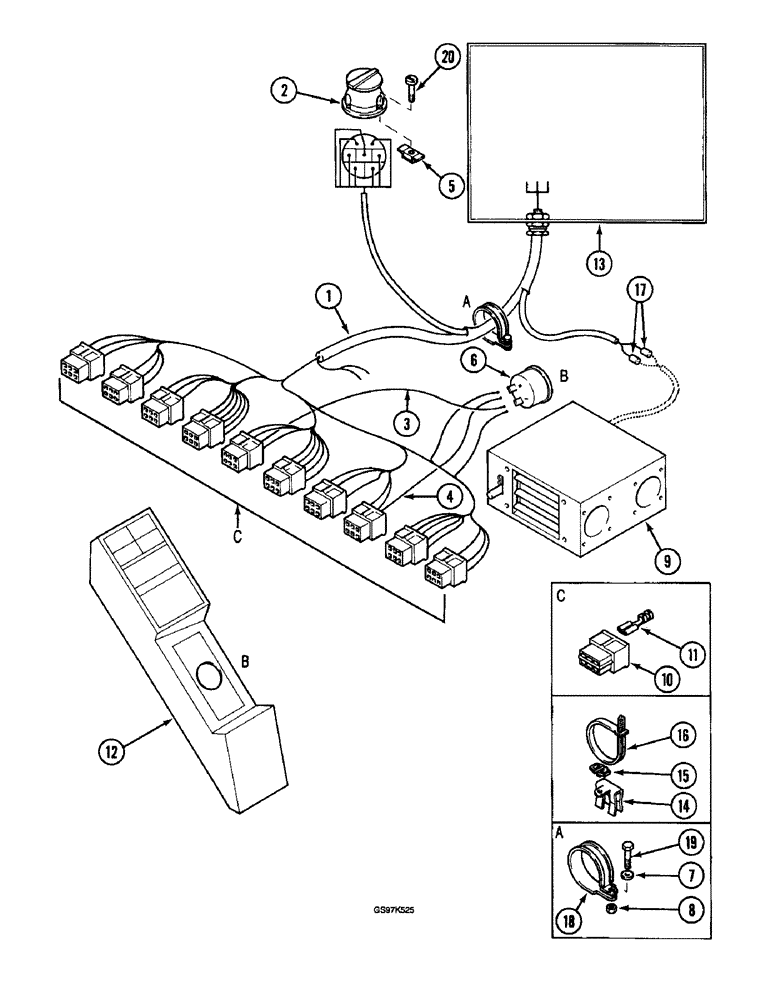

Запчасти Case 220B (4-22) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. 74516 THROUGH 74597, P.I.N. 03201 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P9547237

HARNESS

ASSEMBLY - instrument panel, Includes: Ref. 2 - 4

1шт.

2

P40745

PEDESTAL

SOCKET - cab harness

1шт.

3

P9547271

ELECTRICAL WIRE

WIRE - connector, Serial Range: harness-alarm

1шт.

4

P9547272

ELECTRICAL WIRE

WIRE - connector, Serial Range: harness-alarm

1шт.

5

P1634573

NUT

- cage type, 6 mm

3шт.

6

P841710

BUZZER

ALARM - low engine oil pressure, see Figure 4-14 for mounting parts

1шт.

7

P3528794

WASHER

SPACER - clamp bolt

1шт.

8

P1334571

NUT

- clamp bolt

1шт.

9

P1241846

HEATER ASSY.

HEATER ASSEMBLY - parts list Figure 4-68

1шт.

10

P840757

CASE

CONNECTOR - male, 6-way

10шт.

11

P40937

CLIP,ELECTRICAL

CLIP - wire

1шт.

12

REF

INSTRUCTION

PANEL - instrument, see figure 4-14 for component parts, not serviced as complete assembly

1шт.

13

REF

INSTRUCTION

CIRCUIT - electrical box, see figure 4-44 or 4-46 and figure 4-60 for instrument panel harness connections

1шт.

14

P2036902

CLASP

CLIP - retainer, expands from 3 - 7 mm (1/8 - 1/4 inch)

1шт.

14

P2036903

CLASP

CLIP - retainer, expands from 8 - 12 mm (5/16 - 1/2 inch)

1шт.

14

P1436963

CLASP

CLIP - retainer, expands from 14 - 20 mm (9/16 - 3/4 inch)

1шт.

15

PP2036939

CLASP

RETAINER - tie strap

1шт.

16

P336923

CLAMP

STRAP - tie, harness, 117 mm (4-5/8 inch) long

1шт.

16

P51946

CLAMP

STRAP - tie, harness, 258 mm (10-1/8 inch) long

1шт.

16

P136922

CLAMP

STRAP - tie, harness, 351 mm (13-7/8 inch) long

1шт.

17

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip

2шт.

18

P1736988

CLAMP

- harness, 44 - 51 mm (1-3/4 - 2 inch) diameter

1шт.

19

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

20

P32550

SCREW

- slotted head, 6 mm x 30 mm

3шт.
