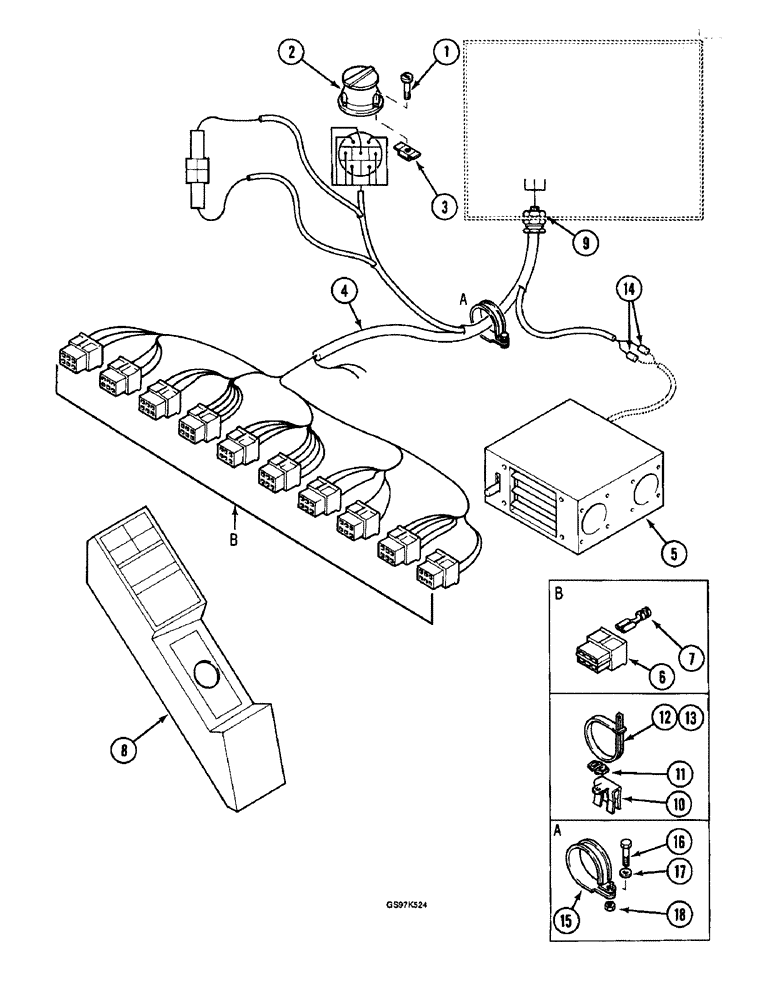

Запчасти Case 220B (4-20) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. 74441 THROUGH 74515 (04) - ELECTRICAL SYSTEMS

1

P32550

SCREW

- socket mounting

3шт.

2

P40745

PEDESTAL

SOCKET - cab harness

1шт.

3

P1634573

NUT

- square, socket bolt

3шт.

4

P8647258

HARNESS

- instrument panel

1шт.

5

P1241846

HEATER ASSY.

HEATER ASSEMBLY - parts list Figure 4-68

1шт.

6

P840757

CASE

CONNECTOR - male, 6-way

10шт.

7

P40937

CLIP,ELECTRICAL

CLIP - wire

1шт.

8

REF

INSTRUCTION

PANEL - instrument, see figure 4-12 for component parts, not serviced as complete assembly

1шт.

9

REF

INSTRUCTION

CIRCUIT - electrical box, see figure 4-44

1шт.

10

P2036902

CLASP

CLIP - retainer, expands from 3 - 7 mm (1/8 - 1/4 inch)

1шт.

11

P2036939

CLASP

RETAINER - tie strap

1шт.

12

P336923

CLAMP

STRAP - tie, harness, 117 mm (4-5/8 inch) long

1шт.

13

P51946

CLAMP

STRAP - tie, harness, 258 mm (10-1/4 inch) long

1шт.

14

P40941

CONNECTION,ELECTRIC

CONNECTOR - wire clip

2шт.

15

P1736988

CLAMP

- harness, 44 - 51 mm (1-3/4 - 2 inch) diameter

1шт.

16

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

Harness Clamp Hex, M8 x 1.25 x 22

1шт.

17

P3528794

WASHER

SPACER - clamp bolt

1шт.

18

P1334571

NUT

- clamp bolt

1шт.
