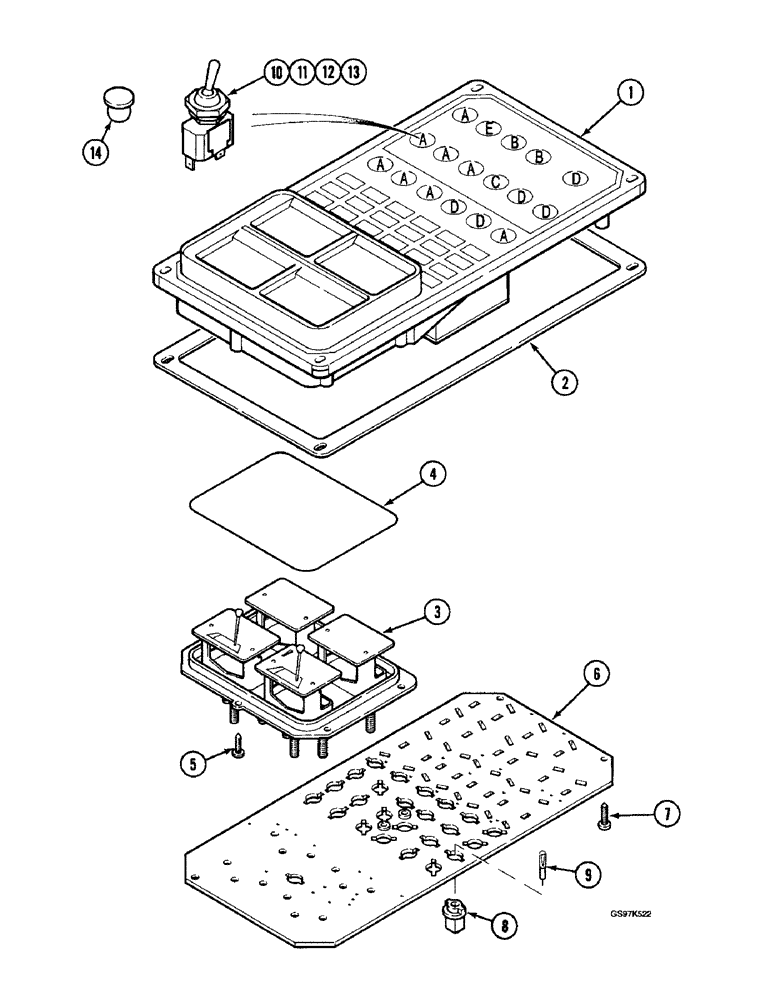

Запчасти Case 220B (4-16) - ELECTRICAL CONTROL PANEL, P.I.N. 74441 THROUGH 74596 (04) - ELECTRICAL SYSTEMS

P7043841

PANEL, INSTRUMENTS

PANEL ASSEMBLY - control, complete, Includes: Ref. 1 - 14

1шт.

1

P2241062

FRAME

COVER - control

1шт.

2

P7546028

SEAL

GASKET - control panel, Serial Range: cover-console

1шт.

3

P251575

BOTTOM

CLUSTER - instrument, control panel

1шт.

4

P7546029

SEAL

GASKET -, Serial Range: cluster-cover

1шт.

5

P2033026

SCREW

-, Serial Range: cluster-cover

6шт.

6

P151682

BOARD, PRINTED CIRCU

CIRCUIT - printed, control panel

1шт.

7

P2033026

SCREW

- printed, Serial Range: circuit-panel

2шт.

8

P1941442

SUPPORT

SOCKET - control panel lamp

22шт.

9

P40506

LAMP

BULB - control panel lamp

22шт.

10

P641619

IGNITION SWITCH

SWITCH - toggle, control panel, A location

8шт.

11

P641611

SWITCH

- toggle, control panel, B location

2шт.

12

P641609

SWITCH

- toggle, control panel, C location

1шт.

13

P2141697

SWITCH

- toggle, control panel, E location

1шт.

14

P1540469

BLANK-OFF PLUG

PLUG - control panel, D location

5шт.
