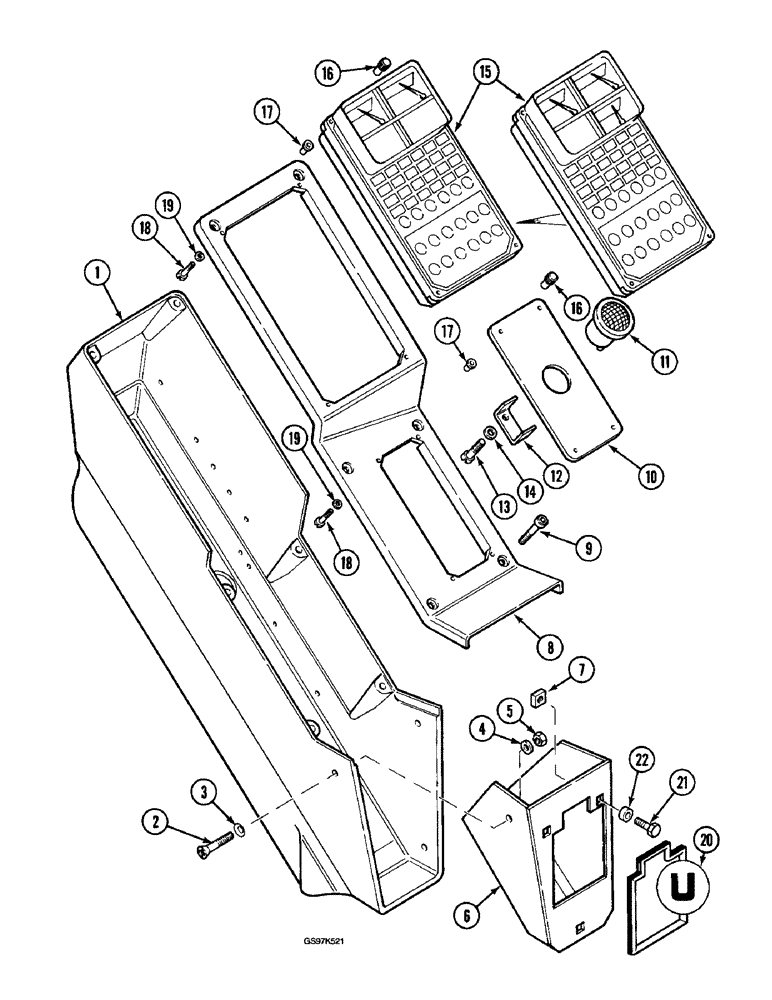

Запчасти Case 220B (4-14) - INSTRUMENT PANEL, P.I.N. 74516 THROUGH 74597, P.I.N. 03201 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P6643862

PANEL, INSTRUMENTS

CONSOLE - instrument and controls

1шт.

2

P32415

SCREW

- Phillips head, 10 mm x 35 mm, class 10.9

5шт.

3

P34802

WASHER

- finish, console screw

5шт.

4

P3528795

WASHER

SPACER - screw, 7 mm thick

5шт.

5

825-1410

NUT,M10, Cl 8

(Replaces nut P34166) M10, Cl 8

5шт.

6

P3126343

SUPPORT

BRACKET - console mounting

1шт.

7

P1334560

NUT

- cage type, 10 mm

3шт.

8

P3840376

COVER

- console, top

1шт.

9

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

SCREW, (Replaces bolt P32910) Hex Soc Hd, M6 x 16, 8.8

6шт.

10

P4423412

LARGE PLATE

COVER - console, access

1шт.

11

P841710

BUZZER

ALARM - low engine oil pressure, for electrical connection see Figure 4-22

1шт.

12

P2025991

SUPPORT

BRACKET - retainer, alarm

1шт.

13

P32529

SCREW,Hex Soc Hd, M4 x 16

- slotted head, 4 mm x 16 mm

1шт.

14

P4328717

WASHER

SPACER - screw, 3 mm thick

1шт.

15

P7043841

PANEL, INSTRUMENTS

PANEL ASSEMBLY - controls, parts list Figure 4-16, Serial Range: 74516-74596

1шт.

15

P8643813

PANEL, INSTRUMENTS

PANEL ASSEMBLY - controls, parts list Figure 4-18, P.I.N. 74597, Start Serial: 03201

1шт.

16

P641612

BUTTON

NUT - retainer, access cover and control, Serial Range: panel-console

8шт.

17

P2036924

BUSHING

RETAINER - screw to console cover

8шт.

18

P32531

SCREW

- slotted head, 4 mm x 20 mm

8шт.

19

P34603

WASHER

- special, cover and panel screw

8шт.

20

REF

INSTRUCTION

TRIM - edge, console bracket, 600 mm (23-5/8 inch) long, cut from bulk trim P303112 below

1шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

3шт.

22

P3528795

WASHER

SPACER - bolt, 7 mm thick

3шт.

P303112

SEAL

TRIM - edge, bulk, sold by the meter

1шт.
