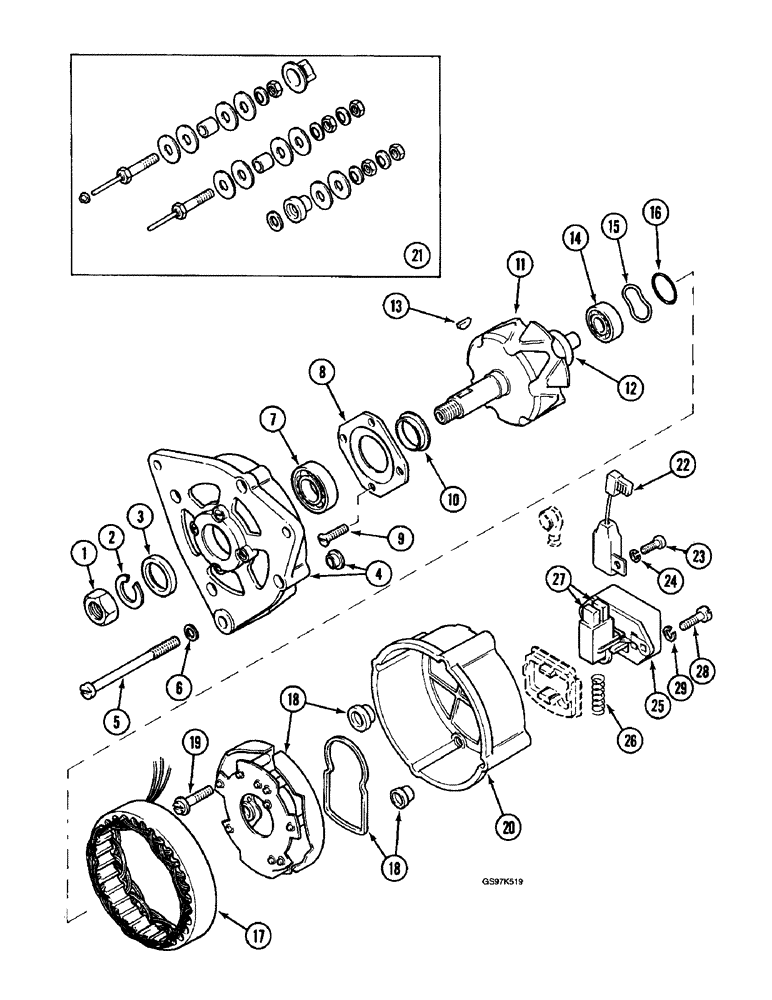

Запчасти Case 220B (4-10) - ALTERNATOR, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (04) - ELECTRICAL SYSTEMS

P641554

ALTERNATOR

ALTERNATOR ASSEMBLY - 28 volt, Includes: Ref. 1 - 29

1шт.

1964860C1GV

ALTERNATOR

Value

1шт.

1964860C1R

REMAN-ALTERNATOR

Remanufactured ALTERNATOR, 24 volt 65 ampere

1шт.

1964860C1C

CORE-ALTERNATOR

Return Part Number

1шт.

87297230

REMAN-ALTERNATOR

Remanufactured ALTERNATOR, 12 volt 65 ampere

1шт.

87297231

CORE-ALTERNATOR

Return Part Number

1шт.

87297240

REMAN-ALTERNATOR

Remanufactured ALTERNATOR

1шт.

87297241

CORE-ALTERNATOR

Return Part Number

1шт.

A186124

ALTERNATOR

Alternator, 24V, 45 Amp

1шт.

AR186124

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186124

CORE-ALTERNATOR

Return Part Number

1шт.

A187873

ALTERNATOR,12V, 65A

Alternator, 14V, 65 Amp

1шт.

AR187873

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC187873

CORE-ALTERNATOR

Return Part Number

1шт.

1

NSS

NOT SOLD SEPARAT

NUT - fan and pulley retaining, order kit P641533

1шт.

See figure 2-10 for alternator fan, pulley and belt.

1шт.

Part of rotor assembly kit P/N 3078897R91

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, order kit P641533

1шт.

See figure 2-10 for alternator fan, pulley and belt.

1шт.

Part of rotor assembly kit P/N 3078897R91

1шт.

3

NSS

NOT SOLD SEPARAT

COLLAR - rotor shaft, order kit P641533

1шт.

See figure 2-10 for alternator fan, pulley and belt.

1шт.

Part of rotor assembly kit P/N 3078897R91

1шт.

4

P7230133

FLANGE

COVER - drive end shield, includes bushing, no longer available

1шт.

5

3079388R1

SCREW

BOLT - through, cover to housing (Replaces bolt P2033033)

4шт.

6

J907481

WASHER

WASHER - flat, if used (Replaces washer P35055)

4шт.

7

P2039818

BEARING

BEARING - ball, drive end

1шт.

8

P1340496

DUST CAP

CAP - rotor

1шт.

9

NSS

NOT SOLD SEPARAT

BOLT - cap, order kit P641533

4шт.

See figure 2-10 for alternator fan, pulley and belt.

1шт.

Part of rotor assembly kit P/N 3078897R91

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rotor shaft, order kit P641533

1шт.

See figure 2-10 for alternator fan, pulley and belt.

1шт.

Part of rotor assembly kit P/N 3078897R91

1шт.

P641562

ROTOR

ROTOR ASSEMBLY - alternator, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

ROTOR - alternator, order rotor assembly P641562

1шт.

12

P6146082

BUSHING

BUSHING - rotor

1шт.

13

NSS

NOT SOLD SEPARAT

KEY - Woodruff, rotor shaft, order kit P641533

1шт.

See figure 2-10 for alternator fan, pulley and belt.

1шт.

Part of rotor assembly kit P/N 3078897R91

1шт.

14

3079383R91

BALL BEARING

BEARING - ball, inner (Replaces bearing P2039817)

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - wave, bearing, order kit P641533

1шт.

See figure 2-10 for alternator fan, pulley and belt.

1шт.

Part of rotor assembly kit P/N 3078897R91

1шт.

16

3079386R1

O-RING

O-RING - bearing (Replaces O-ring P1630466)

1шт.

17

P641564

STATOR

STATOR - alternator

1шт.

18

3079411R91

PLATE

DIODE - alternator, includes seals (Replaces diode P2140612)

1шт.

19

A186188

SCREW

BOLT - diode holder to housing (Replaces bolt P2033032)

3шт.

20

P7230134

FLANGE

HOUSING - alternator, rear cover

1шт.

21

3079391R91

PACKAGE, REPAIR

KIT - connector, at rear of housing (Replaces kit P4746267)

1шт.

22

3079389R1

CAPACITOR

CAPACITOR - alternator (Replaces capacitor P2042417)

1шт.

23

3079390R1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 5.8

BOLT - capacitor mounting (Replaces bolt P2033035)

1шт.

24

P34740

WASHER

WASHER - lock, no longer available

1шт.

3079392R91

GOVERNOR

REGULATOR ASSEMBLY - voltage (Replaces regulator assembly P641565), Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

REGULATOR - voltage, order regulator assembly

1шт.

26

P1538138

SPRING

SPRING - regulator

1шт.

27

3079394R92

BRUSH SET

KIT - brush, alternator (Replaces kit P1241206)

1шт.

28

P2033034

SCREW

BOLT - regulator mounting

2шт.

29

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock (Replaces washer P34739)

2шт.

3078897R91

SET

KIT - hardware, rotor assembly, Includes: Ref. 1, 2, 3, 9, 10, 13 and 15, Replaces kit P641533

1шт.
