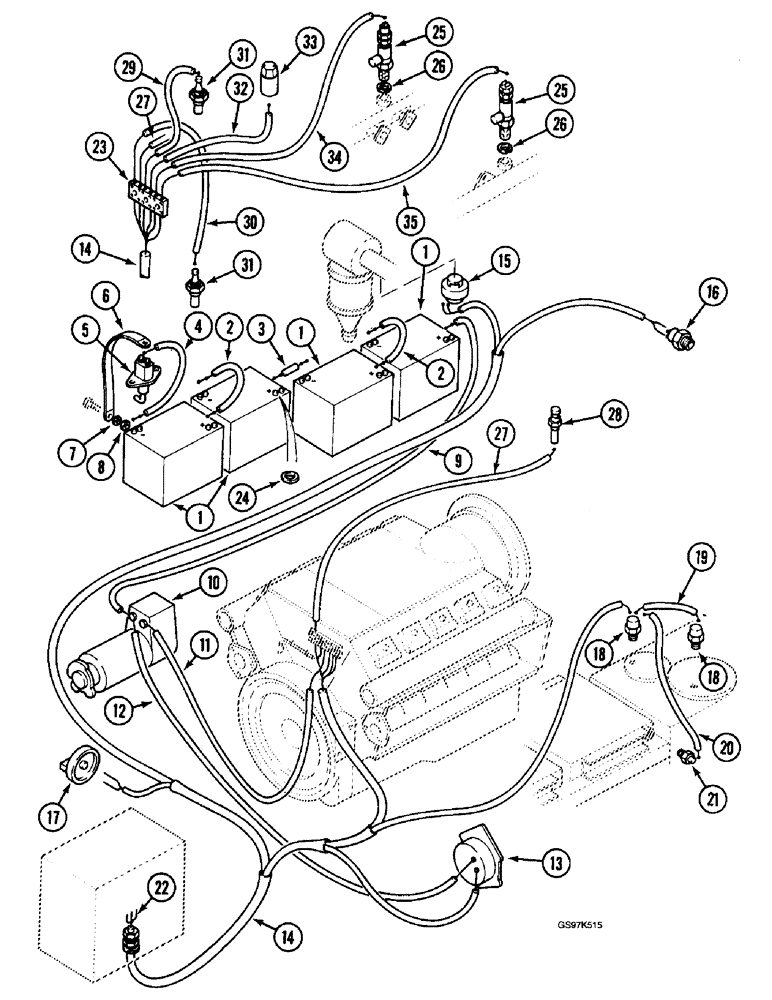

Запчасти Case 220B (4-04) - ENGINE ELECTRICAL SYSTEM, P.I.N. 74597, P.I.N. 03201 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P941895

DRY BATTERY

- electrical, dry type, see Figuree 4-50 for mounting parts (Replaces battery P941879)

4шт.

2

P2247204

CABLE

- battery to battery, short

2шт.

3

P2347230

CABLE

- battery to battery, long

1шт.

4

P9247202

CABLE

- battery to battery disconnect switch

1шт.

5

P2141263

CIRCUIT-BREAKER

SWITCH - battery disconnect, see Figure 4-52 for mounting parts (Replaces switch P641221)

1шт.

6

P1047299

NEG BATTERY CABLE

STRAP - ground, battery disconnect switch

1шт.

7

P3528794

WASHER

SPACER - strap mounting

1шт.

8

P34185H

NUT,M8, Cl 10

- hex, strap mounting

1шт.

9

P9247201

CABLE

-, Serial Range: battery-starter

1шт.

10

P941506

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figures 4-6 and 4-8

1шт.

For mounting, see figure 2-10.

1шт.

11

P9247205

CABLE

WIRE -, Serial Range: starter-engine

1шт.

12

P9247203

CABLE

WIRE -, Serial Range: starter-alternator

1шт.

13

P641554

ALTERNATOR

ASSEMBLY - electrical, parts list Figure 4-10

1шт.

For mounting, see figure 2-10.

1шт.

14

P9847237

HARNESS

- engine

1шт.

15

REF

INSTRUCTION

SENDER - air filter restriction indicator, see figure 2-5 for correct sender

1шт.

16

P1241856

SWITCH

SENDER - engine oil pressure, see Figure 2-12

1шт.

17

P214655

SENDER - low fuel level, see Figure 3-2

1шт.

18

REF

INSTRUCTION

SENDER - hydraulic oil filter restriction indicator, see figure 8-2

2шт.

19

P1547279

CABLE

WIRE - between senders

1шт.

20

P9847290

CABLE

WIRE - to temperature sender

1шт.

21

P641661

PROBE

SENDER - hydraulic oil temperature, see Figure 4-52

1шт.

22

REF

INSTRUCTION

CIRCUIT - electrical box, see Figures 4-44 through 4-48 for correct electrical circuit

1шт.

23

P40782

DEUTZ PART

BLOCK - junction, electrical, see Figure 2-12, order from Deutz

1шт.

24

P2340487

HOLE PLUG BUTTON

WASHER - treated, corrosion protection, not shown

8шт.

25

P241535

DEUTZ PART

PLUG - engine preheater, order from Deutz

2шт.

26

P945211

DEUTZ PART

GASKET - plug, engine preheater, order from Deutz

2шт.

27

P8647299

CABLE

WIRE - to engine oil temperature sender

1шт.

28

REF

INSTRUCTION

SENDER - engine oil temperature

1шт.

29

P9847238

ELECTRICAL WIRE

WIRE - to engine temperature thermostat, right-hand side

1шт.

30

P9847239

ELECTRICAL WIRE

WIRE - to engine temperature thermostat, left-hand side

1шт.

31

REF

INSTRUCTION

THERMOSTAT - engine temperature warning, see figure 2-12

2шт.

32

P8547207

ELECTRICAL WIRE

WIRE - to engine preheater switch

1шт.

33

P1943692

DEUTZ PART

SWITCH - engine preheater (Replaces switch P2143357)

1шт.

34

P8547205

ELECTRICAL WIRE

WIRE - to engine preheater plug, right-hand side

1шт.

35

P8547206

ELECTRICAL WIRE

WIRE - to engine preheater plug, left-hand side

1шт.
