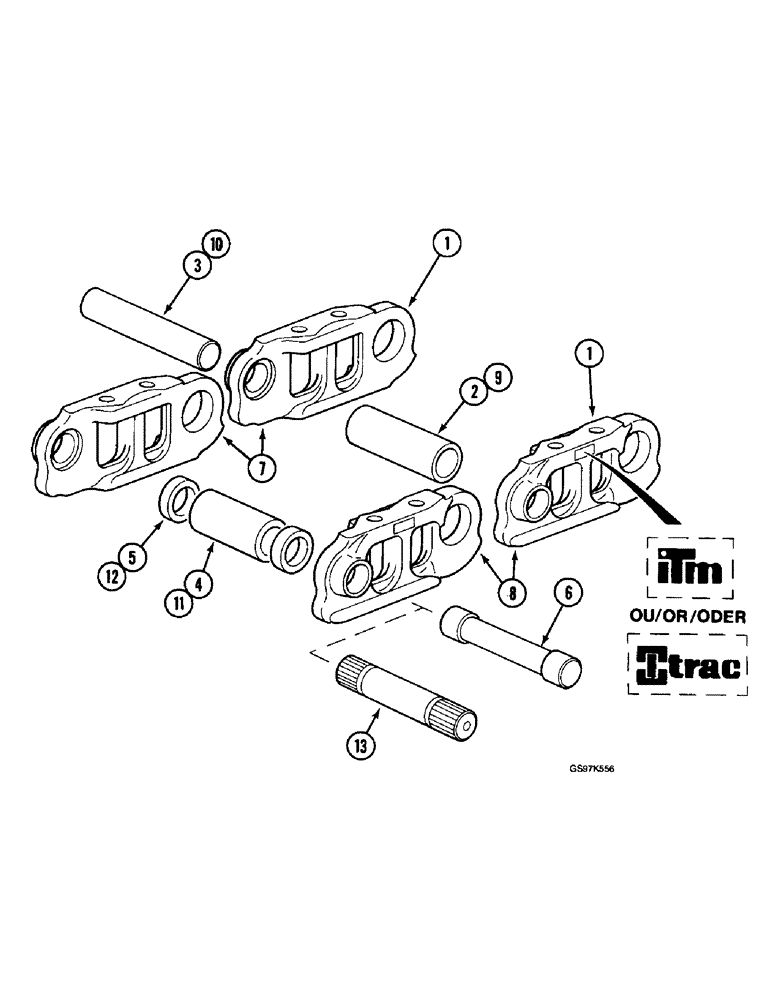

Запчасти Case 220B (5-16) - TRACK CHAIN, LINKS AND PINS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (11) - TRACKS/STEERING

P1642337

CHAIN (AG)

CHAIN ASSEMBLY - track, 51 link, ITM identification, no longer available, order chain assembly P2242342, Includes: Ref. 1 - 6

2шт.

1

P1642385

LINK

- track, set, includes one right-hand and one left-hand link

51шт.

2

P2229350

SPACER

BUSHING - standard pin

50шт.

3

P1227311

PIN

- standard

50шт.

4

P2229349

SPACER

BUSHING - master pin

1шт.

5

P545649

SPACER

- master pin

2шт.

6

P5327861

PIN

- master

1шт.

P2242342

CHAIN (CE)

CHAIN ASSEMBLY - track, 51 link, Intertrac identification (Replaces chain assembly P1642337), Includes: Ref. 7 - 13

2шт.

7

P1542359

LINK

- track, right-hand

51шт.

8

P1542354

LINK

- track, left-hand

51шт.

9

P2229320

SPACER

BUSHING - standard pin

50шт.

10

P3627878

PIN

- standard

50шт.

11

P2229322

SPACER

BUSHING - master pin

1шт.

12

P2229321

SPACER

- master pin

2шт.

13

P3627881

PIN

- master, conical section, no longer available, order pin P6427816

1шт.

See S.A.T. Information number 47 for mounting.

1шт.

13

P6427816

PIN

- master, cylindrical section

1шт.
