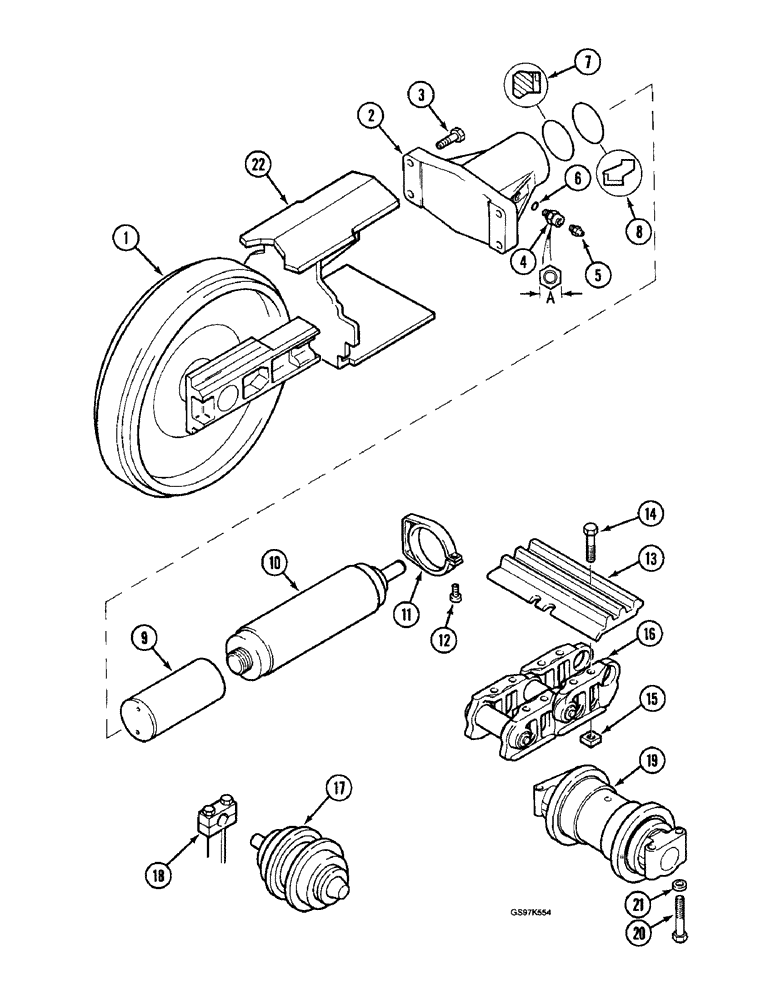

Запчасти Case 220B (5-12) - TRACK ADJSTMT CYLDR & TRACK SHOES,USE W/ ELASTOMR TYP TRCK SHCK ABSRBR,PIN 74595-74597 / 03201 & AFT (11) - TRACKS/STEERING

1

REF

INSTRUCTION

IDLER ASSEMBLY - track, for correct assembly and components see figure 5-10

2шт.

2

P5846287

BODY

BRACKET - mounting, track adjustment, Serial Range: cylinder-idler

2шт.

3

P33878

SCREW

BOLT - hex, 24 mm x 90 mm, adjustment, Serial Range: cylinder-idler

8шт.

P3043319

BLOCK ASSY.

ADAPTER ASSEMBLY - grease fitting, A dimension is 32 mm (1-1/4 inch), if used, Includes: Ref. 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER - grease fitting, order adapter assembly P3043319

1шт.

5

J45801

LUBE NIPPLE,M8 x 1.25

track adjustment M8 x 1.25

1шт.

6

P1230443

O-RING

SEAL- adapter

1шт.

P2643387

ADAPTER

ASSEMBLY - grease fitting, A dimension is 25 mm (1 inch), Start Serial: 03209

2шт.

4

NSS

NOT SOLD SEPARAT

ADAPTER - grease fitting, order adapter assembly P2643387

1шт.

5

J45801

LUBE NIPPLE,M8 x 1.25

track adjustment M8 x 1.25

1шт.

6

P1145268

SEAL

- adapter

1шт.

7

P4246058

SEAL

- piston, inner

2шт.

8

P2046008

WIPER SEAL

SEAL - piston, outer

2шт.

9

P5446272

PISTON

- track adjustment

2шт.

10

P5446278

SHOCK ABSORBER

CYLINDER - track adjustment, elastomer type, component parts not serviced separately

2шт.

11

P3036983

CLAMP

- cylinder

2шт.

12

P0732978Q

SCREW

Hex Soc Hd, M8 x 30, 10.9, Cylinder clamp

2шт.

13

P1642321

TRACK SHOE

SHOE - track, grouser, 500 mm (20 inch) long

102шт.

13

P1842322

TRACK SHOE

SHOE - track, grouser, 700 mm (28 inch) long

102шт.

13

P1742368

TRACK SHOE

SHOE - track, grouser, 850 mm (34 inch) long

102шт.

14

P1033077

SCREW

BOLT - special, track shoe

408шт.

15

P234504

NUT

- special, track shoe

408шт.

16

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see figure 5-118 for chain identification and parts list

2шт.

17

P1842311

ROLLER, TRACK

ROLLER - track carrier, see Figure 5-2

6шт.

18

REF

INSTRUCTION

BRACKET - mounting, carrier roller, see figure 5-2

6шт.

19

REF

INSTRUCTION

ROLLER ASSEMBLY - track, see Figure 5-14 for roller identification and parts list

18шт.

20

P833815

SCREW

BOLT - hex, 24 mm x 120 mm, track, Serial Range: roller-frame

72шт.

21

P4528704

WASHER

SPACER - track roller bolt, 17 mm thick

72шт.

22

P4540360

BLANK-OFF PLUG

GUARD - idler wheel and adjustment cylinder, optional

2шт.
