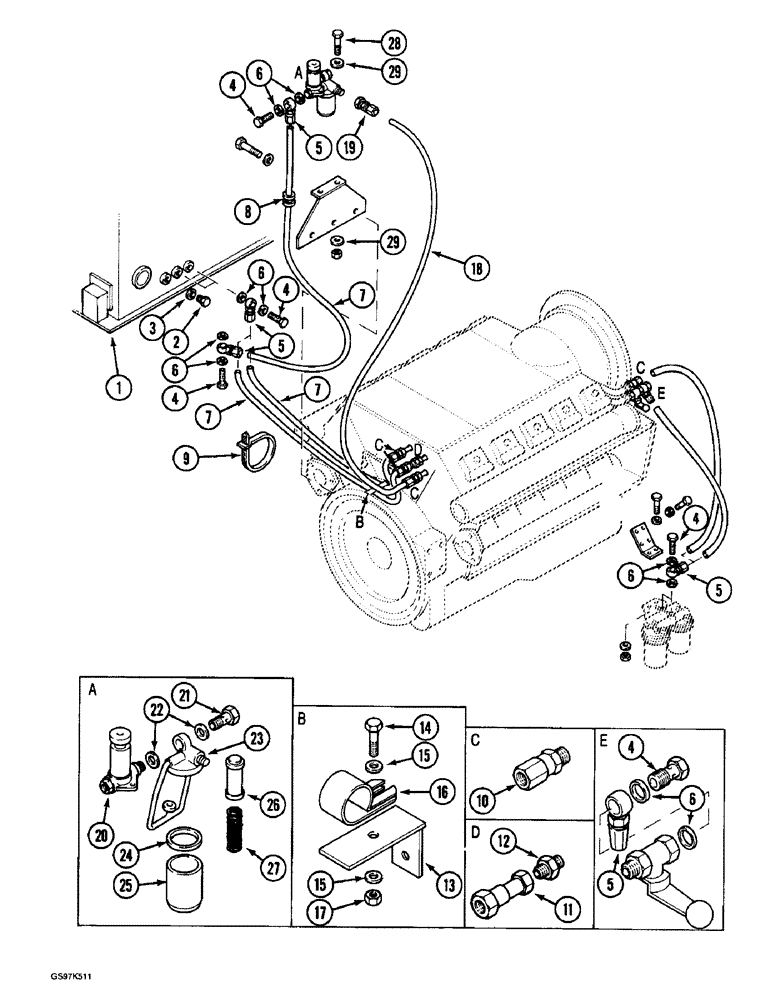

Запчасти Case 220B (3-08) - FUEL LINES AND FITTINGS, P.I.N. 74570 THROUGH 74597, P.I.N. 03201 AND AFTER (03) - FUEL SYSTEM

1

P840249

FUEL TANK

TANK ASSEMBLY - fuel, parts list figure 3-2 or 3-3A

1шт.

2

P1037496

PLUG

- tank

1шт.

3

P28430

COMPOSITE SEAL

GASKET - plug

1шт.

4

P730011

BANJO BOLT

BOLT - fuel hose connector

7шт.

5

P1337052

FITTING

CONNECTOR - fuel hose

7шт.

6

P45239

WASHER, SEALING

GASKET - fuel hose connector

14шт.

7

REF

INSTRUCTION

HOSE - fuel, tank to fuel pump and hand pump, 1600 mm (63 inch) long, cut from bulk hose P3682 below

3шт.

8

P41478

GROMMET

- rubber, fuel hose

1шт.

9

P51946

CLAMP

STRAP - tie, hose

10шт.

10

P4237580

FITTING

CONNECTOR - fuel hose

4шт.

11

P2450177

RETURN PIPE

ADAPTER - tube, fuel hose

1шт.

12

P2337554

FITTING

CONNECTOR - fuel hose

1шт.

13

P4728106

SUPPORT

BRACKET - fuel, Serial Range: hose-engine

1шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Hose clamp Hex, M10 x 30, 8.8

1шт.

15

P3528795

WASHER

SPACER - clamp bolt

2шт.

16

P836985

CLAMP

- fuel return hose

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Clamp mounting bolt (Replaces nut P34598) M10 x 1.5, Cl 8

1шт.

18

REF

INSTRUCTION

HOSE - fuel, hand pump to engine, 700 mm (27-9/16 inch) long, cut from bulk hose P3682 below

1шт.

19

P2337573

FITTING

ADAPTER - fuel lines

1шт.

20

P543528

DEUTZ PART

PUMP - hand, fuel priming, order from Deutz

1шт.

P850526

DEUTZ PART

FILTER ASSEMBLY - hand pump, order from Deutz, Includes: Ref. 21 - 27

1шт.

21

P1533003

DEUTZ PART

BOLT - filter to pump, order from Deutz

1шт.

22

P146093

WASHER, SEALING

SEAL - bolt

2шт.

23

NSS

NOT SOLD SEPARAT

BODY - filter, order filter assembly P850526

1шт.

24

P49669

DEUTZ PART

GASKET - sediment bowl, order from Deutz

1шт.

25

252793A1

SERVICE KIT

BOWL - sediment, filter (Replaces bowl P1050550)

1шт.

26

A43344

FILTER, ELEMENT

SCREEN - filter (Replaces screen P143281)

1шт.

27

P738132

DEUTZ PART

SPRING - filter, order from Deutz

2шт.

28

P733035

SCREW

BOLT - hand pump mount

2шт.

29

P3528799

WASHER

SPACER - pump mounting bolt

4шт.

P3682

TUBE

HOSE - bulk, sold by the meter Continued on next figure

1шт.
