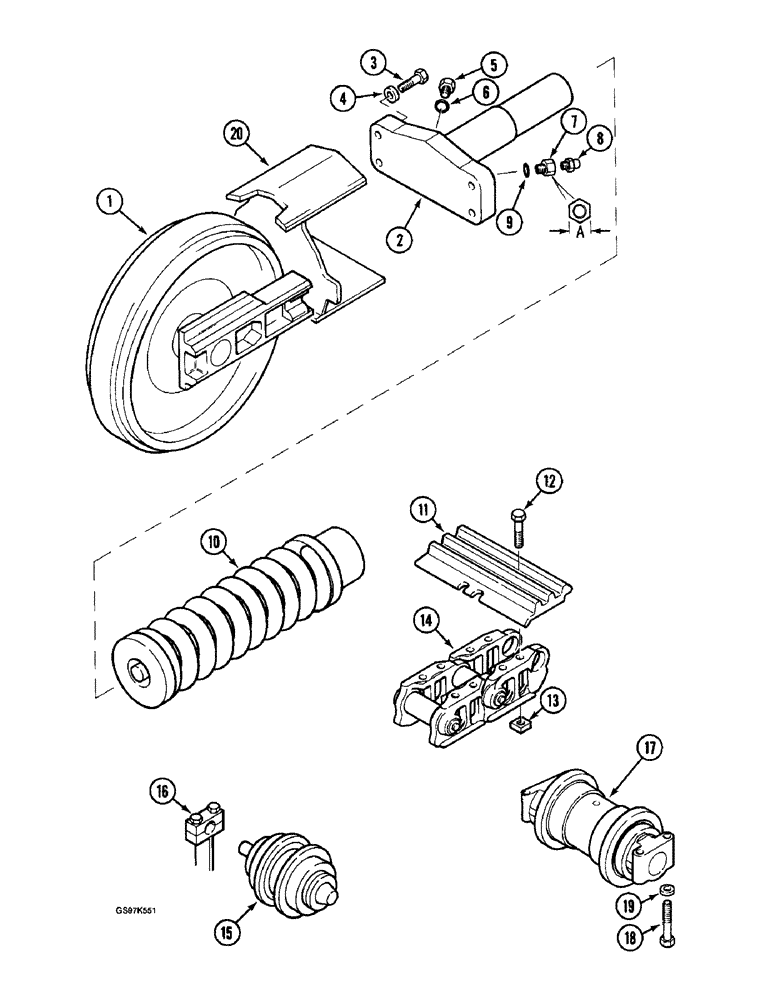

Запчасти Case 220B (5-06) - TRACK ADJUSTMENT CYLINDER & TRACK SHOES, USED W/ SPRING TYPE TRACK SHOCK ABSORBER, PIN 74441- 74594 (11) - TRACKS/STEERING

1

REF

INSTRUCTION

IDLER ASSEMBLY - track, for correct assembly and components see Figures 5-8 and 5-10

2шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - track adjustment, see figures 5-8 and 5-10 for cylinder identification and parts list

2шт.

3

P33879

SCREW

BOLT - hex, 24 mm x 100 mm, adjustment, Serial Range: cylinder-idler

8шт.

4

P4328720

WASHER

SPACER - bolt, 17 mm thick

8шт.

P3337446

PLUG

ASSEMBLY - adjustment cylinder (Replaces plug assembly P2537413), Includes: Ref. 5 - 9

2шт.

5

NSS

NOT SOLD SEPARAT

PLUG - adjustment cylinder, order plug assembly P2537413

1шт.

6

P1145268

SEAL

- plug

1шт.

P3043319

BLOCK ASSY.

ADAPTER ASSEMBLY - grease fitting, A dimension is 32 mm (1-1/4 inch)

2шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER - grease fitting, order adapter assembly P3043319

1шт.

8

J45801

LUBE NIPPLE,M8 x 1.25

track adjustment M8 x 1.25

1шт.

9

P1230443

O-RING

SEAL- adapter

1шт.

P2643387

ADAPTER

ASSEMBLY - grease fitting, A dimension is 25 mm (1 inch)

2шт.

7

NSS

NOT SOLD SEPARAT

ADAPTER - grease fitting, order adapter assembly P2643387

1шт.

8

J45801

LUBE NIPPLE,M8 x 1.25

track adjustment M8 x 1.25

1шт.

9

P1145268

SEAL

- adapter

1шт.

10

P8846270

SHOCK ABSORBER

SPRING - track shock absorber (Replaces spring P6546271)

2шт.

11

P1642321

TRACK SHOE

SHOE - track, grouser, 500 mm (20 inch) long

102шт.

11

P1842322

TRACK SHOE

SHOE - track, grouser, 700 mm (28 inch) long

102шт.

11

P1742368

TRACK SHOE

SHOE - track, grouser, 850 mm (34 inch) long

102шт.

12

P1033077

SCREW

BOLT - special, track shoe

408шт.

13

P234504

NUT

- special, track shoe

408шт.

14

REF

INSTRUCTION

CHAIN ASSEMBLY - track, see Figure 5-16 for chain identification and parts list

2шт.

15

REF

INSTRUCTION

ROLLER ASSEMBLY - track carrier, no service parts available, order complete assembly, see figure 5-2

6шт.

16

REF

INSTRUCTION

BRACKET - mounting, carrier roller, see figure 5-2

6шт.

17

REF

INSTRUCTION

ROLLER ASSEMBLY - track, see Figure 5-14 for roller identification and parts list

18шт.

18

P833815

SCREW

BOLT - hex, 24 mm x 120 mm, track, Serial Range: roller-frame

72шт.

19

P4528704

WASHER

SPACER - track roller bolt, 17 mm thick

72шт.

20

P4540360

BLANK-OFF PLUG

GUARD - idler wheel and adjustment cylinder, optional

2шт.
