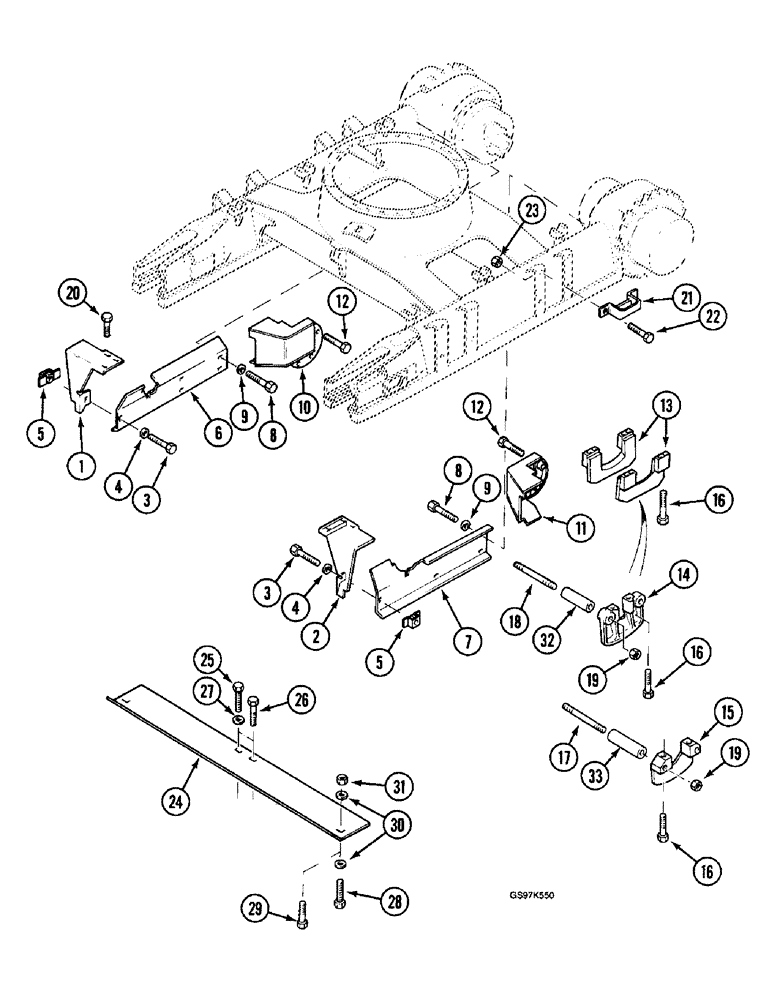

Запчасти Case 220B (5-04) - TUBE GUARDS AT TRACK FRAME, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (11) - TRACKS/STEERING

1

P4625681

HOUSING

GUARD - tube, right-hand front

1шт.

2

P4625682

HOUSING

GUARD - tube, left-hand front

1шт.

3

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- front tube guard, hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

2шт.

4

P3528793

WASHER

SPACER - front tube guard bolt

2шт.

5

P1334578

NUT

- mounting bolt

2шт.

6

P3126301

HOUSING

GUARD - tube, right-hand center

1шт.

7

P3126302

HOUSING

GUARD - tube, left-hand center

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- center tube guard, hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

8шт.

9

P3528793

WASHER

SPACER - center tube guard bolt

8шт.

10

P3940377

HOUSING

GUARD - tube, right-hand rear

1шт.

11

P3940376

HOUSING

GUARD - tube, left-hand rear

1шт.

12

P1532905

SCREW

- hex socket, rear guard

6шт.

13

P2346167

GUIDE

GUARD- track, with four bolt mounting to track frame

8шт.

14

P1604021

GUIDE

GUARD- track, with two bolt mounting to track frame, cast type

8шт.

15

P3254839

GUIDE

GUARD- track, with two bolt mounting to track frame, fabricated type, Includes: Ref. 16

8шт.

16

P833815

SCREW

BOLT - hex, 24 mm x 120 mm, guard to track frame

16-32шт.

17

P2644912

TRUSS ROD

BOLT - tie, inner to outer track guard, 550 mm (21-5/8 inch) long, used with fabricated type guard (Replaces bolt P2527772)

8шт.

18

P2644911

TIE-ROD

BOLT - tie, inner to outer track guard, 505 mm (19-7/8 inch) long, used with cast type guard (Replaces bolt P2527770)

8шт.

19

P34125

NUT

- hex, 30 mm

16шт.

20

P33836

SCREW

BOLT - front guard, upper

2шт.

21

P1304073

STEP

- assist, at track frame

4шт.

22

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

step to frame, replaces bolt P133805 Hex, M16 x 60, 8.8

8шт.

23

832-10416

NUT,M16 x 2, Cl 8

NUT, LOCK, , Step bolt (Replaces nut P34562) M16 x 2, Cl 8

8шт.

24

P4825669

HOOD

GUARD - hydraulic swivel

1шт.

25

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

If used Hex, M12 x 35, 8.8, Full Thd

2шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, if used (Replaces bolt P33873)

2шт.

27

P3528793

WASHER

SPACER - bolt, 8 mm thick, used with 35 mm long bolt, Ref. 25

2шт.

28

P933819

SCREW

BOLT - hex, 12 mm - 1.75 x 55 mm, full thread, if used

2шт.

29

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 40 mm, if used (Replaces bolt P533837)

2шт.

30

P3528793

WASHER

SPACER - bolt, 8 mm thick, used with 55 mm long bolt, Ref. 28

4шт.

31

P834549

SAFETY NUT

NUT - hex, self-locking, 12 mm

2шт.

32

P2229394

SPACER

- cast type guard, Start Serial: 03208

8шт.

33

P2229393

SPACER

- fabricated type guard, Start Serial: 03208

8шт.
