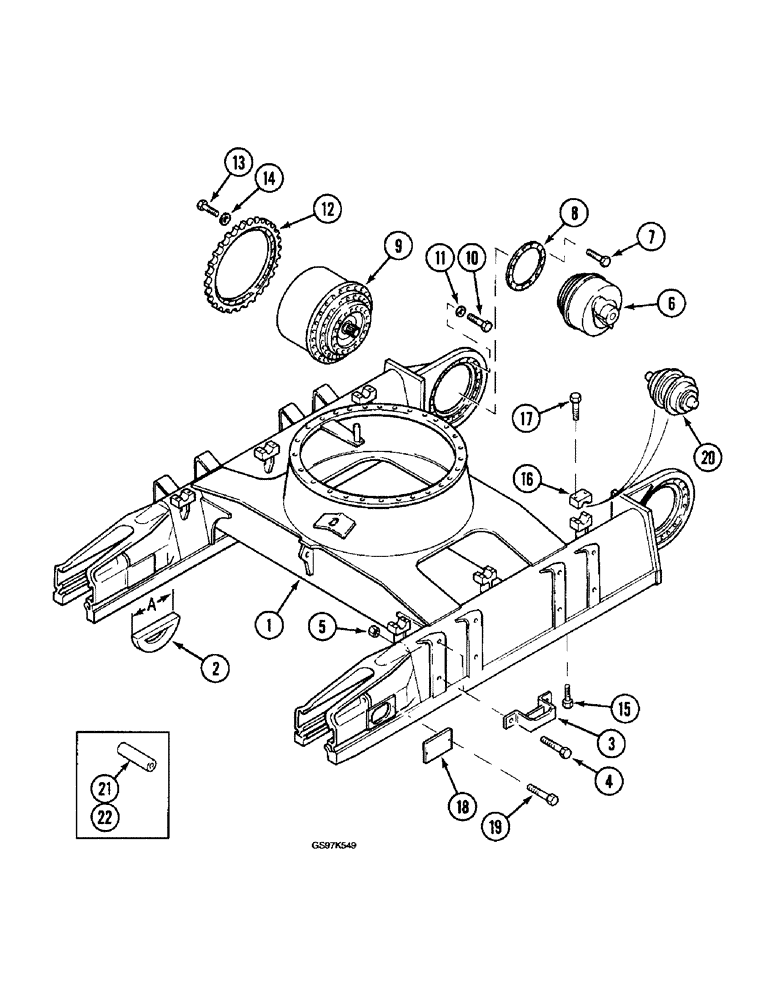

Запчасти Case 220B (5-02) - TRACK FRAME AND UNDERCARRIAGE, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (11) - TRACKS/STEERING

1

P253765

FRAME

ASSEMBLY - track, excavator, Includes: Ref. 2

1шт.

2

P2527765

TRUSS ROD

GUIDE - track chain, welded to track frame, A dimension is 520 mm (20-1/2 inch) long, (Replaces guide P1304048), Serial Range: 74441-74597

4шт.

2

P2527765

TRUSS ROD

GUIDE - track chain, welded to track frame, A dimension is 520 mm (20-1/2 inch) long, (Replaces guide P1304048), Serial Range: 03201-03207

4шт.

2

P1304050

WEB

GUIDE - track chain, welded to track frame, A dimension is 430 mm (17 inch) long, Serial Range: 74441-74597

4шт.

2

P1304050

WEB

GUIDE - track chain, welded to track frame, A dimension is 430 mm (17 inch) long, Serial Range: 03201-03207

4шт.

2

REF

INSTRUCTION

GUARD - track chain, not shown, see figure 5-4, Start Serial: 03208

8шт.

3

P1304073

STEP

- assist, at track frame

4шт.

4

P133805

SCREW

BOLT -, Serial Range: step-frame

8шт.

5

832-10416

NUT,M16 x 2, Cl 8

NUT, LOCK, , Step bolt (Replaces nut P34562) M16 x 2, Cl 8

8шт.

6

P2543754

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - track drive, parts list figures 6-4 and 6-6

2шт.

7

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

Mounting, Drive motor to final drive transmission Hex, M12 x 45, 8.8

36шт.

8

P7546040

SEAL

GASKET - drive motor to final drive transmission

2шт.

9

P1938972

REDUCER

TRANSMISSION ASSEMBLY - final drive, parts list figure 6-2

2шт.

10

P1633807

SCREW

BOLT - final drive transmission to track frame

48шт.

11

P4328719

WASHER

SPACER - final drive transmission bolt

48шт.

12

P3739301

DRIVE SPROCKET

SPROCKET - drive

2шт.

13

P1633866

SCREW

BOLT - drive sprocket to final drive transmission

36шт.

14

P4628733

WASHER

SPACER - drive sprocket bolt

36шт.

15

P32725

SCREW

BOLT - track frame, Serial Range: 74441-74597

32шт.

15

P32725

SCREW

BOLT - track frame, Serial Range: 03201-03207

32шт.

16

P4620371

CAP

CLAMP - carrier roller, order clamp P5120386, Ref. 16 and two P233812 bolts, Ref. 17, Serial Range: 74441-74597

6шт.

16

P4620371

CAP

CLAMP - carrier roller, order clamp P5120386, Ref. 16 and two P233812 bolts, Ref. 17, Serial Range: 03201-03214

6шт.

16

P5120386

CAP

CLAMP - carrier roller, Start Serial: 03215

6шт.

17

P732946

SCREW

BOLT - hex socket, 16 mm x 70 mm, class 10.9

12шт.

17

P233812

SCREW

BOLT - hex socket, 16 mm x 90 mm, class 10.9, Serial Range: -03215

12шт.

18

P2322937

PLATE

- cover, track frame, Start Serial: 74556

2шт.

19

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873), Start Serial: 74556

4шт.

20

P1842311

ROLLER, TRACK

ROLLER - track, carrier, upper

6шт.

21

P2229393

SPACER

- fabricated type guard

1шт.

22

P2229394

SPACER

- cast type guard

1шт.
