Запчасти Case 220B (9-122) - DECALS AND MANUAL BOX, P.I.N. 03201 AND AFTER (09) - CHASSIS

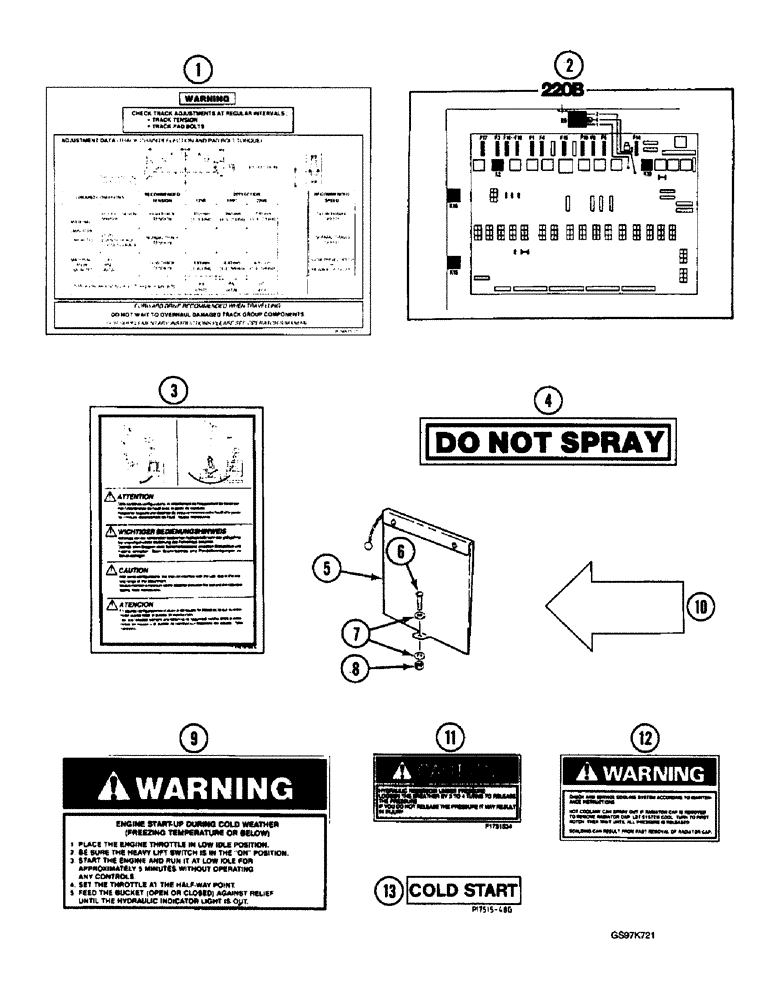

Схема запчастей Case 220B - (9-122) - DECALS AND MANUAL BOX, P.I.N. 03201 AND AFTER (09) - CHASSIS

Артикул

Название

Примечание

Количество

1

P1651571

DECAL

- Warning, check track adjustments

1шт.

2

P1451583

DECAL

- fuse and magnetic switch location, in electrical box

1шт.

3

P1451586

DECAL

- Caution, tool interference with cab

1шт.

4

P351543

DECAL

- do not spray

1шт.

5

P1244243

KIT

BOX - unit manuals, if used

1шт.

6

P32532

SCREW

- slotted, 4 mm x 30 mm, if used

1шт.

7

P34603

WASHER

- flat, 4 mm, if used

2шт.

8

P34107X

NUT,M4, Cl 8

- hex, 4 mm, if used

1шт.

9

P1751533

DECAL

- Warning, engine start up during cold weather

1шт.

10

P1751566

DECAL

- travel direction

2шт.

11

P1751534

DECAL

- Caution, hydraulic reservoir under pressure

1шт.

12

P1751549

DECAL

- Warning, check and service cooling system

1шт.

13

P1651570

DECAL

- cold start

1шт.

Выбрано товаров: 13
