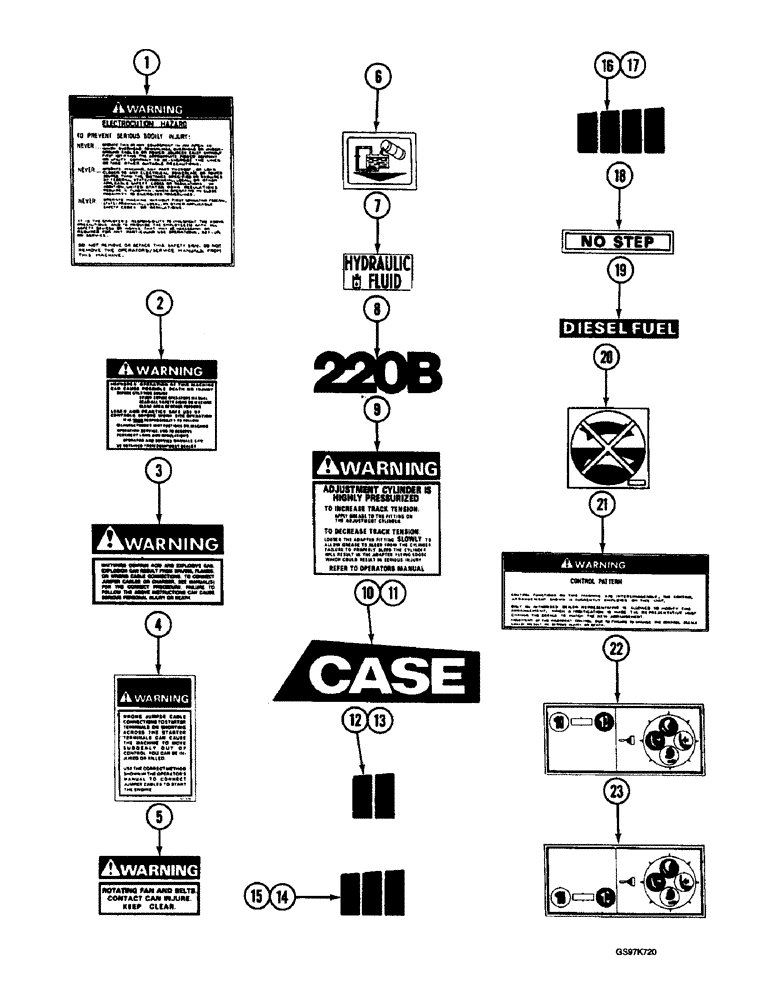

Запчасти Case 220B (9-120) - DECALS, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

P6147566

DECAL

- Warning, electrocution hazard

1шт.

2

P6147565

DECAL

- Warning, improper operation

1шт.

3

321-6714

DECAL

- Warning, batteries contain acid (Replaces decal P251593)

1шт.

4

P251592

DECAL

- Warning, wrong jumper cable connections

1шт.

5

P251594

DECAL

- Warning, rotating fan and belts

2шт.

6

P1451593

DECAL

- hydraulic system

1шт.

7

P251591

DECAL

- hydraulic fluid

1шт.

8

P251587

ADHESIVE

DECAL - 220B, designation

2шт.

9

P251597

DECAL

- Warning, adjustment cylinder is highly pressurized

2шт.

10

P1651558

DECAL

- Case, right-hand side of boom

1шт.

11

P1651557

DECAL

- Case, left-hand side of boom

1шт.

12

P1651560

DECAL

- two treads, right-hand side of boom

1шт.

13

P1651559

DECAL

- two treads, left-hand side of boom

1шт.

14

P1451554

DECAL

- three treads, right-hand side of boom

1шт.

15

P1451550

DECAL

- three treads, left-hand side of boom

1шт.

16

P1451553

DECAL

- four treads, right-hand side of boom

1шт.

17

P1451549

DECAL

- four treads, left-hand side of boom

1шт.

18

P251596

DECAL

- no step

2шт.

19

P251595

DECAL

- diesel fuel

1шт.

20

P2247581

DECAL

- house lock location

1шт.

21

P6147567

DECAL

- Warning, control pattern, no longer available

1шт.

22

S242817

DECAL

- control pattern A, right-hand side, optional

1шт.

22

S242830

DECAL

- control pattern C, right-hand side, optional

1шт.

22

P7947567

DECAL

- control pattern D, right-hand side, standard

1шт.

23

S242818

DECAL

- control pattern A, left-hand side, optional

1шт.

23

S242829

DECAL

- control pattern C, left-hand side, optional

1шт.

23

P7947568

DECAL

- control pattern D, left-hand side, standard

1шт.
