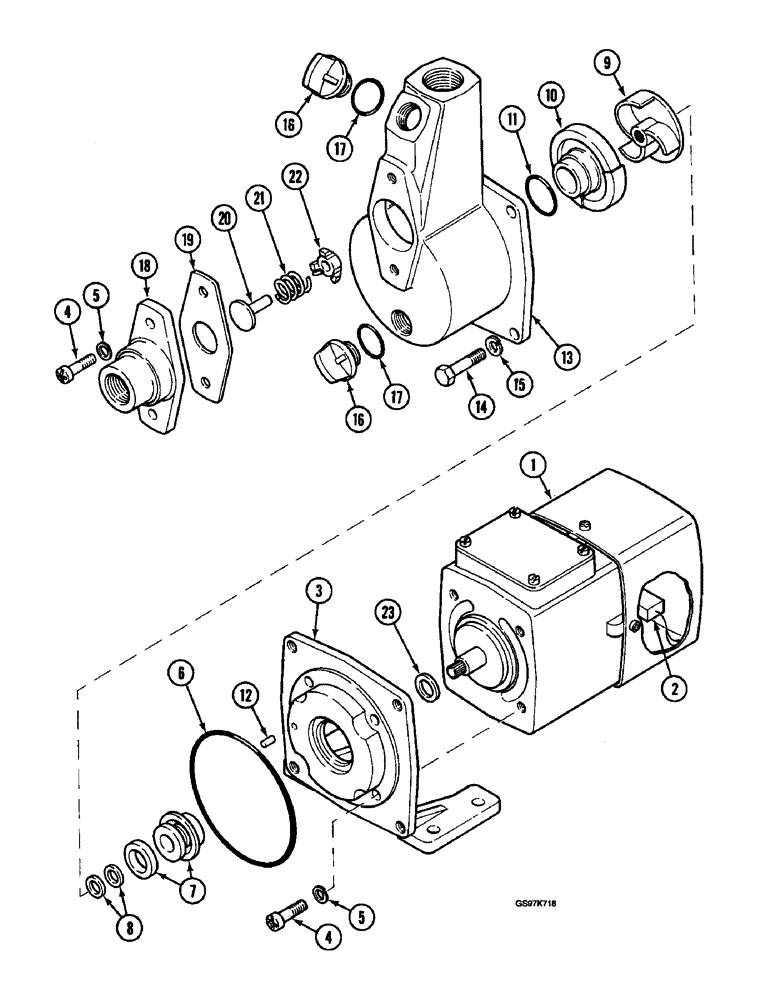

Запчасти Case 220B (9-116) - FUEL PUMP, IF USED (09) - CHASSIS

P1443552

PUMP

ASSEMBLY - fuel transfer, Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - transfer pump, includes housing, shaft and covers, order pump assembly P1443552

1шт.

2

P2343238

BRUSH, COMMUTATOR

CAPACITOR - electrical

2шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - mounting, motor, order pump assembly P1443552

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - motor to bracket and adapter to pump housing, order pump assembly P1443552

6шт.

5

NSS

NOT SOLD SEPARAT

WASHER - lock, mounting screw, order pump assembly P1443552

6шт.

6

P1630462

O-RING

- pump, Serial Range: cover-bracket

1шт.

7

P3749691

KIT

SEAL - includes seals and retainer

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - shaft, small, order pump assembly P1443552

2шт.

9

P2343285

FAN

IMPELLER - pump

1шт.

10

P3840374

HOUSING

STATOR - pump

1шт.

11

P1630463

O-RING

-, Serial Range: stator-cover

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - dowel, cover to bracket, order pump assembly P1443552

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - pump, order pump assembly P1443552

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT - hex, pump cover to mounting bracket, order pump assembly P1443552

4шт.

15

NSS

NOT SOLD SEPARAT

WASHER - lock, pump cover bolt, order pump assembly P1443552

4шт.

16

P1737436

PLUG

- pump cover

2шт.

17

P1630464

O-RING

- cover plug

2шт.

18

NSS

NOT SOLD SEPARAT

ADAPTER - pump cover, order pump assembly P1443552

1шт.

19

NSS

NOT SOLD SEPARAT

GASKET - adapter to front cover, order pump assembly P1443552

1шт.

20

P1843387

VALVE POPPET

VALVE - check

1шт.

21

P38249

SPRING

- check valve

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL - check valve, order pump assembly P1443552

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL - shaft, large, order pump assembly P1443552

1шт.
