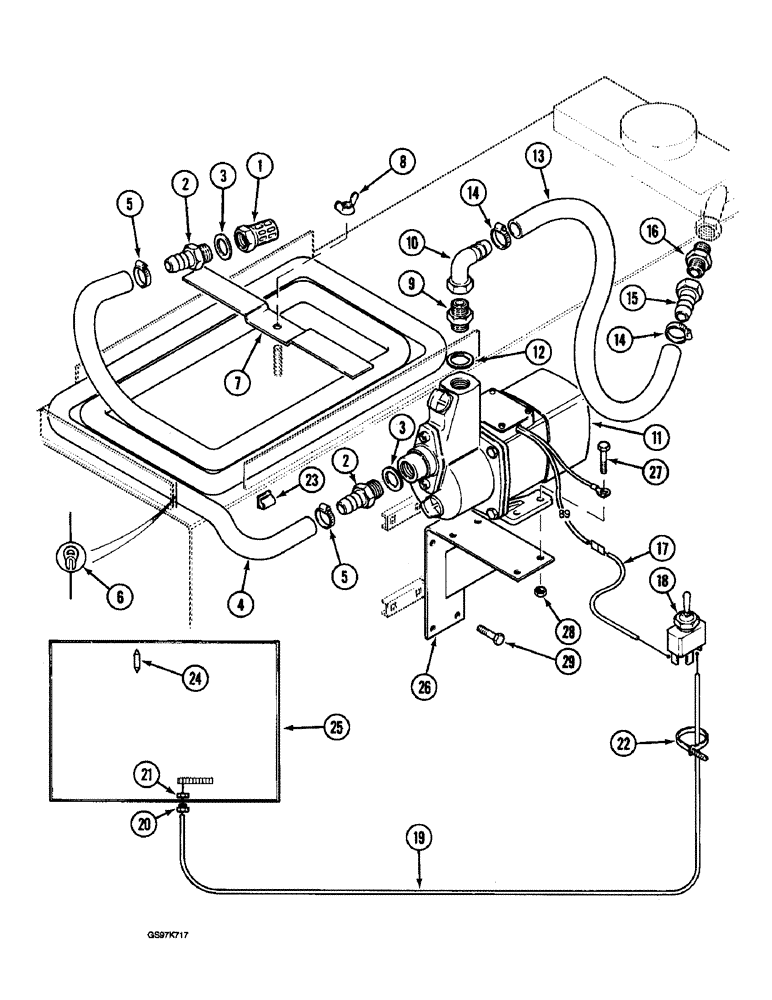

Запчасти Case 220B (9-114) - FUEL TRANSFER PUMP SYSTEM, IF USED (09) - CHASSIS

1

P2843226

VALVE POPPET

FILTER - suction, fuel hose

1шт.

2

P3237511

FITTING

ADAPTER - filter and pump to suction hose

2шт.

3

P245217

WASHER, SEALING

SEAL - adapter

2шт.

4

REF

INSTRUCTION

HOSE - 400 mm (157-1/2 inch) long, suction, cut from bulk hose P1103603 below

1шт.

5

P36998

COLLAR CLAMP

CLAMP - suction hose

2шт.

6

REF

INSTRUCTION

GUARD - 100 mm (4 inch) long, hose, cut from bulk seal P3109 below

1шт.

7

P1426146

PLATE

BRACKET - hold down, hose

1шт.

8

P34409B

NUT, WING

NUT - wing, hold down bracket

1шт.

9

P3037534

UNION

ADAPTER - pump to pressure hose

1шт.

10

P1647118

PIPE

ELBOW - pump to pressure hose

1шт.

11

P1443552

PUMP

ASSEMBLY - fuel transfer, parts list Figure 9-116

1шт.

12

P245217

WASHER, SEALING

SEAL -, Serial Range: adapter-pump

1шт.

13

REF

INSTRUCTION

HOSE - 500 mm (19-3/4 inch) long, pressure, cut from bulk hose P1103609 below

1шт.

14

P36902

COLLAR CLAMP

CLAMP -, Serial Range: hose-adapters

2шт.

15

P737608

PIPE

ADAPTER - hose, at clamp

1шт.

16

P37551

UNION

ADAPTER - hose, at fuel tank

1шт.

17

P5147267

CABLE

WIRE - electrical, Serial Range: pump-switch

1шт.

18

P641610

SWITCH

- toggle, pump motor

1шт.

P8647284

CABLE

HARNESS ASSEMBLY - electrical, switch to electrical box, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

HARNESS - electrical, switch to electrical box, order harness assembly P8647284

1шт.

20

P141430

GLAND

BUSHING - harness, at electrical box

1шт.

21

P141438

NUT

- bushing, harness to electrical box

1шт.

22

P51946

CLAMP

STRAP - tie, harness

1шт.

23

P1241413

CLIP,ELECTRICAL

CLIP - retainer, electrical, Serial Range: harness-tank

5шт.

24

926644C1

FUSE,A16, Red

- circuit, 16 amp (Replaces fuse P841294)

1шт.

25

REF

INSTRUCTION

BOX - electrical, control, see Figures 4-56 - 4-66 for correct electrical box

1шт.

26

P1228258

SUPPORT

BRACKET - mounting, pump to fuel tank

1шт.

27

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8

4шт.

28

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

4шт.

29

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

4шт.

P1103603

PIPE

HOSE - bulk, sold by the meter

1шт.

P3109

GASKET

SEAL - bulk, sold by the meter

1шт.

P1103609

LARGE HOSE

HOSE - bulk, sold by the meter

1шт.
