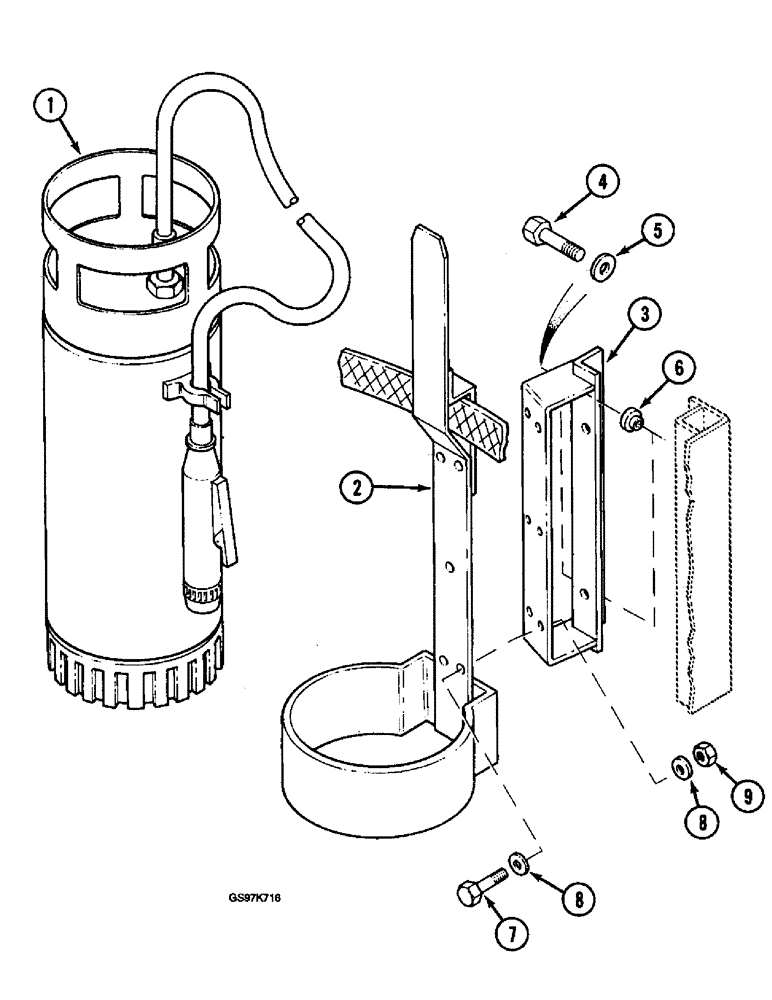

Запчасти Case 220B (9-112) - FIRE EXTINGUISHER, IF USED (09) - CHASSIS

1

P2843289

FIRE EXTINGUISHER

EXTINGUISHER - fire, excavator

1шт.

2

P7428202

SUPPORT

HOLDER - fire extinguisher

1шт.

3

P5628281

SUPPORT

BRACKET - mounting, holder

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

(Replaces bolt P33815) Hex, M8 x 20, 8.8

4шт.

5

P3528794

WASHER

SPACER - mounting bolt, 6 mm thick

4шт.

6

P234587

NUT

RETAINER - bolt, sleeve type, 8 mm

4шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

(Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

4шт.

8

P34611

WASHER

- flat, 10 mm

8шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.
