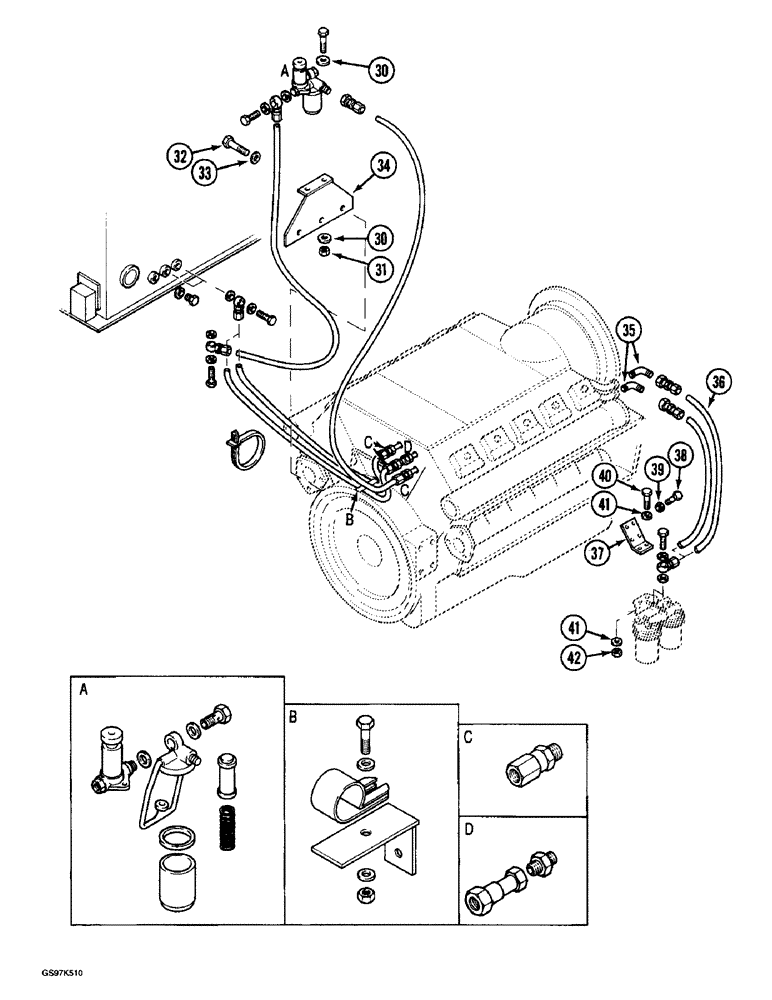

Запчасти Case 220B (3-06) - FUEL LINES AND FITTINGS, P.I.N. 74441 THROUGH 74569 (CONT) (03) - FUEL SYSTEM

30

P3528799

WASHER

SPACER - pump mounting bolt

4шт.

31

832-10406

NUT,M6 x 1, Cl 8

LOCK, , Pump mounting bolt (Replaces nut P234513) M6 x 1, Cl 8

2шт.

32

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- bracket mounting bolt, hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

2шт.

33

P3528793

WASHER

SPACER - bracket mounting bolt

2шт.

34

P4728107

SUPPORT

BRACKET - hand pump and, Serial Range: filter-engine

1шт.

35

P37075

ELBOW

- 90 degree

2шт.

36

REF

INSTRUCTION

HOSE - fuel, engine to fuel pump, 600 mm (23-5/8 inch) long, cut from bulk hose P1103601 below

2шт.

37

P2226708

SUPPORT

BRACKET - filter mounting, no longer available

1шт.

38

P933820

SCREW

BOLT - bracket mounting

4шт.

39

P3528794

WASHER

SPACER - bracket mounting bolt

4шт.

40

P933820

SCREW

BOLT - filter mounting

2шт.

41

P3528793

WASHER

SPACER - filter mounting bolt

4шт.

42

832-10412

NUT,M12 x 1.75, Cl 8

NUT, LOCK, , Filter mounting bolt (Replaces nut P34596) M12 x 1.75, Cl 8

2шт.

P1103601

PIPE

HOSE - bulk, sold by the meter

1шт.
