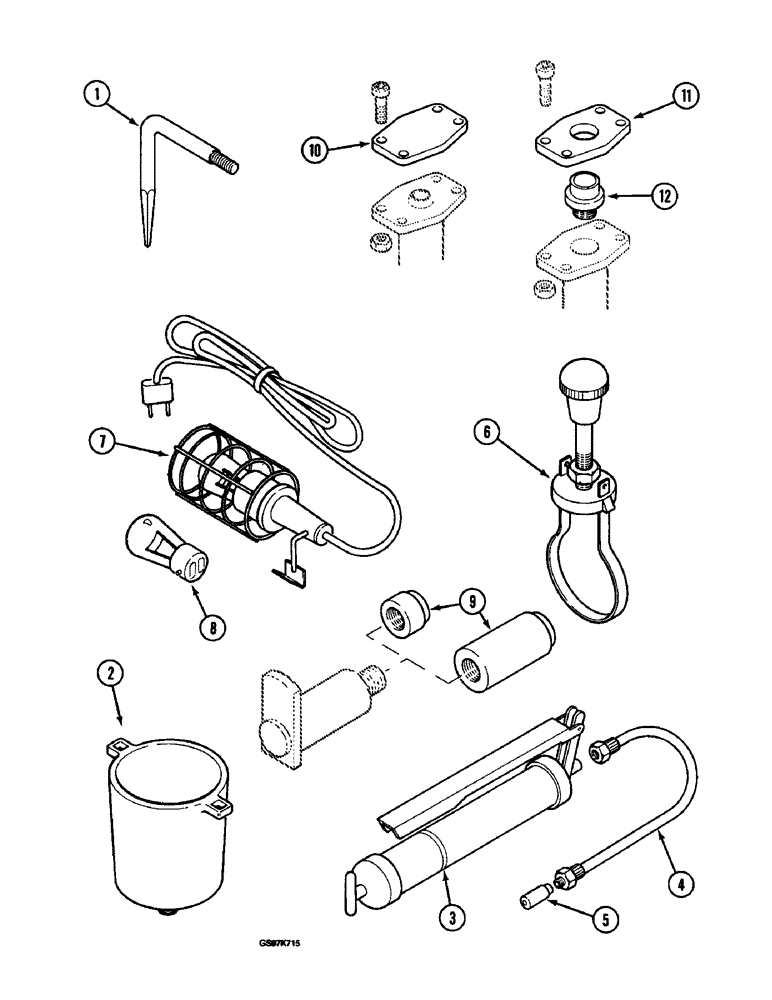

Запчасти Case 220B (9-110) - TOOLS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AFTER, STANDARD TOOL KIT (09) - CHASSIS

1

P52025

PLATE,SMALL SQUARE

HANDLE - square-end, hydraulic reservoir suction screen filter shutoff

1шт.

2

P840279

FUNNEL

- hydraulic reservoir oil, optional tools

1шт.

P44433

PUMP

ASSEMBLY - grease, optional tools, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

PUMP - grease, order pump assembly P44433, optional tools

1шт.

4

PP31983

HOSE

- grease pump, optional tools

1шт.

5

P144420

CLASP

CAP - grease pump hose, optional tools

1шт.

6

P2644482

KEY

WRENCH - filter, strap type, optional tools

1шт.

7

P244462

LAMP

- inspection, optional tools

1шт.

8

P40585

LAMP

BULB - 24 volt, inspection lamp, optional tools

1шт.

9

P344410

TRANSMISSION SLEEVE

SLEEVE - threaded, arm to boom pin, 90 mm (3.54 inch) diameter, optional tools

1шт.

9

P929941

CONE

SLEEVE - threaded, boom to turntable pin, 100 mm (3.94 inch) diameter, optional tools

1шт.

10

P1937744

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 17 mm (0.67 inch) diameter, optional tools

1шт.

11

P1224246

SHIN

PLATE - cover, hydraulic tube plug, 17 mm (0.67 inch) diameter, optional tools

1шт.

12

P1627863

BLANK-OFF PLUG

PLUG - hydraulic tube, 17 mm (0.67 inch) diameter, optional tools

1шт.

10

P1337777

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 21 mm (0.83 inch) diameter, optional tools

1шт.

11

P724184

SHIN

PLATE - cover, hydraulic tube plug, 21 mm (0.83 inch) diameter, optional tools

1шт.

12

P1627864

BLANK-OFF PLUG

PLUG - hydraulic tube, 21 mm (0.83 inch) diameter, optional tools

1шт.

10

P1337778

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 27 mm (1.06 inch) diameter, optional tools

1шт.

11

P724185

SHIN

PLATE - cover, hydraulic tube plug, 27 mm (1.06 inch) diameter, optional tools

1шт.

12

P1627865

BLANK-OFF PLUG

PLUG - hydraulic tube, 27 mm (1.06 inch) diameter, optional tools

1шт.

10

P1937727

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 34 mm (1.34 inch) diameter, optional tools

1шт.

11

P1324196

SHIN

PLATE - cover, hydraulic tube plug, 34 mm (1.34 inch) diameter, optional tools

1шт.

12

P537716

BLANK-OFF PLUG

PLUG - hydraulic tube, 34 mm (1.34 inch) diameter, optional tools

1шт.

10

P1337779

BLANK-OFF PLUG

PLATE - cover, hydraulic tube, 42 mm (1.65 inch) diameter, optional tools

1шт.

11

P724186

SHIN

PLATE - cover, hydraulic tube plug, 42 mm (1.65 inch) diameter, optional tools

1шт.

12

P1627866

BLANK-OFF PLUG

PLUG - hydraulic tube, 42 mm (1.65 inch) diameter, optional tools

1шт.

P1244245

BOX

KIT - seal, tapered face

1шт.

P1630469

SET OF GASKET

KIT - seal, metric O-ring

1шт.
