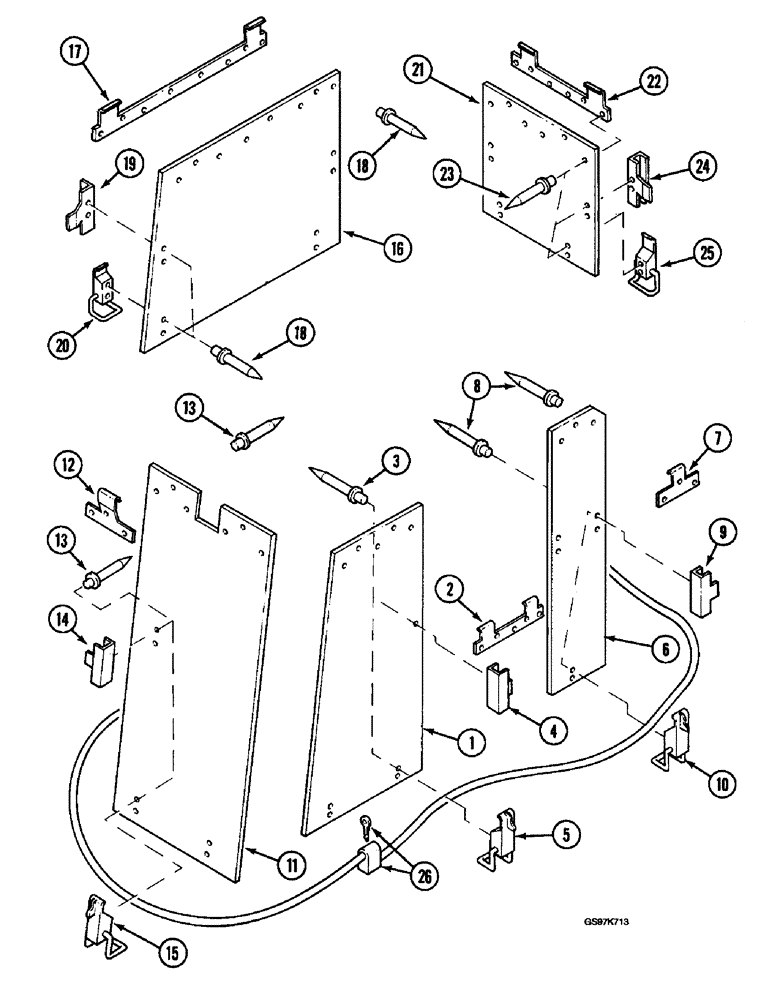

Запчасти Case 220B (9-106) - CAB OPTIONAL ANTI-VANDALISM GUARDS, GUARDS & LOCKING PARTS, P.I.N. 74441 - 74597, P.I.N. 03201 & AFT (09) - CHASSIS
№
Артикул
Название
Примечание
Количество
P2047019
PROTECTOR
GUARD ASSEMBLY - cab door window, Includes: Ref. 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
GUARD - door window, order guard assembly P2047019
1шт.
2
P3226115
SWIVEL HOOK
BRACET - top
1шт.
3
P35418
RIVET
- pop, 8 mm x 17 mm
13шт.
4
P2425963
HANDLE
BRACKET - side
2шт.
5
P3036975
CLAMP
LATCH - guard, lower
2шт.
P2047017
PROTECTOR
GUARD ASSEMBLY - cab left-hand side window, rear, Includes: Ref. 6 - 10
1шт.
6
NSS
NOT SOLD SEPARAT
GUARD - left-hand side window, rear, order guard assembly P2047017
1шт.
7
P3226118
SWIVEL HOOK
BRACKET - top
1шт.
8
P35418
RIVET
- pop, 8 mm x 17 mm
9шт.
9
P3326314
HANDLE
BRACKET - side
2шт.
10
P3036975
CLAMP
LATCH - guard, lower
1шт.
P2047018
PROTECTOR
GUARD ASSEMBLY - cab windshield, Includes: Ref. 11 - 15
1шт.
11
NSS
NOT SOLD SEPARAT
GUARD - windshield, order guard assembly P2047018
1шт.
12
P3326313
SWIVEL HOOK
BRACKET - top
2шт.
13
P35418
RIVET
- pop, 8 mm x 17 mm
14шт.
14
P2425963
HANDLE
BRACKET - side
2шт.
15
P3036975
CLAMP
LATCH - guard, lower
2шт.
P2047016
PROTECTOR
GUARD ASSEMBLY - cab right-hand side window, Includes: Ref. 16 - 20
1шт.
16
NSS
NOT SOLD SEPARAT
GUARD - right-hand side window, order guard assembly P2047016
1шт.
17
P3226116
SWIVEL HOOK
BRACKET - top
1шт.
18
P35418
RIVET
- pop, 8 mm x 17 mm
16шт.
19
P3326314
HANDLE
BRACKET - side
2шт.
20
P3036975
CLAMP
LATCH - guard, lower
2шт.
P2047015
PROTECTOR
GUARD ASSEMBLY - cab rear window, Includes: Ref. 21 - 25
1шт.
21
NSS
NOT SOLD SEPARAT
GUARD - rear window, order guard assembly P2047015
1шт.
22
P3226117
SWIVEL HOOK
BRACKET - top
1шт.
23
P35418
RIVET
- pop, 8 mm x 17 mm
14шт.
24
P3326314
HANDLE
BRACKET - side
2шт.
25
P3036975
CLAMP
LATCH - guard, lower
2шт.
26
P1352022
PADLOCK
CABLE AND LOCK ASSEMBLY - cab window guards
1шт.
27
P1054922
KIT
- vandal guard, includes key P503650, Ref. 28, not shown
1шт.
28
P503650
KEY
- vandal guard, not shown
1шт.
Выбрано товаров: 33
