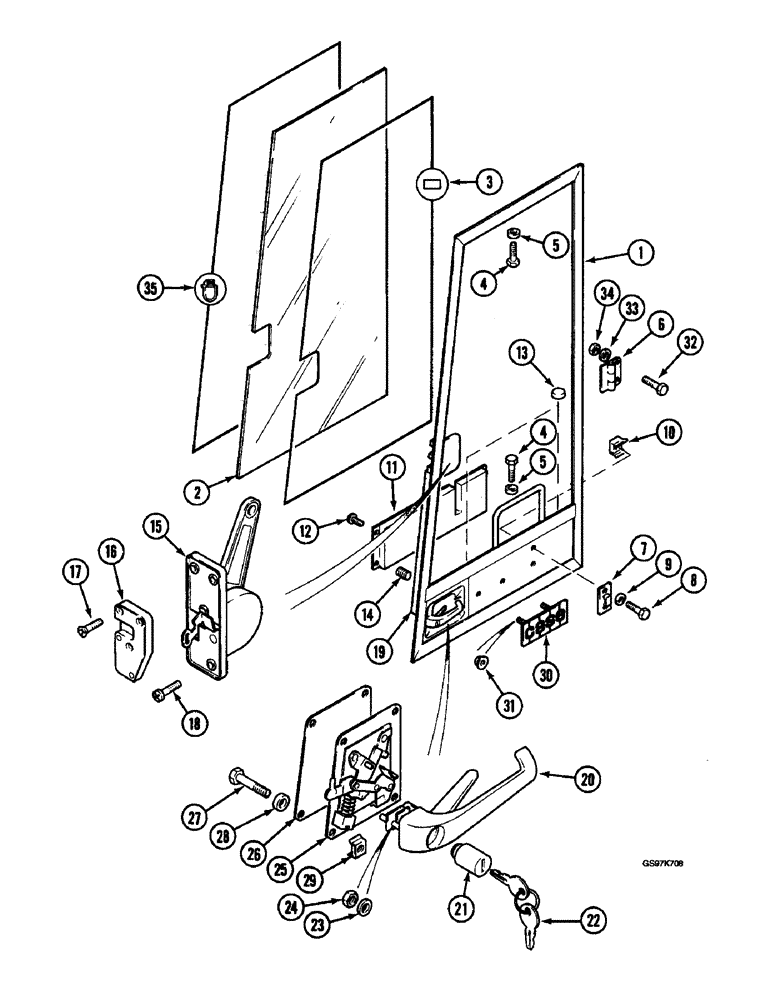

Запчасти Case 220B (9-096) - CAB DOOR, P.I.N. 03202 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from figures 9-74 and 9-76, Includes: Ref. 1 - 35

1шт.

P8043810

DOOR

ASSEMBLY - cab, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab door, order door assembly P8043810

1шт.

2

P1347056

GLASS

- cab door

1шт.

3

P203104

PACKAGE, REPAIR

SEAL - glass

1шт.

4

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

5

P4328728

WASHER

SPACER - bolt

2шт.

6

P736667

HINGE

-, Serial Range: door-cab

3шт.

7

P7128246

CATCH PLATE

STRIKER - door open latch

1шт.

8

P1133803

SCREW

BOLT - latch striker

2шт.

9

P3528799

WASHER

SPACER - bolt

2шт.

10

P1634573

NUT

- clip type, latch bolt

2шт.

11

P2741422

LARGE PLATE

INSULATION - lower door

1шт.

12

P2036971

BUTTON

RETAINER - insulation

6шт.

13

P741441

SPACER

PLUG - door frame

2шт.

14

P1037442

BLANK-OFF PLUG

STOP - door

1шт.

15

P852067

MECHANISM

LATCH - door, inside

1шт.

16

P852053

CATCH PLATE

PLATE - striker

1шт.

17

P32411

SCREW,Cross, M8 x 45, 10.9

Striker plate Cross, M8 x 45, 10.9

3шт.

18

P32570

SCREW

- door latch

1шт.

19

P2130617

THREADED ROD

ROD - inside latch to outside handle

1шт.

P1352034

HANDLE

ASSEMBLY - cab, outside, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

HANDLE - cab, outside, order handle assembly P1352034

1шт.

21

P1352045

LOCK, CYLINDER

CYLINDER ASSEMBLY - door lock

1шт.

22

P1352009

KEY

- door lock, set of two

1шт.

23

P35001

WASHER

- flat, 6 mm

2шт.

24

832-10406

NUT,M6 x 1, Cl 8

LOCK, (Replaces nut P234513) M6 x 1, Cl 8

2шт.

25

P852055

MECHANISM

PLATE - door lock

1шт.

26

P1325374

DOOR COVER

PLATE - lock cover

1шт.

27

P1133803

SCREW

BOLT - lock, Serial Range: plate-door

4шт.

28

P3528799

WASHER

SPACER - bolt

4шт.

29

P1634573

NUT

- clip type, plate bolt

4шт.

30

321-4739

EMBLEM

- Case, on cab door (Replaces emblem P1651599)

1шт.

31

P2434587

NUT

- hex, self-locking, emblem retaining

2шт.

32

P32415

SCREW

BOLT - door hinge

6шт.

33

P34611

WASHER

- flat, 10 mm

6шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

6шт.

35

P7146043

DOOR SEAL

SEAL -, Serial Range: door-cab

1шт.
