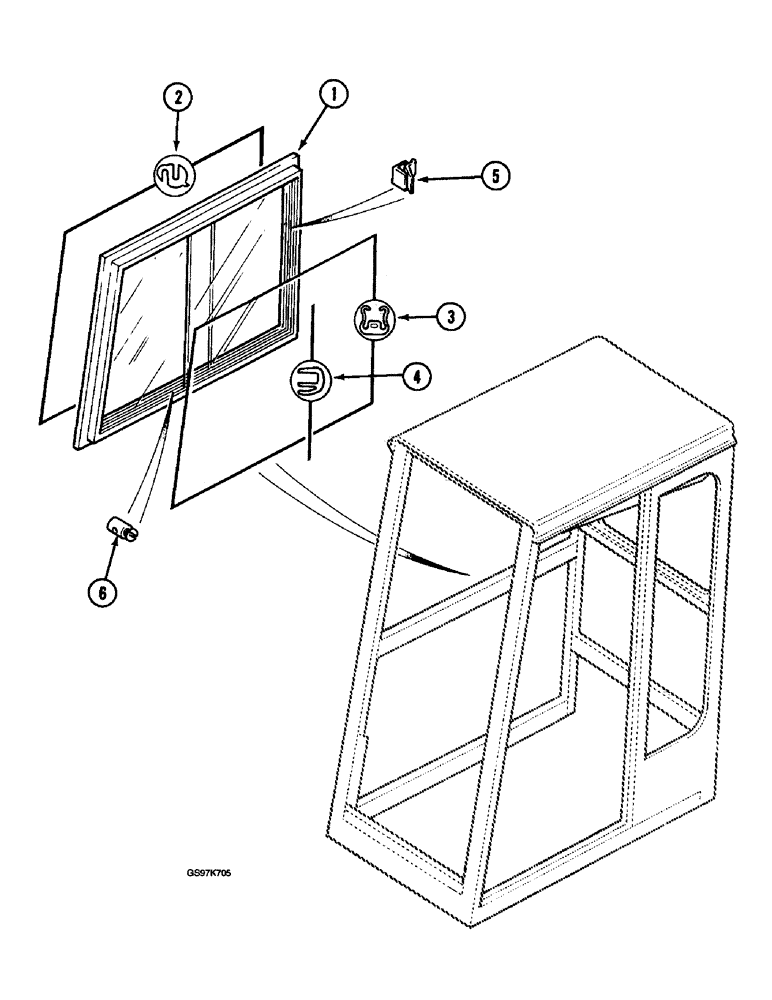

Запчасти Case 220B (9-090) - CAB, SLIDING WINDOW, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued from figures 9-74 and 9-76, Includes: Ref. 1 - 6

1шт.

P2047008

WINDOW

ASSEMBLY - sliding, right-hand cab side, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

WINDOW - sliding, cab, order window assembly P2047008

1шт.

2

REF

INSTRUCTION

SEAL - window to cab frame, 4200 mm (165-3/8 inch) long cut from bulk seal P1303186 below

1шт.

3

REF

INSTRUCTION

SEAL - glass, channel, 4200 mm (165-3/8 inch) long, cut from bulk seal P1303188 below

1шт.

4

REF

INSTRUCTION

SEAL - between sliding glass, 820 mm (32-1/4 inch) long, cut from bulk seal P1303187 below

1шт.

5

P1352031

LATCH ASSY.

HANDLE - glass pull

1шт.

6

P8346202

STOP

LATCH - sliding glass, no longer available, order kit P8646261, Ref. 12 on Figure 9-92

1шт.

P1303186

PROFILE

SEAL - bulk, sold by the meter

1шт.

P1303188

SLIPPER

SEAL - bulk, sold by the meter

1шт.

P1303187

SEAL

- bulk, sold by the meter

1шт.
