Запчасти Case 220B (9-078) - CAB, CAB GLASS AND INSULATION, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

REF

INSTRUCTION

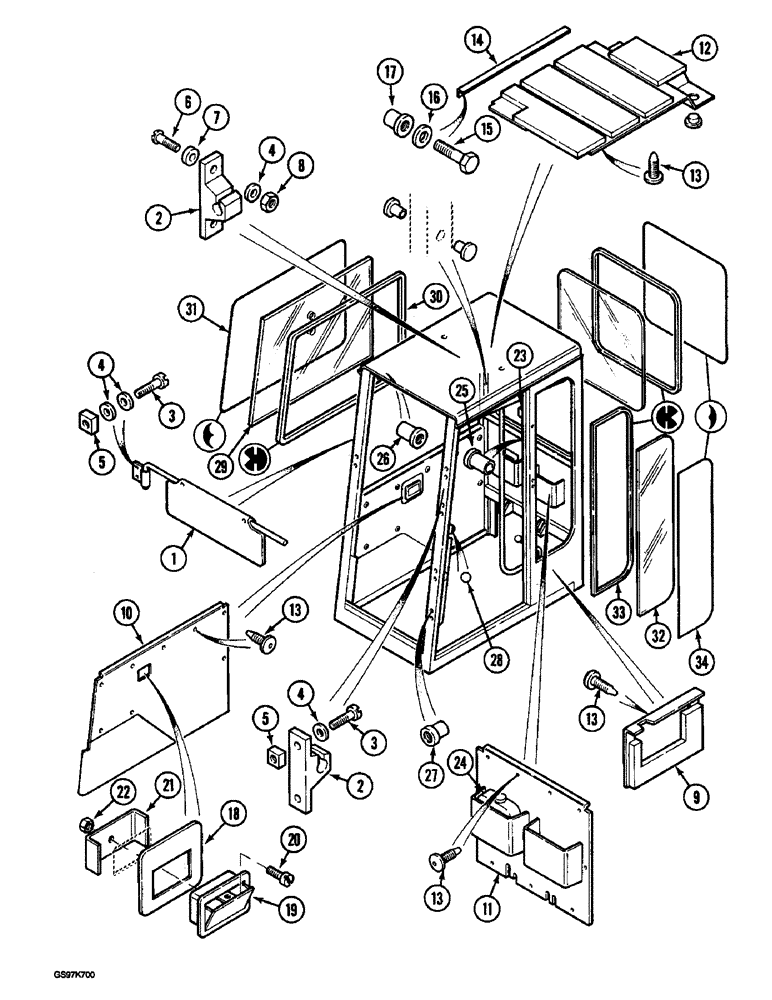

CAB ASSEMBLY - excavator, continued from Figures 9-74 and 9-76, Includes: Ref. 1 - 34 and 35 - 40 on Fig. 9-80, Includes: Ref. 1 - 34 and 35 - 40 on Fig. 9-78

1шт.

1

P2843294

VISOR, SUN

VISOR - operator, Serial Range: 74441-74597

1шт.

2

P3036940

HOOK

LATCH - visor, Serial Range: 74441-74597

2шт.

3

P32531

SCREW

- latch and visor to cab, Serial Range: 74441-74597

4шт.

4

P4328717

WASHER

SPACER - latch and visor screw, Serial Range: 74441-74597

8шт.

5

P234586

NUT

- clip type, latch and visor screw, Serial Range: 74441-74597

4шт.

6

P2033030

SCREW

- side latch to cab, Serial Range: 74441-74597

2шт.

7

P1245226

WASHER

SPACER - side latch screw, Serial Range: 74441-74597

2шт.

8

P34107X

NUT,M4, Cl 8

- side latch screw, Serial Range: 74441-74597

2шт.

9

P2741424

LARGE PLATE

INSULATION AND COVER - cab at latch handle

1шт.

10

P3441444

LARGE PLATE

INSULATION - cab, right-hand side

1шт.

11

P2741423

LARGE PLATE

INSULATION - cab, rear

1шт.

12

P3441496

LARGE PLATE

INSULATION - cab, top

1шт.

13

P2036971

BUTTON

RETAINER - insulation

33шт.

14

P1831643

ANGLE BAR

STRIP - retainer, cab insulation

2шт.

15

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- Retainer strip, hex, full threads, 6 - 1.0 x 20 mm (Replaces bolt P33809)

6шт.

16

P3528799

WASHER

SPACER - retainer bolt

6шт.

17

P834513

NUT

RETAINER -, Serial Range: strip-cab

6шт.

18

P4423439

LARGE PLATE

PLATE - support, ash tray

1шт.

19

P2343284

ASH TRAY

TRAY - ash, cab

1шт.

20

P32506

SCREW

BOLT - ash tray mounting

1шт.

21

P6022751

SUPPORT

PLATE - retainer

1шт.

22

825-1403

NUT,M3, Cl 8

- hex, 3 mm - 0.5 (Replaces nut P34105)

1шт.

23

REF

INSTRUCTION

LAMP - cab, see figure 4-30

1шт.

24

REF

INSTRUCTION

PUMP AND RESERVOIR - windshield washer, see Figure 4-32 for mounting parts

1шт.

25

P35444

RIVET

SLEEVE - bolt, cab interior lamp mounting

2шт.

26

P234587

NUT

SLEEVE - bolt

4шт.

27

P834513

NUT

RETAINER - bolt, used as plug in this application

24шт.

28

P29906

BALL KNOB

KNOB - handle

1шт.

29

P1347095

GLASS

- window, cab side, right-hand, see Figure 9-90 for sliding window assembly, if used

1шт.

30

P7146016

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

31

REF

INSTRUCTION

SEAL - window glass, 4216 mm (166 inch) long, cut from bulk seal P346008 below

1шт.

32

P1347048

GLASS

- window, cab side, left-hand

1шт.

33

P7146074

SEAL

RETAINER - rubber, Serial Range: window-cab

1шт.

34

REF

INSTRUCTION

SEAL - window glass, 3099 mm (122 inch) long, cut from bulk seal P346008 below

1шт.

P346008

SEAL

- bulk, sold by the meter Continued on next figure

1шт.
