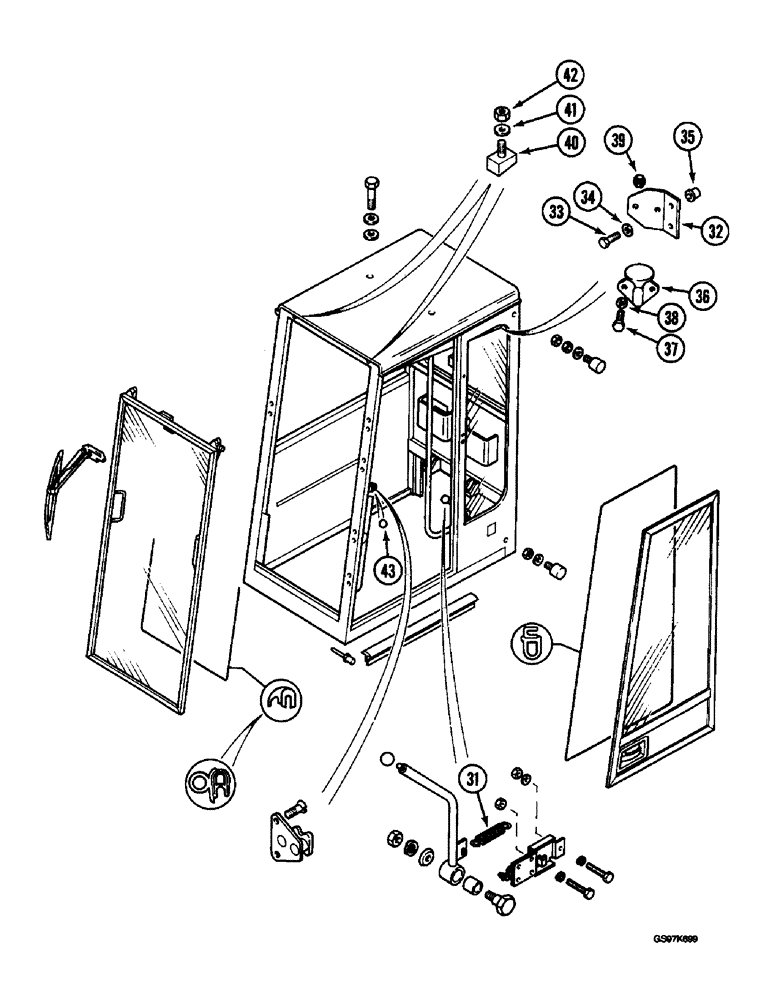

Запчасти Case 220B (9-076) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (09) - CHASSIS

REF

INSTRUCTION

CAB ASSEMBLY - excavator, continued, Includes: Ref. 31 - 43 and 1 - 30 on Fig. 9-74

1шт.

31

P38002

COIL SPRING

SPRING - handle return

1шт.

32

P2928219

SUPPORT

BRACKET - mounting, coat hook

1шт.

33

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 25 mm

2шт.

34

P34607

WASHER

- lock

2шт.

35

P834513

NUT

RETAINER -, Serial Range: bracket-cab

2шт.

36

P4151

COAT HOOK

HOOK - coat

1шт.

37

P933825

SCREW

BOLT -, Serial Range: hook-bracket

2шт.

38

P34607

WASHER

- lock

2шт.

39

832-10406

NUT,M6 x 1, Cl 8

LOCK, , Hook to bracket (Replaces nut P234513) M6 x 1, Cl 8

2шт.

40

P4241455

STOP

- rubber, cab window, if used

2шт.

41

P4328718

WASHER

SPACER - screw, 3 mm thick, if used

2шт.

42

825-1405

NUT,M5, Cl 8

If used (Replaces nut P34108) M5, Cl 8

2шт.

43

P29906

BALL KNOB

KNOB - handle

1шт.
