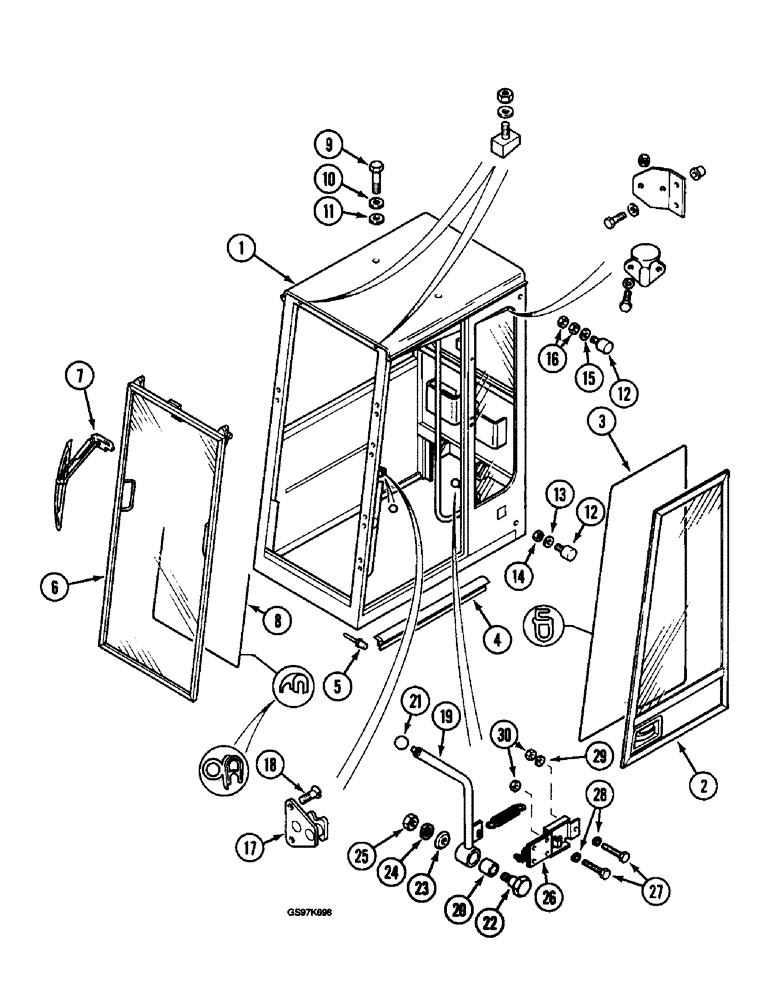

Запчасти Case 220B (9-074) - CAB, CAB FRAME AND RELATED PARTS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

P7543827

CAB

ASSEMBLY - excavator, no longer available, order cab assembly P8443829, parts list Figure 9-82, Includes: Ref. 1 - 30 and 31 - 43 on fig. 9-76

1шт.

1

NSS

NOT SOLD SEPARAT

CAB - excavator, order cab assembly P7543827

1шт.

2

REF

INSTRUCTION

DOOR ASSEMBLY - cab, parts list Figure 9-94 or 9-96

1шт.

3

REF

INSTRUCTION

SEAL - door to cab, parts list figure 9-94 or 9-96

1шт.

4

P4048317

CONNECTING STRIP

COVER - door sill

1шт.

5

P35413

RIVET

- door sill cover

6шт.

6

P1347086

WINDSHIELD

ASSEMBLY - cab, parts list Figure 9-100

1шт.

7

REF

INSTRUCTION

WIPER - windshield, see figure 4-30 or 4-31

1шт.

8

REF

INSTRUCTION

SEAL - windshield to cab, 1321 mm (52 inch) long, cut from bulk seal P303111 below, Serial Range: -74597

1шт.

8

REF

INSTRUCTION

SEAL - windshield to cab, 1800 mm (71 inch) long, cut from bulk seal P1303155 below, Start Serial: 03201

1шт.

9

P33869

BOLT,Hex, M14 x 30

At cab top Hex, M14 x 30

2шт.

10

P35044

WASHER

- lock

2шт.

11

P945237

WASHER

- flat

2шт.

12

P3841416

STOP

- door, rubber

2шт.

13

P3528794

WASHER

- flat

1шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

1шт.

15

P35002

WASHER

- flat

1шт.

16

P34211

NUT

- hex

2шт.

17

P852054

CATCH PLATE

STRIKER - door latch

1шт.

18

P32412

SCREW

-, Serial Range: striker-cab

2шт.

P4842763

CONTROL LEVER

HANDLE ASSEMBLY - door latch, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

HANDLE - door latch, order handle assembly P4842763

1шт.

20

P28780

SELF LUB RING

BUSHING - door handle

1шт.

21

P29938

BALL KNOB

KNOB - handle

1шт.

22

P1827953

PIN

- shoulder, handle mounting

1шт.

23

P34906

RUBBER WASHER

WASHER - spring type

1шт.

24

P34614

WASHER

- lock

1шт.

25

P134549

SAFETY NUT

NUT - hex

1шт.

26

P852086

LOCK ASSY

LATCH - door open

1шт.

27

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

5шт.

28

P34607

WASHER

- lock

5шт.

29

P3528799

WASHER

SPACER - latch bolt

1шт.

30

825-1406

NUT,M6, Cl 8

5шт.

P303111

SEAL

- bulk, sold by the meter

1шт.

P1303155

PROFILE

SEAL - bulk, sold by the meter Continued on next figure

1шт.
