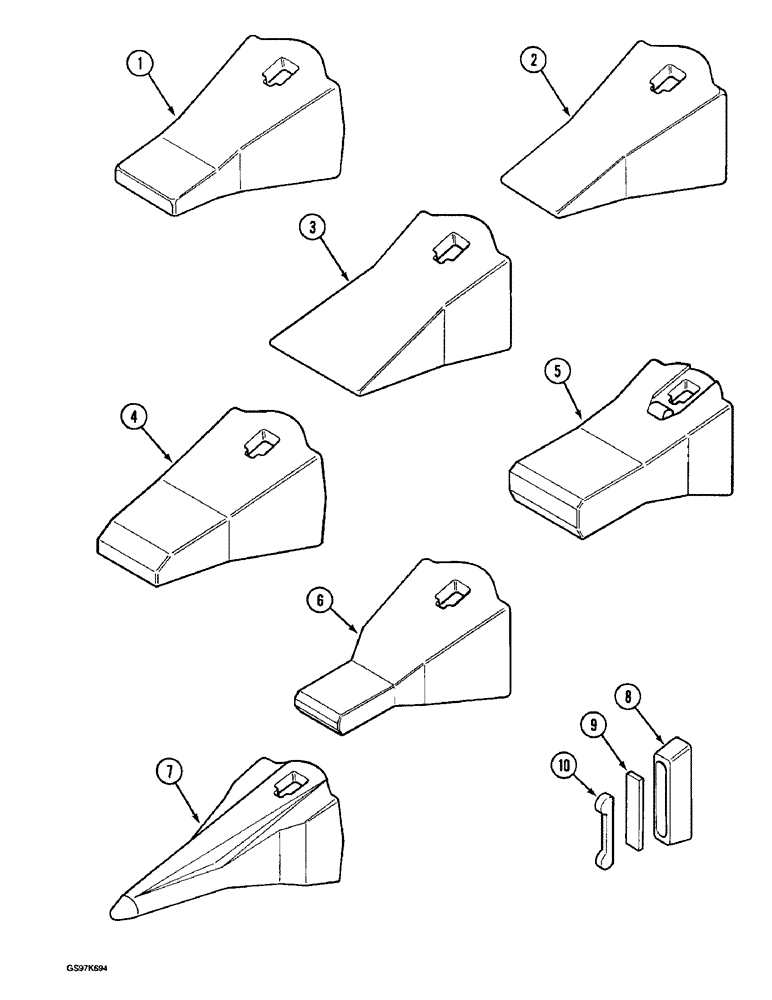

Запчасти Case 220B (9-066) - BUCKET TEETH, WITH THREE-PIECE TOOTH RETAINING CONFIGURATION (09) - CHASSIS

1

P604096

POINT

TOOTH - bucket, standard, no longer available, order tooth P1504092 and retainer P1236125, Refs. 1 and 4 on Figure 9-68

1шт.

2

P704066

POINT

TOOTH - bucket, standard cutting

1шт.

3

P704073

POINT

TOOTH - bucket, wide cutting, no longer available

1шт.

4

P704052

POINT

TOOTH - bucket, rock, no longer available, order tooth P1504094 and retainer P1236125, Refs. 2 and 4 on Figure 9-68

1шт.

5

P704080

POINT

TOOTH - bucket, hard rock

1шт.

6

P704059

POINT

TOOTH - bucket, pick type

1шт.

7

P1204044

POINT

TOOTH - bucket, spur type, no longer available, order tooth P1504093 and retainer P1236125, Refs. 3 and 4 on Figure 9-68

1шт.

8

P404244

BUCKET TOOTH KEY

LOCK - bucket tooth

1шт.

9

P20223

BLOCK ASSY.

KEY - tooth lock

1шт.

10

P404245

BUCKET TOOTH KEY

RETAINER - key

1шт.
