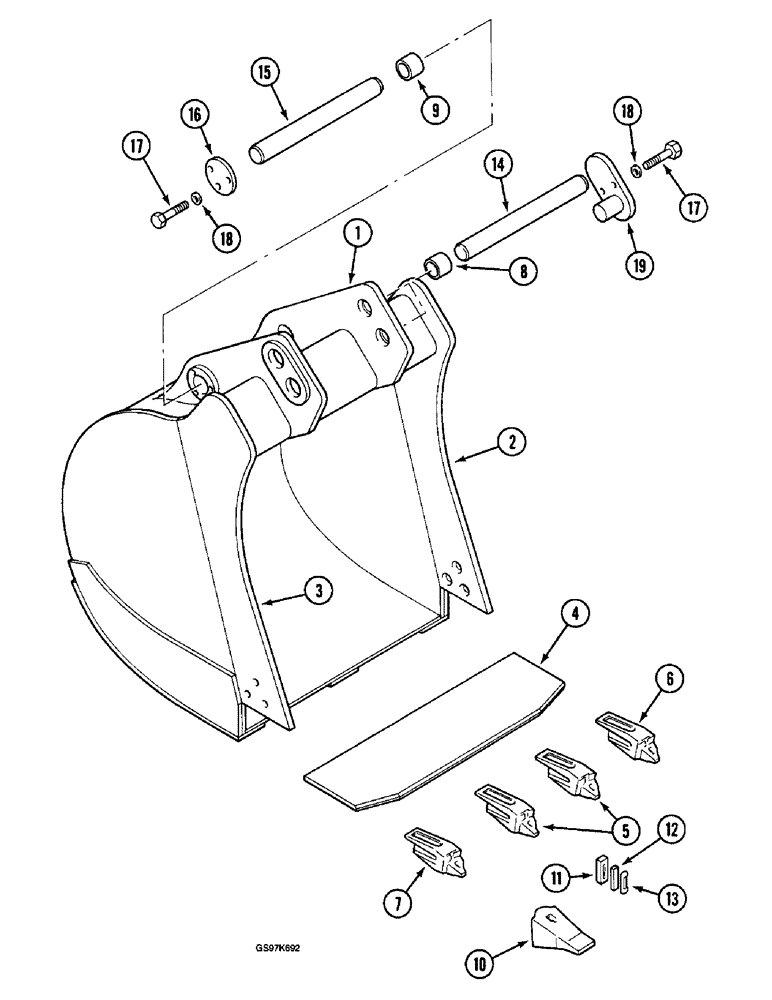

Запчасти Case 220B (9-062) - BACKHOE BUCKET, WITH THREE-PIECE TOOTH RETAINING CONFIGURATION (09) - CHASSIS

REF

INSTRUCTION

BUCKET ASSEMBLY - backhoe, excavator, 1220 mm (2-1/4 cubic yard, 48 inch) wide, machinery item, order from Machinery Price List, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - backhoe, excavator

1шт.

2

P4924222

STIFFENER

PLATE - cutting edge, side, right-hand

1шт.

3

P4924223

STIFFENER

PLATE - cutting edge, side, left-hand

1шт.

P5853725

BLADE

EDGE ASSEMBLY - cutting, includes shanks, bucket, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE - cutting edge, bucket, order edge assembly P5853725

1шт.

5

P904096

SUPPORT

SHANK - tooth, center

2шт.

6

P2346121

SUPPORT

SHANK - tooth, right-hand

1шт.

7

P2346120

SUPPORT

SHANK - tooth, left-hand

1шт.

8

P4528776

BUSHING

- bucket pin, at, Serial Range: arm-bucket

4шт.

9

P4628796

BUSHING

- bucket pin, at, Serial Range: link-bucket

2шт.

10

REF

INSTRUCTION

TOOTH - bucket, see figure 9-66 for options

4шт.

11

P404244

BUCKET TOOTH KEY

LOCK - bucket tooth, see Figure 9-66

4шт.

12

P20223

BLOCK ASSY.

KEY - tooth lock, see Figure 9-66

4шт.

13

P404245

BUCKET TOOTH KEY

RETAINER - key, see Figure 9-66

4шт.

14

P3227396

PIN

-, Serial Range: arm-bucket

1шт.

15

P3227395

PIN

-, Serial Range: link-bucket

1шт.

16

P8230165

CAP

PLATE - retainer, bucket pin

2шт.

17

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Retainer plate Hex, M12 x 35, 8.8, Full Thd

10шт.

18

P3528793

WASHER

SPACER - retainer plate bolt

10шт.

19

P2930918

CAP

RETAINER - pin

2шт.
