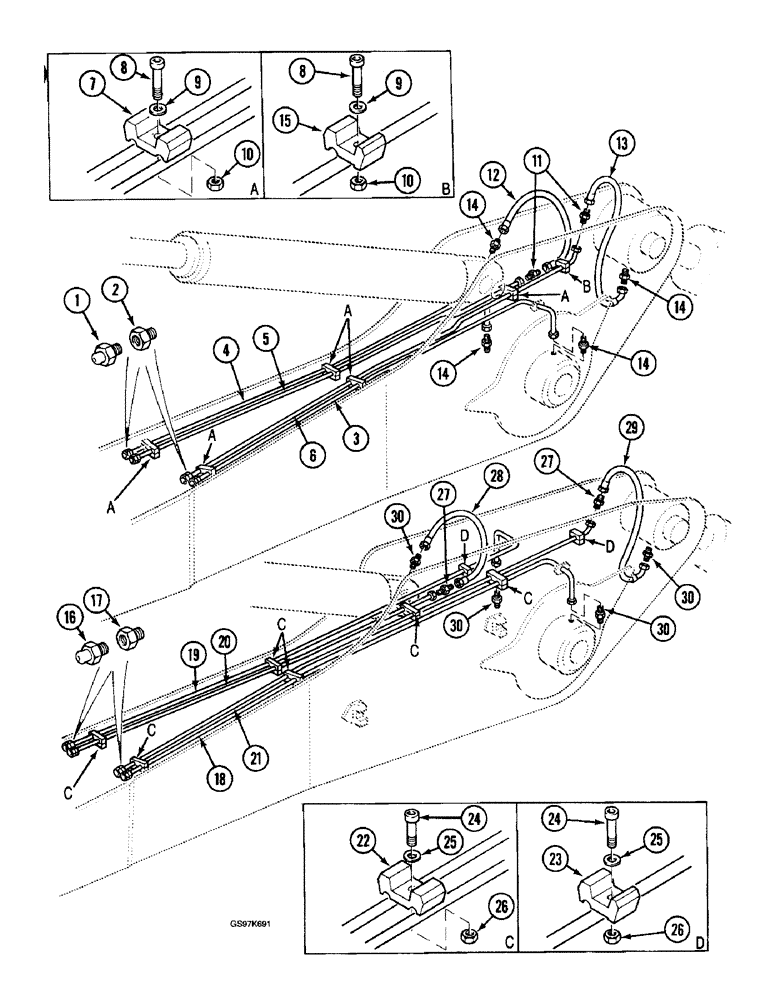

Запчасти Case 220B (9-060) - ARM LUBRCATN LINES, PIN 74570 - 74597, PIN 03201 & AFT, FOR UNITS W/ 3 M ARM (09) - CHASSIS

1

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

4шт.

2

P4037594

END FITTING

ADAPTER - grease, Serial Range: fitting-tube

4шт.

3

P6349012

PIPE

TUBE - lubrication, pin at boom, left-hand side

1шт.

4

P6349011

PIPE

TUBE - lubrication, pin at boom, right-hand side

1шт.

5

P6349010

PIPE

TUBE - lubrication, base end of tool cylinder

1шт.

6

P6949159

PIPE

TUBE - lubrication, rod end of arm cylinder

1шт.

7

P404292

SHIN

CLAMP - double tube

5шт.

8

P1232971

SCREW

BOLT - hex socket, 12 mm x 30 mm, grade 10.9

6шт.

9

P34713

WASHER

- lock

6шт.

10

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

6шт.

11

P3237535

UNION

ADAPTER - straight, lubrication, Serial Range: tube-hose

2шт.

12

P6631965

HOSE

- lubrication, base end of tool cylinder, 630 mm (24-13/16 inch) long

1шт.

13

P6631919

HOSE

- lubrication, rod end of arm cylinder, 630 mm (24-13/16 inch) long

1шт.

14

P4037573

UNION

ADAPTER ASSEMBLY - lubrication lines

4шт.

P945295

SEAL

O-RING - adapter

1шт.

15

P404291

SHIN

CLAMP - single tube

1шт.

16

J45801

LUBE NIPPLE,M8 x 1.25

lubrication, used on units with 3.8 meter arm M8 x 1.25

4шт.

17

P4037594

END FITTING

ADAPTER - grease fitting to tube, used on units with 3.8 meter arm

4шт.

18

P6949156

PIPE

TUBE - lubrication, pin at boom, left-hand side, used on units with 3.8 meter arm

1шт.

19

P6949157

PIPE

TUBE - lubrication, pin at boom, right-hand side, used on units with 3.8 meter arm

1шт.

20

P6349009

PIPE

TUBE - lubrication, base end of tool cylinder, used on units with 3.8 meter arm

1шт.

21

P6949158

PIPE

TUBE - lubrication, rod end of arm cylinder, used on units with 3.8 meter arm

1шт.

22

P404292

SHIN

CLAMP - double tube, used on units with 3.8 meter arm

6шт.

23

P404291

SHIN

CLAMP - single tube, used on units with 3.8 meter arm

2шт.

24

P1232971

SCREW

BOLT - hex socket, 12 mm x 30 mm, grade 10.9, used on units with 3.8 meter arm

8шт.

25

P34713

WASHER

- lock, used on units with 3.8 meter arm

8шт.

26

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, Used on units with 3.8 meter arm

8шт.

27

P3237535

UNION

ADAPTER - tube to hose, used on units with 3.8 meter arm

2шт.

28

P6631965

HOSE

- lubrication, base end of tool cylinder, 630 mm (24-13/16 inch) long, used on units with 3.8 meter arm

1шт.

29

P6631919

HOSE

- lubrication, rod end of arm cylinder, 630 mm (24-13/16 inch) long, used on units with 3.8 meter arm

1шт.

30

P4037573

UNION

ADAPTER ASSEMBLY - lubrication lines, used on units with 3.8 meter arm

4шт.

P945295

SEAL

O-RING - adapter

1шт.
