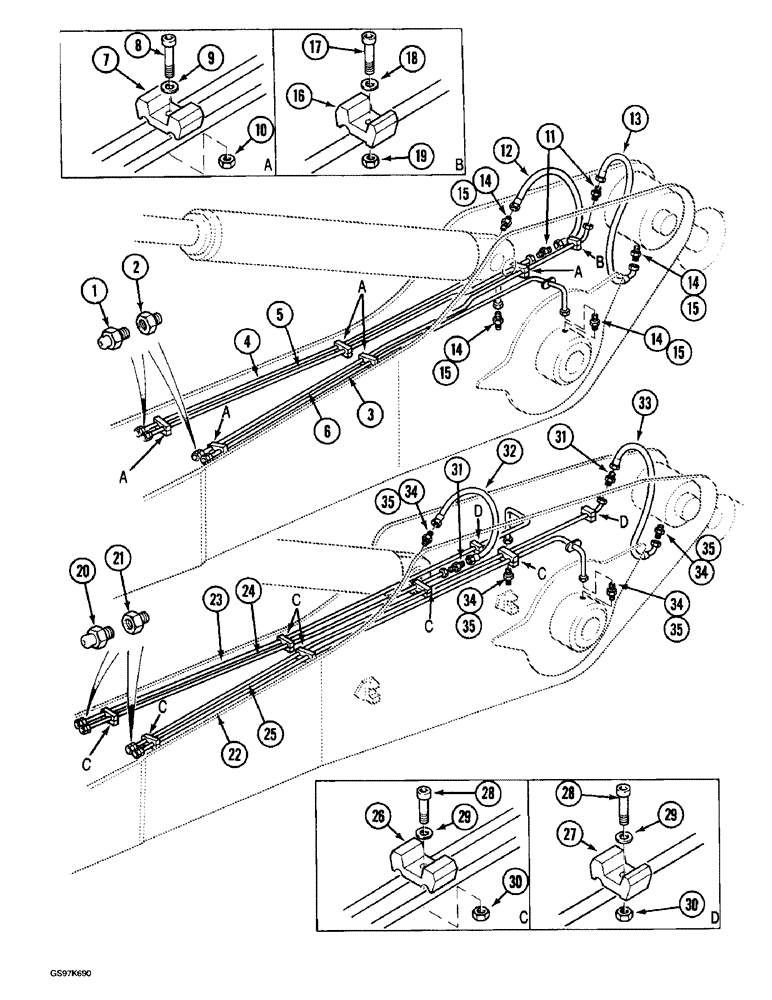

Запчасти Case 220B (9-058) - ARM LUBRICATION LINES, PIN 74441 - 74569,USED ON UNITS W/ 3 METER ARM (09) - CHASSIS

1

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

4шт.

2

P3237596

END FITTING

ADAPTER - grease, Serial Range: fitting-tube

4шт.

3

P6149078

PIPE

TUBE - lubrication, pin at boom, left-hand side

1шт.

4

P6149077

PIPE

TUBE - lubrication, pin at boom, right-hand side

1шт.

5

P6149076

PIPE

TUBE - lubrication, closed end of tool cylinder

1шт.

6

P6549169

PIPE

TUBE - lubrication, rod end of arm cylinder

1шт.

7

P404292

SHIN

CLAMP - double tube

5шт.

8

P1232971

SCREW

BOLT - tube clamp

5шт.

9

P34713

WASHER

- lock

5шт.

10

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

5шт.

11

P37553

UNION

ADAPTER -, Serial Range: tube-hose

2шт.

12

P3731994

HOSE

- lubrication, closed end of tool cylinder, 630 mm (24-13/16 inch) long

1шт.

13

P4431936

HOSE

- lubrication, rod end of arm cylinder, 630 mm (24-13/16 inch) long

1шт.

14

P3037546

UNION

ADAPTER - straight, lubrication lines

4шт.

15

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

4шт.

16

P404291

SHIN

CLAMP - single tube

1шт.

17

P1232971

SCREW

BOLT - tube clamp

1шт.

18

P34713

WASHER

- lock

1шт.

19

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

20

J45801

LUBE NIPPLE,M8 x 1.25

lubrication, used on units with 3.8 meter arm M8 x 1.25

4шт.

21

P3237596

END FITTING

ADAPTER - grease fitting to tube, used on units with 3.8 meter arm

4шт.

22

P6549166

PIPE

TUBE - lubrication, pin at boom, left-hand side, used on units with 3.8 meter arm

1шт.

23

P6549167

PIPE

TUBE - lubrication, pin at boom, right-hand side, used on units with 3.8 meter arm

1шт.

24

P6149075

PIPE,1652, 104.5 mm L

TUBE - lubrication, closed end of tool cylinder, used on units with 3.8 meter arm

1шт.

25

P6549168

PIPE

TUBE - lubrication, rod end of arm cylinder, used on units with 3.8 meter arm

1шт.

26

P404292

SHIN

CLAMP - double tube, used on units with 3.8 meter arm

6шт.

27

P404291

SHIN

CLAMP - single tube, used on units with 3.8 meter arm

2шт.

28

P1232971

SCREW

BOLT - tube clamp, used on units with 3.8 meter arm

8шт.

29

P34713

WASHER

- lock, used on units with 3.8 meter arm

8шт.

30

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10, Used on units with 3.8 meter arm

8шт.

31

P37553

UNION

ADAPTER - tube to hose, used on units with 3.8 meter arm

2шт.

32

P3731994

HOSE

- lubrication, closed end of tool cylinder, 630 mm (24-13/16 inch) long, used on units with 3.8 meter arm

1шт.

33

P4431936

HOSE

- lubrication, rod end of arm cylinder, 630 mm (24-13/16 inch) long, used on units with 3.8 meter arm

1шт.

34

P3037546

UNION

ADAPTER - straight, lubrication lines, used on units with 3.8 meter arm

4шт.

35

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215), used on units with 3.8 meter arm -116, 90 Duro, .737" ID x .103" Thk

4шт.
