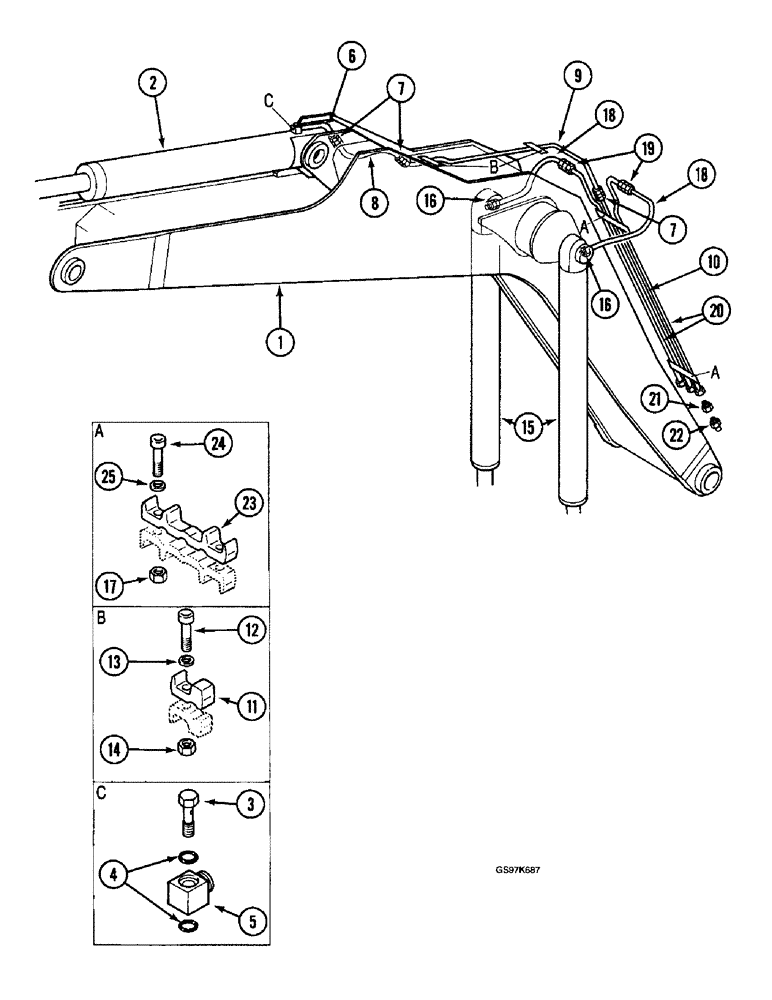

Запчасти Case 220B (9-052) - BOOM LUBRICATION LINES,W/ ADAPTERS BETWEEN TUBES, GREASE FITTINGS,PIN 74570 - 74597,PIN 03201 & AFT (09) - CHASSIS

1

P3853790

BOOM

ASSEMBLY - excavator, parts list Figure 9-48

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, parts list Figure 8-196, 8-198 or 8-200, see Figures 8-102 - 8-108 for arm cylinder circuit

1шт.

P5137744

FITTING

CONNECTOR ASSEMBLY - block-type, arm cylinder lubrication, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - hollow, lubrication, order connector assembly P5137744

1шт.

4

P30401

O-RING,2.5mm Thk x 18.5mm ID

- connector

2шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR - block-type, arm cylinder lubrication, order connector assembly P5137744

1шт.

6

P7147159

PIPE

TUBE - lubrication, to arm cylinder, upper section

1шт.

7

P3237535

UNION

ADAPTER - straight, Serial Range: tube-hose

3шт.

8

P6631965

HOSE

- lubrication tube to base end of arm cylinder

1шт.

9

P6949144

PIPE

TUBE - lubrication, to arm cylinder, center section

1шт.

10

P4137670

PIPE

TUBE - lubrication, to arm cylinder, lower section

1шт.

11

P404291

SHIN

CLAMP - tube, for single tube

2шт.

12

P1232971

SCREW

BOLT - clamp

2шт.

13

P34713

WASHER

- lock

2шт.

14

829-1412

NUT,M12, Cl 10.9

- clamp bolt, hex, 12 mm - 1.75, class 10

2шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, parts list Figure 8-192 or 8-194, see Figures 8-98 and 8-100 for boom cylinder circuit

2шт.

16

P4037573

UNION

ADAPTER ASSEMBLY - straight, Serial Range: hose-cylinder

2шт.

P945295

SEAL

- adapter

1шт.

17

829-1412

NUT,M12, Cl 10.9

- clamp bolt, hex, 12 mm - 1.75, class 10

4шт.

18

P6631965

HOSE

- lubrication tube to base end of boom cylinder, 630 mm (24-3/4 inch) long

2шт.

19

P3237535

UNION

ADAPTER - straight, Serial Range: tube-hose

2шт.

20

P7147161

PIPE

TUBE - lubrication, to boom cylinders

2шт.

21

P4037594

END FITTING

ADAPTER - tube to grease fitting

3шт.

22

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

3шт.

23

P504210

SHIN

CLAMP - lubrication tubes

2шт.

24

P1232971

SCREW

BOLT - clamp

4шт.

25

P34713

WASHER

- lock

4шт.
