(9-050) - BOOM LUBRICATION LINES, WITHOUT ADAPTERS BETWEEN TUBES AND GREASE FITTINGS, P.I.N. 74441 THRU 74569

Запчасти Case 220B (9-050) - BOOM LUBRICATION LINES, WITHOUT ADAPTERS BETWEEN TUBES AND GREASE FITTINGS, P.I.N. 74441 THRU 74569 (09) - CHASSIS

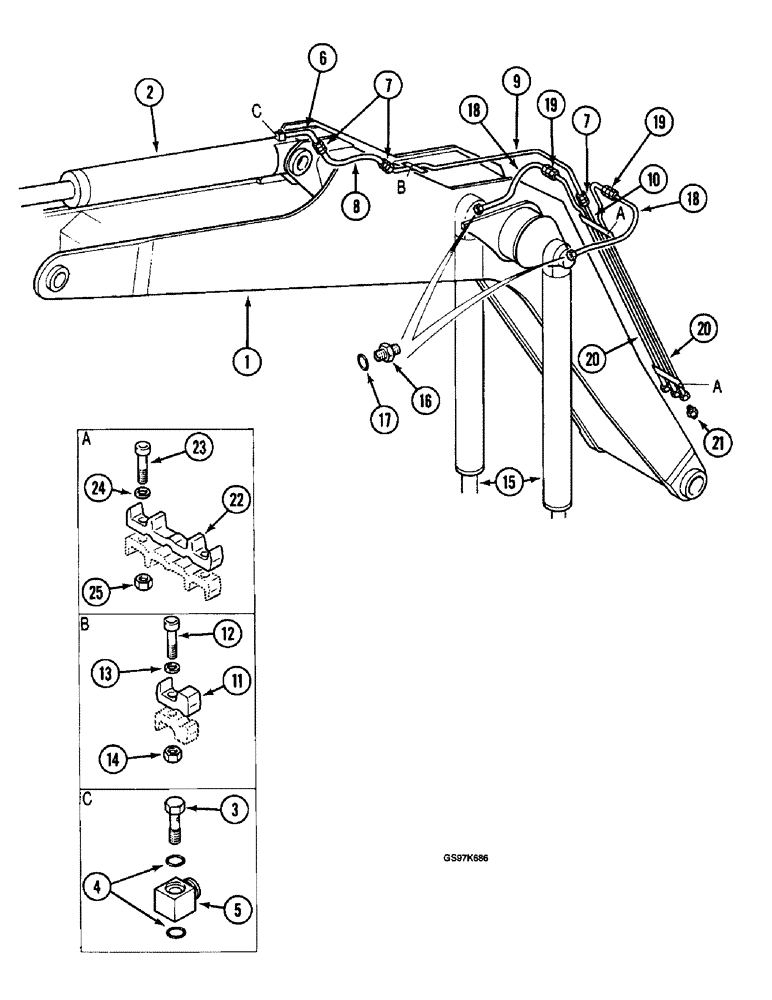

Схема запчастей Case 220B - (9-050) - BOOM LUBRICATION LINES, WITHOUT ADAPTERS BETWEEN TUBES AND GREASE FITTINGS, P.I.N. 74441 THRU 74569 (09) - CHASSIS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P3853790

BOOM

ASSEMBLY - excavator, parts list Figure 9-48

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - arm, parts list Figure 8-196, 8-198 or 8-200, see Figures 8-102 - 8-108 for arm cylinder circuit

1шт.

P637018

FITTING

CONNECTOR ASSEMBLY - block-type, arm cylinder lubrication, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

BOLT - hollow, lubrication, order connector assembly P637018

1шт.

4

P30401

O-RING,2.5mm Thk x 18.5mm ID

- connector

2шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR - block-type, arm cylinder lubrication, order connector assembly P637018

1шт.

6

P4547134

PIPE

TUBE - lubrication, to arm cylinder, upper section

1шт.

7

P37553

UNION

ADAPTER - straight, Serial Range: tube-hose

3шт.

8

P3731994

HOSE

- lubrication tube to base end of arm cylinder

1шт.

9

P5549143

PIPE

TUBE - lubrication, to arm cylinder, center section

1шт.

10

P3837673

PIPE

TUBE - lubrication, to arm cylinder, lower section

1шт.

11

P404291

SHIN

CLAMP - tube, for single tube

1шт.

12

P1232971

SCREW

BOLT - clamp

1шт.

13

P34713

WASHER

- lock

1шт.

14

825-1410

NUT,M10, Cl 8

Clamp bolt (Replaces nut P834551) M10, Cl 8

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - boom, parts list Figure 8-192 or 8-194, see Figures 8-98 and 8-100 for boom cylinder circuit

2шт.

16

P3037546

UNION

ADAPTER - straight, Serial Range: hose-cylinder

2шт.

17

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring L33215) -116, 90 Duro, .737" ID x .103" Thk

2шт.

18

P3731994

HOSE

- lubrication tube to base end of boom cylinder, 630 mm (24-3/4 inch) long

2шт.

19

P37553

UNION

ADAPTER - straight, Serial Range: tube-hose

2шт.

20

P5547122

PIPE

TUBE - lubrication, to boom cylinders

2шт.

21

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

3шт.

22

P504210

SHIN

CLAMP - lubrication tubes

2шт.

23

P1232971

SCREW

BOLT - clamp

4шт.

24

P34713

WASHER

- lock

4шт.

25

825-1410

NUT,M10, Cl 8

Clamp bolt (Replaces nut P834551) M10, Cl 8

4шт.
