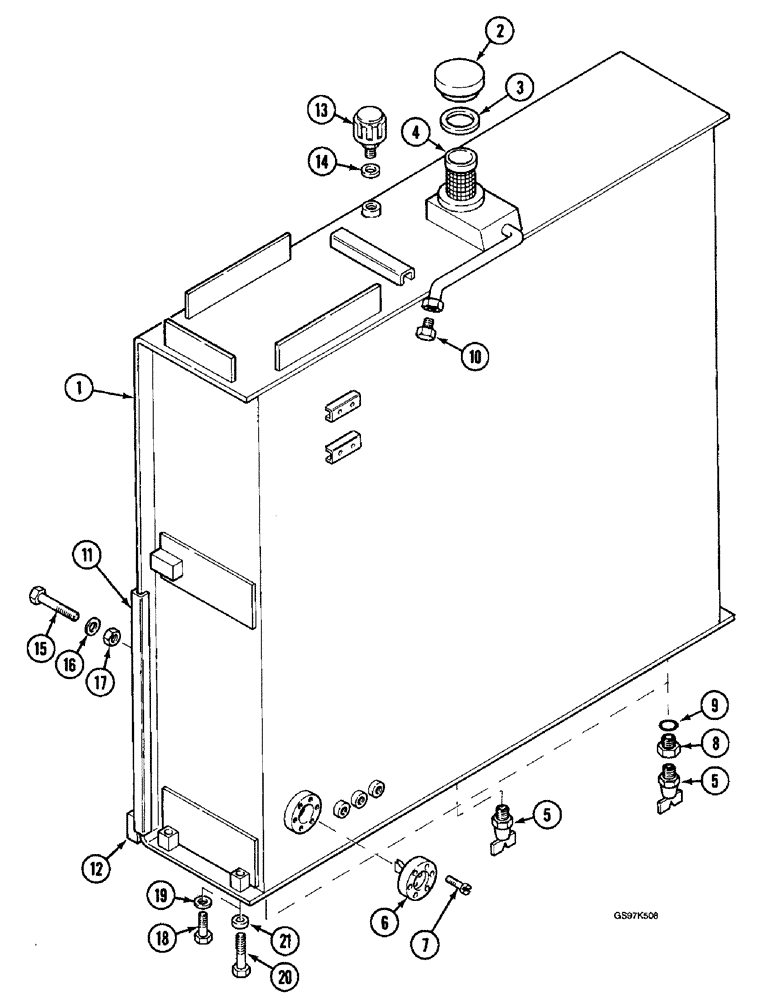

Запчасти Case 220B (3-02) - FUEL TANK, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 THROUGH 03213 (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
P840249
FUEL TANK
TANK ASSEMBLY - fuel, excavator, Includes: Ref. 2 - 12
1шт.
1
NSS
NOT SOLD SEPARAT
TANK - fuel, excavator, order tank assembly P840249
1шт.
P43262
PLUG
CAP ASSEMBLY - fuel tank, replacement lock cylinder and key are not available for this cap and are not interchangeable with P3337451 cap cylinder and key, order P3337451 assembly (Replaces caps P3237496 and P43262)
1шт.
P3337451
FILLER CAP
CAP ASSEMBLY - fuel tank, Includes: Ref. 2 and 3
1шт.
2
NSS
NOT SOLD SEPARAT
CAP - fuel tank, order cap assembly P3337451
1шт.
NSS
NOT SOLD SEPARAT
CYLINDER ASSEMBLY - lock, order cap assembly P3337451
1шт.
P1352009
KEY
- lock
1шт.
3
P8846020
SEAL
GASKET - fuel cap (Replaces gasket P46096)
1шт.
4
P50537
FILTER BOWL
STRAINER - fuel
1шт.
5
P837827
COCK
VALVE - tank drain
3шт.
6
P2141665
GAUGE
SENDER - low fuel warning lamp
1шт.
7
P32530
SCREW
- sending unit mounting
6шт.
8
P1737417
PLUG
REDUCER - tank drain
2шт.
9
P130412
O-RING
- plug
2шт.
10
P37497
PLUG
- tube
1шт.
11
REF
INSTRUCTION
SEAL - fuel tank, 600 mm (23-5/8 inch) long, cut from bulk seal P303161 below
1шт.
12
REF
INSTRUCTION
SEAL - fuel tank, 1400 mm (55-1/8 inch) long, cut from bulk seal P3128 below
1шт.
13
P50586
BREATHER
- fuel tank
1шт.
14
P45239
WASHER, SEALING
SEAL - breather
1шт.
15
P133883
SCREW
BOLT - fuel tank mount
2шт.
16
P3528790
WASHER
SPACER - bolt
2шт.
17
P134547
SAFETY NUT
NUT - bolt
2шт.
18
614-16050
BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd
If used (replaces bolt P33854) Hex, M16 x 50, 8.8
4шт.
19
P3528790
WASHER
SPACER - 11 mm thick, used with bolt P33854, Ref. 18
4шт.
20
814-16070
BOLT,Hex, M16 x 2 x 70mm, Cl 8.8
if used, replaces bolt P33875 Hex, M16 x 70, 8.8
4шт.
21
P4328733
WASHER
SPACER - 32 mm thick, used with bolt P33875, Ref. 20
4шт.
P303161
SEAL
- bulk, sold by the meter
1шт.
P3128
SEAL
- bulk, sold by the meter
1шт.
Выбрано товаров: 28
