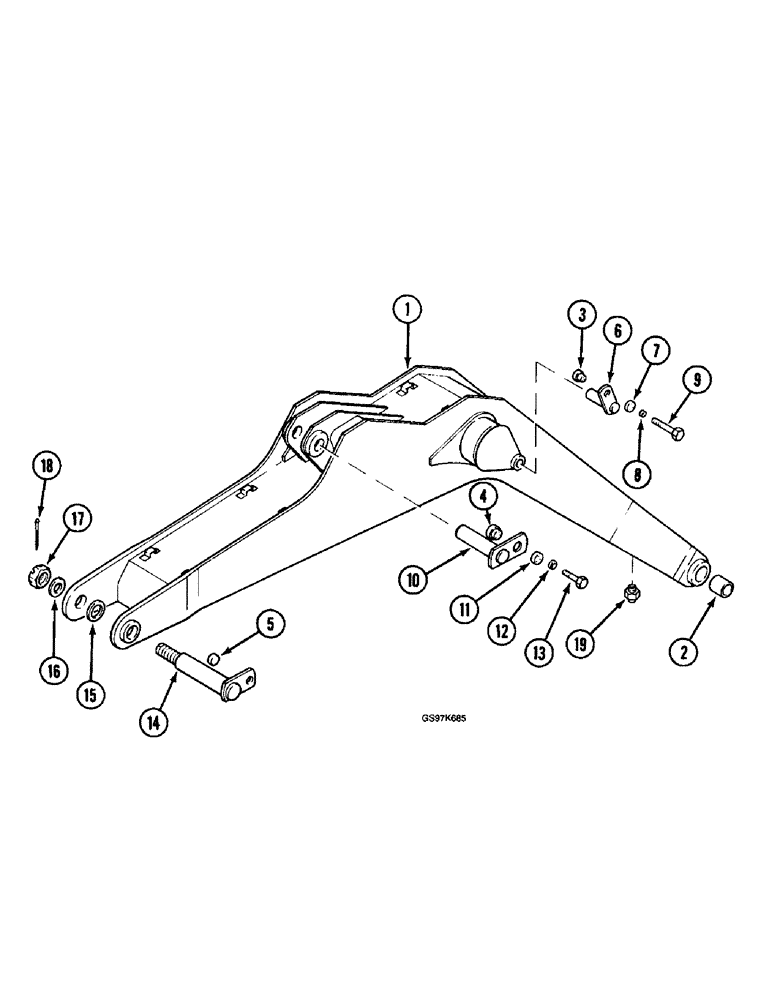

Запчасти Case 220B (9-048) - BOOM AND PINS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

P3853790

BOOM

ASSEMBLY - excavator, machinery item, order from machinery price list, Includes: Ref. 2 - 5

1шт.

2

P1528664

BUSHING

- boom pivot, at, Serial Range: boom-turntable

2шт.

3

P1927848

SHAFT LOCK

PIN - locking, boom cylinder pivot pin, Serial Range: welded-boom

2шт.

4

P529989

SHAFT LOCK

PIN - locking, arm cylinder pivot pin, Serial Range: welded-boom

1шт.

5

P3827328

SHAFT LOCK

PIN - locking, arm to boom pivot pin, Serial Range: welded-boom

1шт.

6

P2530964

PIN

HEADED - pivot, boom cylinder rod end mounting

2шт.

7

P2630178

CAP

INSERT - pin

2шт.

8

P4328797

WASHER

SPACER - bolt

6шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- pivot pin, hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

6шт.

10

P2530958

HEADED PIN

PIN, HEADED - pivot, arm cylinder closed end mounting

1шт.

11

P530147

CAP

INSERT - pin

1шт.

12

P4528701

WASHER

SPACER - bolt

3шт.

13

P433830

SCREW

BOLT - pivot pin

3шт.

14

P2530956

HEADED PIN

PIN, HEADED - pivot, Serial Range: arm-boom

1шт.

15

P245335

WASHER

SHIM - 2 mm (0.08 inch) thick, at, Serial Range: boom-arm

1шт.

16

P45622

WASHER

- pivot pin

1шт.

17

P34328

NUT

- pivot pin

1шт.

18

P35564

SPLIT PIN/SAFETY PIN

PIN - cotter, pivot pin

1шт.

19

J45801

LUBE NIPPLE,M8 x 1.25

lubrication M8 x 1.25

2шт.
