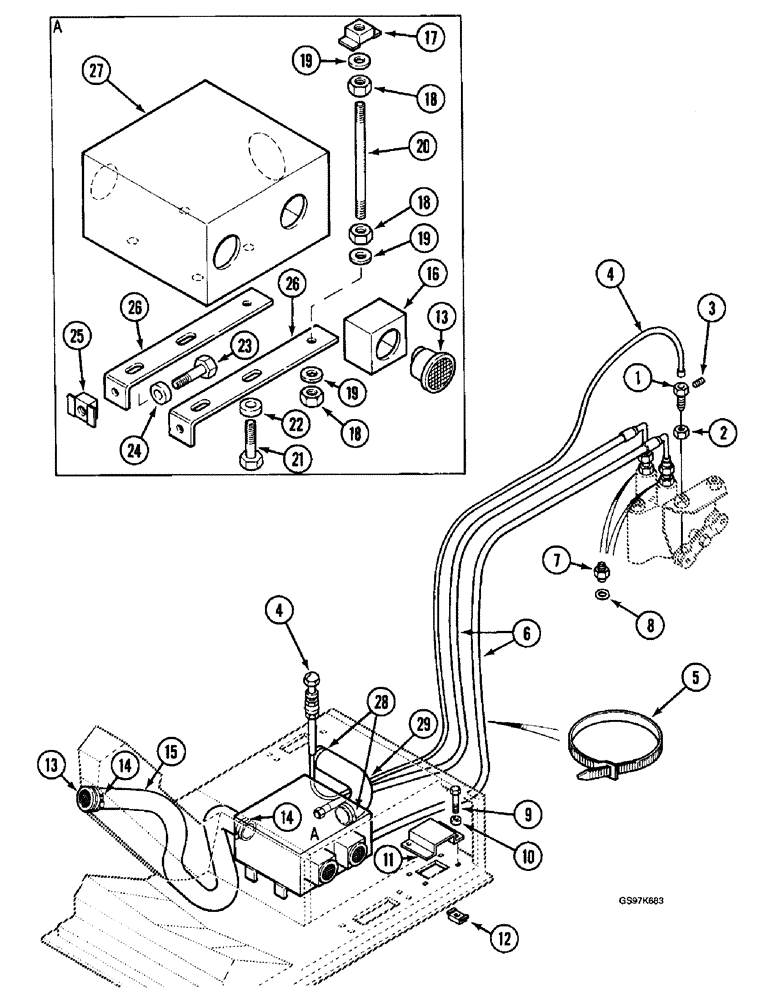

Запчасти Case 220B (9-044) - HEATER AND OIL LINES TO ENGINE, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

P5846265

STOP LOCK

RETAINER - cable

1шт.

2

825-1406

NUT,M6, Cl 8

1шт.

3

877-3068

SET SCREW,Hex Skt, M6 x 8mm, Flat Pt

hex socket, 6 - 1.0 x 8 mm, flat point, retainer (Replaces screw P32813)

1шт.

4

P4831327

CONTROL SLIDE

CABLE - control, heater oil flow

1шт.

5

P51946

CLAMP

STRAP - tie, hoses

10шт.

6

P5931921

HOSE

- oil heater

2шт.

7

P3237504

FITTING

ADAPTER - straight

2шт.

8

P45226

WASHER, SEALING

O-RING - adapter

2шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- Bracket, hex, full threads, 6 - 1.0 x 20 mm, If used (Replaces bolt P33809)

2шт.

10

P3528799

WASHER

SPACER - bolt, if used

2шт.

11

P2726331

HOOD

BRACKET - oil heater, used on P.I.N. 74441 through 74509 only

1шт.

12

P1334574

NUT

- bolt, bracket, if used

2шт.

13

P3543238

DIFFUSER

- air

3шт.

14

P136922

CLAMP

- hose

2шт.

15

P5931910

LOOM

HOSE - heater to windshield diffuser

1шт.

16

P3441421

FOAM

BRACKET - mounting, air diffuser

2шт.

17

P1334560

NUT

- stud

2шт.

18

825-1410

NUT,M10, Cl 8

Stud (Replaces nut P34166) M10, Cl 8

6шт.

19

P34611

WASHER

- flat, mounting stud

6шт.

20

P2527720

TRUSS ROD

STUD - heater mounting

2шт.

21

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

Mounting bracket (Replaces bolt P33808) Hex, M6 x 30, 8.8, Full Thd

4шт.

22

P3528799

WASHER

SPACER - mounting bolt

4шт.

23

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Mounting bracket Hex, M10 x 30, 8.8

2шт.

24

P3528795

WASHER

SPACER - bolt

2шт.

25

P1334560

NUT

- bolt, mounting bracket

2шт.

26

P4625683

SUPPORT

BRACKET - heater mounting

2шт.

27

P1241846

HEATER ASSY.

HEATER ASSEMBLY - cab, engine oil, parts list Figure 4-68

1шт.

28

P136922

CLAMP

- hose

2шт.

29

P4931987

LOOM

HOSE - air flow

1шт.
