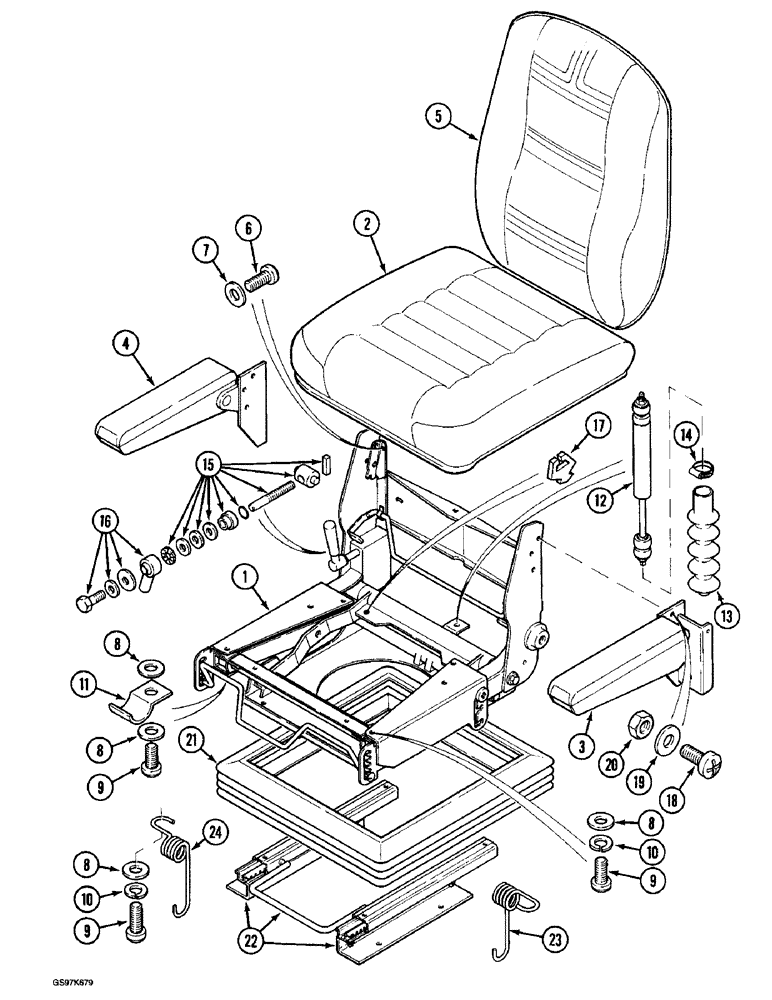

Запчасти Case 220B (9-035) - SEAT, P.I.N. 03214 AND AFTER (09) - CHASSIS

P2047055

SEAT

ASSEMBLY - operator’s, Includes: Ref. 1 - 24

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - seat, order seat assembly P2047055

1шт.

2

P2047058

CUSHION

- seat bottom

1шт.

3

P2047062

ARMREST

- seat, left-hand

1шт.

4

P2047061

ARMREST

- seat, right-hand

1шт.

5

P2047057

BACKREST

CUSHION - seat back

1шт.

6

P3533089

SCREW

BOLT - seat back

4шт.

7

P34609

WASHER

- seat bolt

4шт.

8

P35001

WASHER

- base

10шт.

9

P32572

SCREW

BOLT - clamp

10шт.

10

892-1106

LOCK WASHER,M6

- Cushion mounting bolt (Replaces washer P34707) M6

8шт.

11

P2726674

SUPPORT

CLAMP - rod

2шт.

12

P1343227

SHOCK ABSORBER

ABSORBER - shock, seat

1шт.

13

P1340448

BELLOWS

BOOT - shock absorber

1шт.

14

P36998

COLLAR CLAMP

CLAMP - boot

1шт.

15

P4441474

SPARE PART SET

KIT - seat spare parts

1шт.

16

P2047059

PAWL

- seat

1шт.

17

P641436

STOP

- seat

2шт.

18

P1047064

BOLT

BOLT - shock absorber hardware

2шт.

19

P34709C

LOCK WASHER,M8

WASHER, LOCK, , Bolt M8

2шт.

20

P34113E

NUT,M8, Cl 8

- hex

2шт.

21

P3240443

BELLOWS

COVER - suspension mechanism

1шт.

22

P2047060

SET

KIT - track, right-hand and left-hand

1шт.

23

P1038283

SPRING

- left-hand side

1шт.

24

P1038284

SPRING

- right-hand side

1шт.
