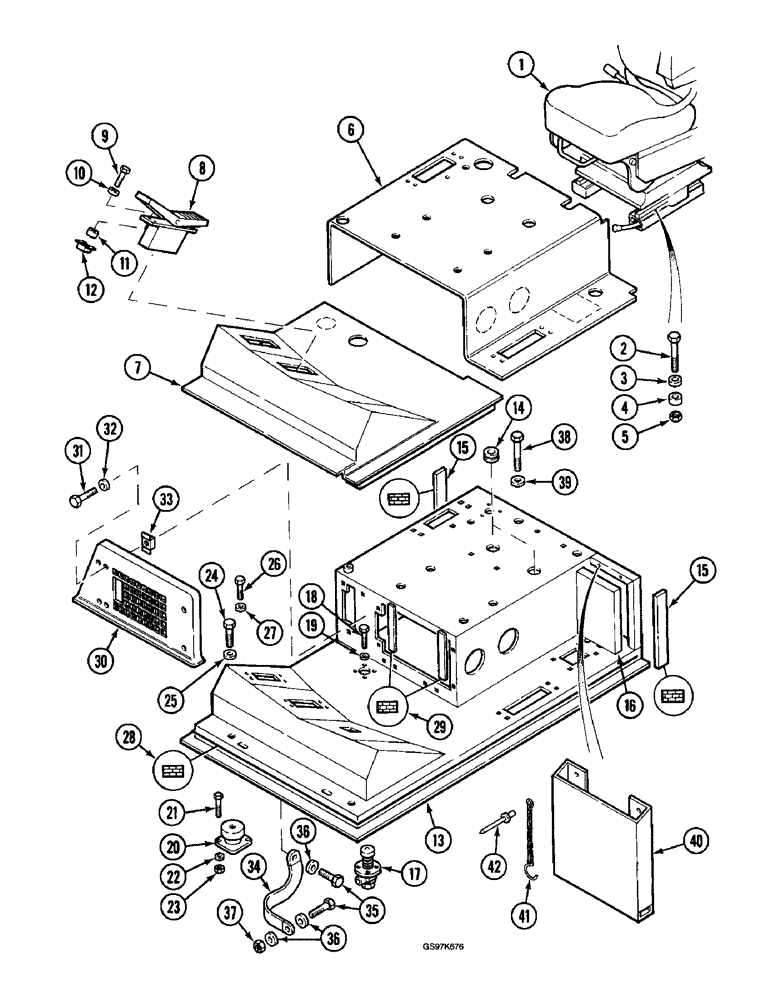

Запчасти Case 220B (9-030) - SEAT MOUNTING AND FLOOR PLATE, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

REF

INSTRUCTION

SEAT ASSEMBLY - operator’s, part list figures 9-32, 9-34 or 9-35

1шт.

2

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8), plated, Seat mounting

4шт.

3

P3528793

WASHER

SPACER - 8 mm, bolt, upper

4шт.

4

P4328732

WASHER

SPACER - 28 mm, bolt, lower

4шт.

5

P1334578

NUT

- mounting bolt

4шт.

6

P3141485

MAT

- under seat, no longer available

1шт.

7

P3441448

MAT

- floor, no longer available

1шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - control, foot, parts list Figure 8-142, 8-144 or 8-146

2-3шт.

9

P133865

SCREW

BOLT - hex, 8 mm x 60 mm, Serial Range: 74441-74509

8-12шт.

9

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

- hex, 8 - 1.25 x 50 mm (8.8) (Replaces bolt P33822), Start Serial: 74510

8-12шт.

10

P3528794

WASHER

SPACER - 6 mm, bolt, upper

8-12шт.

11

P4328732

WASHER

SPACER - 28 mm, bolt, lower, Serial Range: 74441-74509

8-12шт.

11

P4328730

WASHER

SPACER - 20 mm, bolt, lower, Start Serial: 74510

8-12шт.

12

P1334571

NUT

- valve mounting bolts

8-12шт.

13

P7743805

FLOOR

PLATE - floor, operator compartment (Replaces plate P6643851)

1шт.

14

P41478

GROMMET

GUIDE - in floor plate

2шт.

15

REF

INSTRUCTION

SEAL - 0.3 m (0.98 foot) long, cut from bulk seal P3127 below

2шт.

16

P3141452

LARGE PLATE

PAD - insulation, rear

1шт.

17

P1443532

PUMP

- foot

1шт.

18

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

Foot pump mounting Hex, M6 x 16, 8.8

4шт.

19

P3528799

WASHER

SPACER - 4 mm, bolt

4шт.

20

P4441449

SUPPORT

- floor plate (Replaces support P3841491)

4шт.

21

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex, 10 - 1.5 x 40 mm, support mounting (Replaces bolt P933818)

8шт.

22

P3528795

WASHER

SPACER - 7 mm thick, bolt

8шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Mounting bolt M10 x 1.5, Cl 8

8шт.

24

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

- hex head, 12 mm - 1.75 x 60 mm (8.8), plated, Center mount

4шт.

25

P3528797

WASHER

SPACER - 30 mm, center mount bolt

4шт.

26

814-14080

BOLT,Hex, M14 x 2 x 80mm, Cl 8.8

floor plate (Replaces bolt P933851) Hex, M14 x 80, 8.8

2шт.

27

P629208

BUSHING

SPACER - bolt

2шт.

28

REF

INSTRUCTION

SEAL - 4.5 m (14-3/4 foot) long, cut from bulk seal P3127 below

1шт.

29

REF

INSTRUCTION

SEAL - 20 cm (7-7/8 inch) long, cut from bulk seal P3128 below

2шт.

30

P2340445

SIEVE

GRILLE - heater, under seat

1шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, grille mounting (Replaces bolt P33815)

4шт.

32

P3528794

WASHER

SPACER - 6 mm, bolt

4шт.

33

P1334571

NUT

- mounting bolt

4шт.

34

P1047299

NEG BATTERY CABLE

STRAP - ground

1шт.

35

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm, ground strap

2шт.

36

P3528795

WASHER

SPACER - 7 mm, bolt

3шт.

37

825-1410

NUT,M10, Cl 8

Ground bolt (Replaces nut P34166) M10, Cl 8

1шт.

38

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

Floor plate (Replaces bolt P533846) Hex, M14 x 40, 8.8, Full Thd

2шт.

39

P3528792

WASHER

SPACER - 10 mm, bolt

2шт.

40

P3326360

DOOR

BOX - manual

1шт.

41

P2631335

CHAIN (AG)

CHAIN - manual

1шт.

42

P35418

RIVET

- pop, box, 4.8 mm x 17 mm

2шт.

P3127

SEAL

- bulk, sold by the meter

1шт.

P3128

SEAL

- bulk, sold by the meter

1шт.
