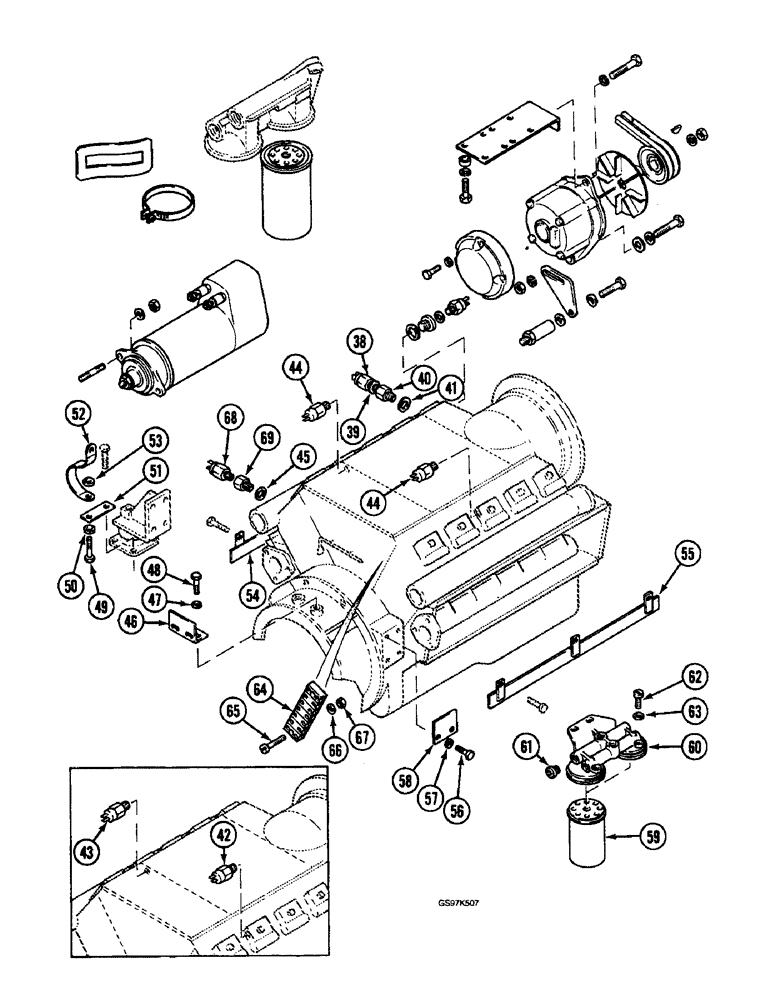

Запчасти Case 220B (2-12) - ENGINE FILTERS, ALTERNATOR, & STARTER, ADAPTING PARTS TO ENG, P.I.N. 74441-74597, P.I.N. 03201 & AFT (02) - ENGINE

38

P1241856

SWITCH

SENDER - engine oil pressure, see Ref. 16, Figures 4-2 and 4-4

1шт.

39

P28429

COMPOSITE SEAL

WASHER - special sealing

1шт.

40

P2844438

FITTING

ADAPTER -, Serial Range: sander-engine

1шт.

41

P45239

WASHER, SEALING

WASHER - special sealing

2шт.

42

P41837

DEUTZ PART

THERMOSTAT - engine temperature warning, see Ref. 25, Figure 4-2, order from Deutz, Serial Range: 74570-74596

1шт.

43

P641516

IGNITION SWITCH

THERMOSTAT - engine temperature warning, see Ref. 25, Figure 4-2, Serial Range: 74441-74596

1шт.

44

P3543298

GAUGE

THERMOSTAT - engine temperature warning, see Ref. 31, Figure 4-4, Start Serial: 74597

2шт.

44

P3543298

GAUGE

THERMOSTAT - engine temperature warning, see Ref. 31, Figure 4-4, Start Serial: 03201

2шт.

45

P45239

WASHER, SEALING

WASHER - special sealing, Serial Range: 74441-74596

1шт.

46

P1831645

ANGLE BAR

BRACKET - electrical connection

1шт.

47

P3528795

WASHER

SPACER - bracket bolt

2шт.

48

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Bracket Hex, M10 x 25, 8.8, Full Thd

2шт.

49

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- plate, ground strap, hex, full threads, 10 - 1.5 x 35 mm

1шт.

50

P3528795

WASHER

SPACER - plate bolt

1шт.

51

P1722877

PLATE

- ground strap

1шт.

52

P1047299

NEG BATTERY CABLE

STRAP - ground

1шт.

53

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, , Ground strap bolt (Replaces nut P34598) M10 x 1.5, Cl 8

1шт.

54

P5628273

SUPPORT

- cable, engine, right-hand

1шт.

55

P5628272

SUPPORT

- cable, engine, left-hand

1шт.

56

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- plate, cable mounting, hex, full threads, 12 - 1.75 x 25 mm (Replaces bolt P33873)

2шт.

57

P4328793

BUSHING

SPACER - plate bolt

2шт.

58

P3122819

LARGE PLATE

PLATE - cable mounting

1шт.

59

P1050595

CARTRIDGE

ELEMENT - fuel filter, spin on type

2шт.

60

P250575

SUPPORT

HEAD - fuel filter, order from Deutz

1шт.

61

P1337487

DEUTZ PART

PLUG - filter head, order from Deutz

4шт.

62

P32568

BOLT

BOLT - filter head, order from Deutz

2шт.

63

P545207

DEUTZ PART

WASHER - bolt, order from Deutz

2шт.

64

P40782

DEUTZ PART

BLOCK - electrical connection, order from Deutz, Serial Range: 74570-74597

1шт.

64

P40782

DEUTZ PART

BLOCK - electrical connection, order from Deutz, Start Serial: 03201

1шт.

65

P32531

SCREW

- slotted head, 4 mm x 20 mm, class 3.6, Start Serial: 74540

2шт.

66

P34603

WASHER

- flat, 4 mm, Serial Range: 74570-74597

2шт.

66

P34603

WASHER

- flat, 4 mm, Start Serial: 03201

2шт.

67

P34107X

NUT,M4, Cl 8

- hex, 4 mm, Serial Range: 74570-74597

2шт.

67

P34107X

NUT,M4, Cl 8

- hex, 4 mm, Start Serial: 03201

2шт.

68

P1241857

IGNITION SWITCH

SWITCH - hourmeter, engine oil pressure, P.I.N. 74441 through 74596, see Ref. 17, Figure 4-2, Serial Range: 74441-74596

1шт.

69

P637389

RESTRICTOR

ADAPTER - switch to engine, Serial Range: 74441-74596

1шт.
