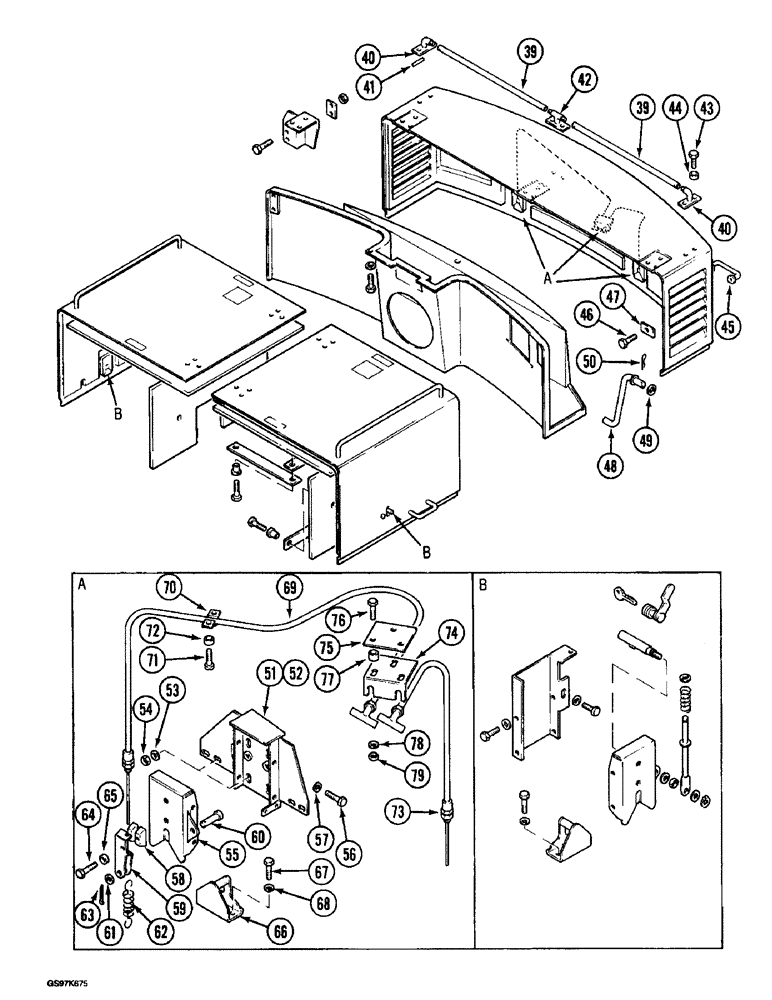

Запчасти Case 220B (9-028) - REAR ACCESS COVERS AND SHROUD, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (09) - CHASSIS

39

P1348213

GRAB RAIL

HANDLE - assist, rear, no longer available, continued

2шт.

40

P104158

END FITTING

BRACKET - assist handle, outside

2шт.

41

P35730

SPLIT PIN/SAFETY PIN

PIN - roll, Serial Range: handle-bracket

2шт.

42

P104159

SUPPORT

BRACKET - assist handle, center

1шт.

43

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Assist handle brackets to shroud Hex, M12 x 35, 8.8, Full Thd

6шт.

44

P828507

WASHER

SPACER - bracket bolt

6шт.

45

P1352002

HANDLE

- shroud lift

1шт.

46

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- handle to shroud, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

47

P1722894

PLATE

- spacer

2шт.

48

P3727110

STAND

ROD - shroud prop

1шт.

49

P35002

WASHER

- rod

1шт.

50

P35512

SPLIT PIN

PIN - cotter, rod

1шт.

51

P7428199

SUPPORT

BRACKET - lock mounting, right-hand

1шт.

52

P7428178

DOOR

BRACKET - lock mounting, left-hand

1шт.

53

P35021

WASHER

SPACER - bracket

16шт.

54

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

16шт.

55

P152092

LOCK ASSY

LOCK - shroud

2шт.

56

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- bracket to lock, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

8шт.

57

P35020

WASHER

SPACER - bolt

8шт.

58

P2020323

CABLE TIE

CLAMP - cable

2шт.

59

P3342760

CLEVIS

ACTUATOR - lock

2шт.

60

P27850

PIN

- lock

2шт.

61

P35002

WASHER

- actuator

2шт.

62

P38017

COIL SPRING

SPRING - actuator

2шт.

63

P35510

SPLIT PIN

PIN - cotter, washer retaining

2шт.

64

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- Actuator, hex, full threads, 6 - 1.0 x 20 mm (Replaces bolt P33809)

2шт.

65

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

66

P852003

CATCH PLATE

LATCH - shroud

2шт.

67

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

(Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

4шт.

68

P34611

WASHER

SPACER - bolt

4шт.

69

P31394

CABLE

- shroud latch control, right-hand

1шт.

70

P1436957

CLAMP

- cable retaining

3шт.

71

P32529

SCREW,Hex Soc Hd, M4 x 16

- slotted head, 4 mm x 16 mm

6шт.

72

P4328717

WASHER

SPACER - screw, 3 mm thick

6шт.

73

P31395

CABLE

- shroud latch control, left-hand

1шт.

74

P3927187

HOOD

BRACKET - cable mounting

1шт.

75

P1323246

PLATE

- bracket

1шт.

76

814-14060

BOLT,Hex, M14 x 2 x 60mm, Cl 8.8

full threaded (Replaces bolt P633005) Hex, M14 x 60, 8.8

3шт.

77

P1231891

SPACER

- bolt, special

3шт.

78

P35005

WASHER

- flat, 14 mm

3шт.

79

P134549

SAFETY NUT

NUT - hex, self-locking, 14 mm

3шт.
