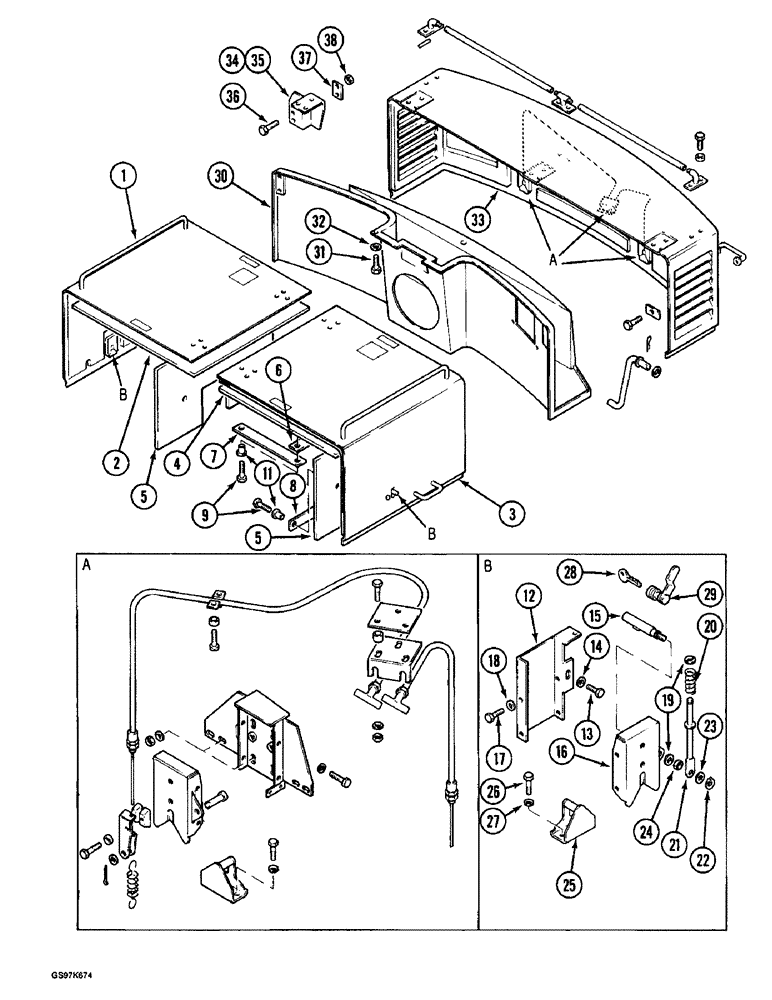

Запчасти Case 220B (9-026) - REAR ACCESS COVERS AND SHROUD, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

P4843855

SHUTTER

COVER - rear access, right-hand

1шт.

2

P2541479

LARGE PLATE

INSULATION - rear access cover, right-hand, top

1шт.

3

P4843856

SHUTTER

COVER - rear access, left-hand

1шт.

4

P2541481

LARGE PLATE

INSULATION - rear access cover, left-hand, top

1шт.

5

P2541478

LARGE PLATE

INSULATION - rear access covers, side

2шт.

6

P2822899

PLATE

RETAINER - insulation, long, top

2шт.

7

P3122801

PLATE

RETAINER - insulation, short, top

2шт.

8

P2822896

PLATE

RETAINER - insulation, side

2шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- retainer, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

10шт.

11

P234587

NUT

INSERT - retainer bolt

10шт.

12

P3427144

SUPPORT

BRACKET - lock mounting

2шт.

13

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

(Replaces bolt P533831) Hex, M10 x 16, 8.8, Full Thd

8шт.

14

P828507

WASHER

SPACER - bolt

8шт.

15

P1327934

PIN

- lock

2шт.

16

P152092

LOCK ASSY

LOCK - side access covers

2шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- bracket to lock, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

8шт.

18

P35020

WASHER

SPACER - bolt

8шт.

19

P35002

WASHER

- rod and pin

4шт.

20

P738143

COMPRESSION SPRING

SPRING - rod

2шт.

21

P2842783

ROD

- lock actuating

2шт.

22

P36391

RING, SNAP

RING - retaining, pin

2шт.

23

P34607

WASHER

- rod

2шт.

24

P34211

NUT

- hex

2шт.

25

P852003

CATCH PLATE

LATCH - access cover

2шт.

26

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Latch (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

4шт.

27

P34611

WASHER

SPACER - bolt

4шт.

P51947

LOCK ASSY

CYLINDER ASSEMBLY - lock, Includes: Ref. 28 and 29

2шт.

28

P1352007

KEY

- lock

1шт.

29

NSS

NOT SOLD SEPARAT

CYLINDER - lock, order cylinder assembly P51947

1шт.

30

P4540323

VENT MANIFOLD

SHROUD - rear, inner

1шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- inner shroud, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

29шт.

32

P1523469

PLATE

SPACER - bolt

29шт.

33

P7543821

COWL

SHROUD - rear, outer

1шт.

34

P8528109

STIFFENER

BRACKET - reinforcement, shroud, right-hand

1шт.

35

P8528110

STIFFENER

BRACKET - reinforcement, shroud, left-hand

1шт.

36

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Bracket Hex, M10 x 30, 8.8

4шт.

37

P922865

PLATE

- bracket

2шт.

38

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) Continued on next figure M10 x 1.5, Cl 8

4шт.
