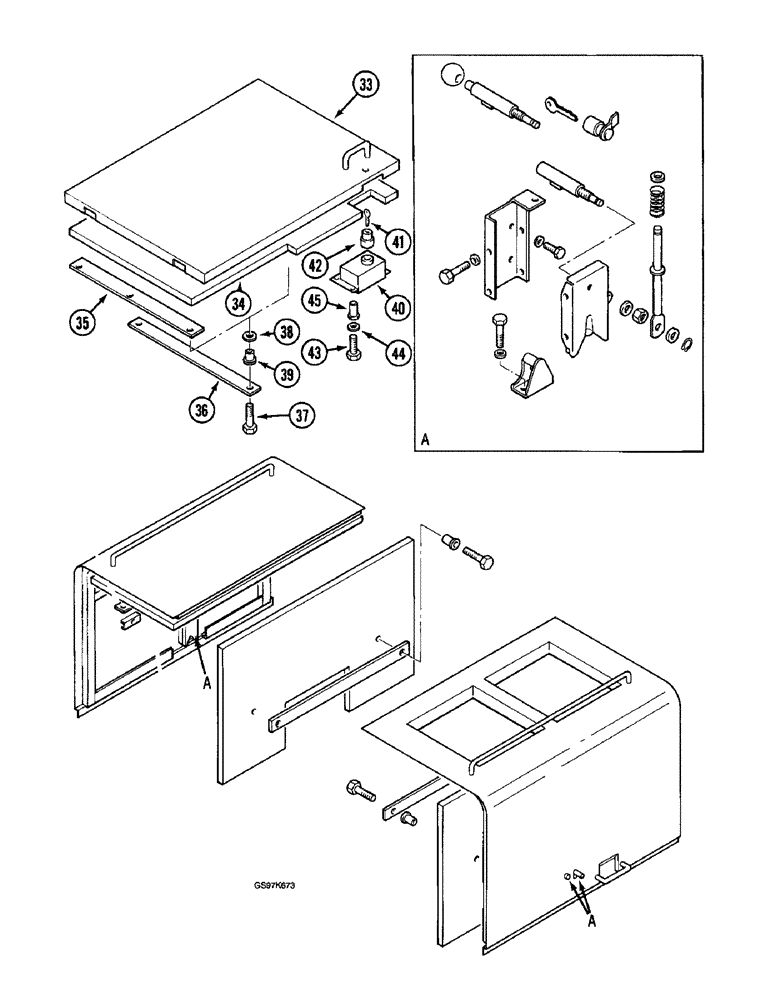

Запчасти Case 220B (9-024) - FRONT ACCESS COVERS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

33

P3143895

SHUTTER

COVER - front access, top, continued

1шт.

34

P2541480

LARGE PLATE

INSULATION - access cover, top

1шт.

35

P2622881

PLATE

- insulation retaining

1шт.

36

P2822898

PLATE

RETAINER - insulation, access cover, top

2шт.

37

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- retainer, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

7шт.

38

P3528794

WASHER

SPACER - bolt insert

3шт.

39

P234587

NUT

INSERT - retainer bolt

7шт.

P152062

LOCK ASSY

BRACKET ASSEMBLY - locking, front access cover, top, Includes: Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

BRACKET - locking, front access cover, top, order bracket assembly P152062

1шт.

P152079

LOCK, CYLINDER

CYLINDER ASSEMBLY - lock, Includes: Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

KEY - lock, order cylinder assembly P152079

1шт.

42

NSS

NOT SOLD SEPARAT

CYLINDER - lock, order cylinder assembly P152079

1шт.

43

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- Bracket and lock mounting, hex, full threads, 6 - 1.0 x 20 mm (Replaces bolt P33809)

4шт.

44

P35001

WASHER

SPACER - bolt

4шт.

45

P36425

INSERT - bolt, no longer available

4шт.
