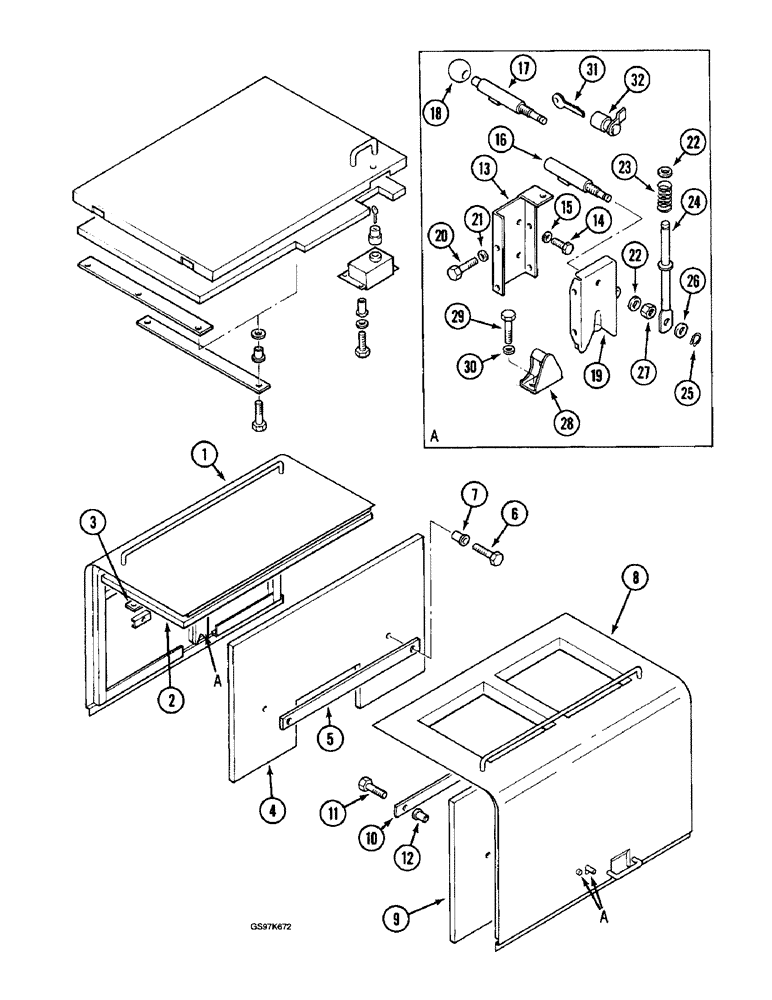

Запчасти Case 220B (9-022) - FRONT ACCESS COVERS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

P4843857

SHUTTER

COVER - front access, right-hand

1шт.

2

P2541476

LARGE PLATE

INSULATION - front access cover, right-hand, top

2шт.

3

P2822895

PLATE

RETAINER - insulation, top, no longer available

1шт.

4

P2541475

LARGE PLATE

INSULATION - access cover, right-hand, side

1шт.

5

P3122802

PLATE

RETAINER - insulation, side

1шт.

6

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- retainer, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

5шт.

7

P234587

NUT

INSERT - retainer bolt

5шт.

8

P4843858

SHUTTER

COVER - front access, left-hand

1шт.

9

P2541477

LARGE PLATE

INSULATION - access cover, left-hand, side

1шт.

10

P3122802

PLATE

RETAINER - insulation, left-hand, side

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- retainer, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

12

P234587

NUT

INSERT - retainer bolt

2шт.

13

P3427144

SUPPORT

BRACKET - lock mounting

2шт.

14

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

Bracket mounting (Replaces bolt P533831) Hex, M10 x 16, 8.8, Full Thd

8шт.

15

P828507

WASHER

SPACER - bolt

8шт.

16

P1327934

PIN

- lock, without knob, if used

2шт.

17

P1327976

PIN

- lock, with knob, if used

2шт.

18

P152059

BALL KNOB

KNOB - lock pin, used with Ref. 17

2шт.

19

P152092

LOCK ASSY

LOCK - side access covers

2шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- bracket to lock, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

8шт.

21

P35020

WASHER

SPACER - bolt

8шт.

22

P35002

WASHER

- rod and pin

4шт.

23

P738143

COMPRESSION SPRING

SPRING - rod

2шт.

24

P2842783

ROD

- lock actuating

2шт.

25

P36391

RING, SNAP

RING - retaining, pin

2шт.

26

P34607

WASHER

- rod

2шт.

27

P34211

NUT

- hex

2шт.

28

P852003

CATCH PLATE

LATCH - access cover

2шт.

29

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Latch Hex, M10 x 30, 8.8

4шт.

30

P34611

WASHER

SPACER - bolt

4шт.

P51947

LOCK ASSY

CYLINDER ASSEMBLY - lock, with key, Includes: Ref. 31 and 32

2шт.

31

P1352007

KEY

- lock

1шт.

32

NSS

NOT SOLD SEPARAT

CYLINDER - lock, order cylinder assembly P51947 Continued on next figure

1шт.
