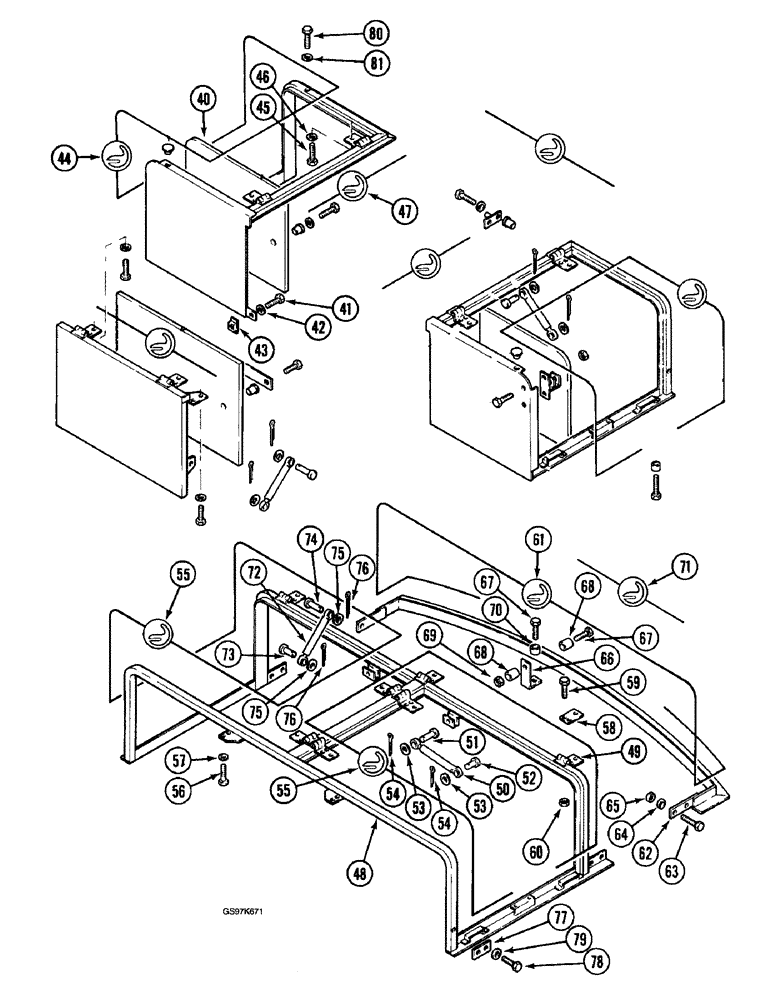

Запчасти Case 220B (9-020) - ENGINE ACCESS COVER FRAMES AND SEALS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (09) - CHASSIS

40

P2541482

PANEL

- front, right-hand frame support

1шт.

41

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Frame (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

2шт.

42

P35021

WASHER

SPACER - bolt

2шт.

43

P1334561

NUT

- special

2шт.

44

P5346004

SEAL

- right-hand engine access cover frame

1шт.

45

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

Hinge Hex, M14 x 30

24шт.

46

P4328798

WASHER

SPACER - bolt

24шт.

47

REF

INSTRUCTION

SEAL - engine access cover frame, 1100 mm (43-3/8 inch) long, cut from bulk seal P303111 below

1шт.

P3343867

FRAMEWORK

FRAME ASSEMBLY - engine cover, rear, Includes: Ref. 48 and 49

1шт.

48

NSS

NOT SOLD SEPARAT

FRAME - engine cover, rear, order frame assembly P3343867

1шт.

49

P36684

HINGE

- engine cover frame

7шт.

50

P1436934

GAS STRUT

CYLINDER - cover support

4шт.

51

P1127815

PIN

- cylinder, frame end

4шт.

52

P2327822

PIN

- cylinder, cover end

4шт.

53

P35002

WASHER

- flat

8шт.

54

P35510

SPLIT PIN

PIN - cotter, cylinder pin

8шт.

55

P5346003

SEAL

- engine access cover frame, rear

2шт.

56

P33869

BOLT,Hex, M14 x 30

Frame Hex, M14 x 30

4шт.

57

P545521

WASHER

SPACER - bolt

4шт.

58

P523280

PLATE

- frame

3шт.

59

615-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 8.8, Full Thd

(Replaces bolt P933833) Hex, M14 x 45, 8.8, Full Thd

9шт.

60

P134549

SAFETY NUT

NUT - hex

9шт.

61

P5346002

SEAL

- engine access cover frame

1шт.

62

P7228179

ANGLE BAR

SUPPORT - rear shroud

1шт.

63

614-14040

BOLT,Hex, M14 x 2 x 40mm, Cl 8.8, Full Thd

(Replaces bolt P533846) Hex, M14 x 40, 8.8, Full Thd

4шт.

64

P28551

WASHER

SPACER - bolt

4шт.

65

P34168

NUT

- hex

4шт.

66

P3025648

SUPPORT

BRACKET - support

2шт.

67

P32688

SCREW

BOLT - hex, 14 mm x 50 mm, full threaded

6шт.

68

P3528792

WASHER

SPACER - bolt, horizontal

4шт.

69

P134549

SAFETY NUT

NUT - hex

2шт.

70

P3528798

WASHER

SPACER - bolt, vertical

4шт.

71

REF

INSTRUCTION

SEAL - rear shroud support, 1100 mm (43-3/8 inch) long, cut from bulk seal P303111 below

1шт.

72

P1436933

GAS STRUT

CYLINDER - shroud support

2шт.

73

P1127815

PIN

- cylinder, frame end

2шт.

74

P2327822

PIN

- cylinder, shroud end

2шт.

75

P35002

WASHER

- flat

4шт.

76

P35510

SPLIT PIN

PIN - cotter, cylinder pin

4шт.

77

P1722830

PLATE

- frame

2шт.

78

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

4шт.

79

P35002

WASHER

- flat, 8 mm

4шт.

80

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

8шт.

81

P35005

WASHER

- flat, 14 mm

8шт.

P303111

SEAL

- bulk, sold by the meter

1шт.
