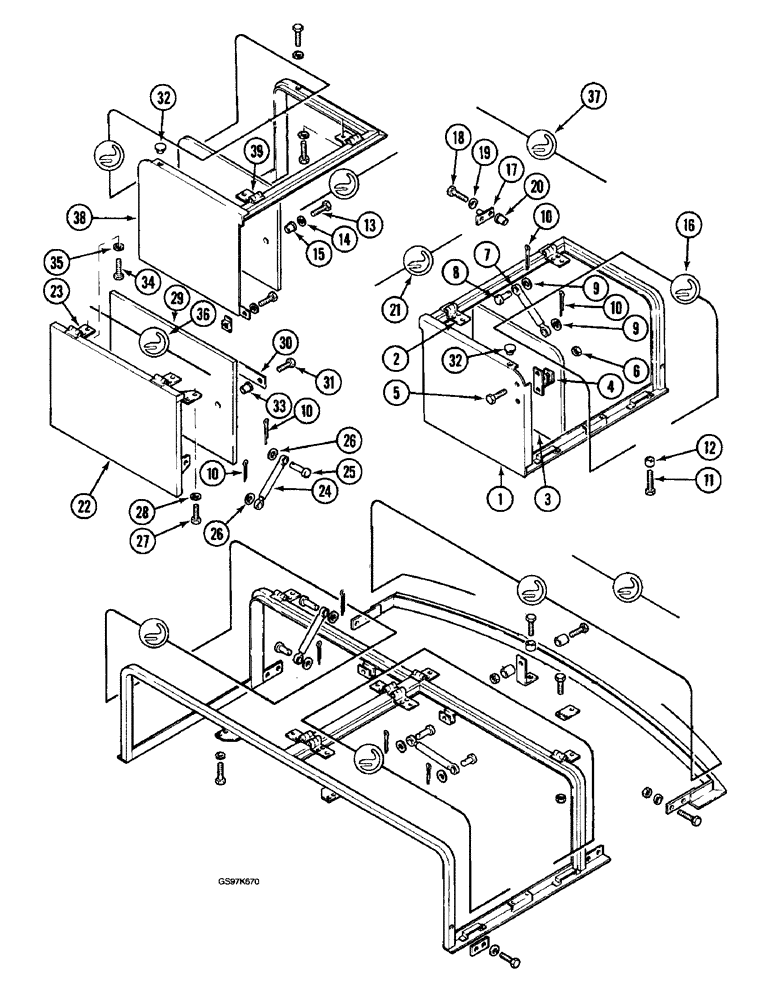

Запчасти Case 220B (9-018) - ENGINE ACCESS COVER FRAMES AND SEALS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

P3143884

FRAMEWORK

FRAME ASSEMBLY - engine cover, left-hand front, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - engine cover, left-hand front, order frame assembly P3143884

1шт.

2

P36684

HINGE

- access, Serial Range: cover-frame

2шт.

3

P2541483

PANEL

- left-hand front frame support

1шт.

4

P1228262

CLEVIS

BRACKET - cylinder mounting

2шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Bracket (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

7

P1436934

GAS STRUT

CYLINDER - support, engine access cover

2шт.

8

P2327822

PIN

- cylinder

4шт.

9

P35002

WASHER

- flat

4шт.

10

P35510

SPLIT PIN

PIN - cotter, cylinder pin

6шт.

11

P32688

SCREW

BOLT - hex, 14 mm x 50 mm, full threaded

18шт.

12

P3528798

WASHER

SPACER - bolt

18шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- panel, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

14

P1145471

WASHER

SPACER - bolt

2шт.

15

P234587

NUT

INSERT - bolt

2шт.

16

P5346005

SEAL

- engine access cover frame, front, left-hand side

2шт.

17

P3427128

PLATE

LATCH - engine cover, center, top

1шт.

18

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

BOLT, Hex, M8 x 20, 8.8, Latch to frame

2шт.

19

P35002

WASHER

- flat

2шт.

20

P234587

NUT

INSERT - bolt

2шт.

21

REF

INSTRUCTION

SEAL - engine access cover frame, 1000 mm (39-3/8 inch) long, cut from bulk seal P30311 below

1шт.

P3143893

FRAMEWORK

DOOR ASSEMBLY - engine access, front, center, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

DOOR - engine access, front, center, order door assembly P3143893

1шт.

23

P36684

HINGE

- door

2шт.

24

P836984

GAS STRUT

CYLINDER - support, engine access door

1шт.

25

P1127815

PIN

- cylinder

1шт.

26

P35002

WASHER

- flat

2шт.

27

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

Door mounting Hex, M14 x 30

4шт.

28

P545521

WASHER

SPACER - bolt

4шт.

29

P2541484

PANEL

- door

1шт.

30

P2822897

PLATE

- panel retaining, no longer available

1шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- panel, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

32

P3237454

PLASTIC PLUG

PLUG - plastic, frame

2шт.

33

P234587

NUT

INSERT - bolt

2шт.

34

P33869

BOLT,Hex, M14 x 30

Hinge, engine access door, front, center Hex, M14 x 30

6шт.

35

P35023

WASHER

SPACER - bolt

6шт.

36

REF

INSTRUCTION

SEAL - engine access door, 800 mm (31-1/2 inch) long, cut from bulk seal P303111 below

1шт.

37

REF

INSTRUCTION

SEAL - frame, 800 mm (31-1/2 inch) long, cut from bulk seal P303111 below

1шт.

P3143883

FRAMEWORK

FRAME ASSEMBLY - engine access cover, front, right-hand side, Includes: Ref. 38 and 39

1шт.

38

NSS

NOT SOLD SEPARAT

FRAME - engine access cover, front, right-hand side, order frame assembly P3143883

1шт.

39

P36684

HINGE

- access, Serial Range: cover-frame

2шт.

P303111

SEAL

- bulk, sold by the meter Continued on next figure

1шт.
