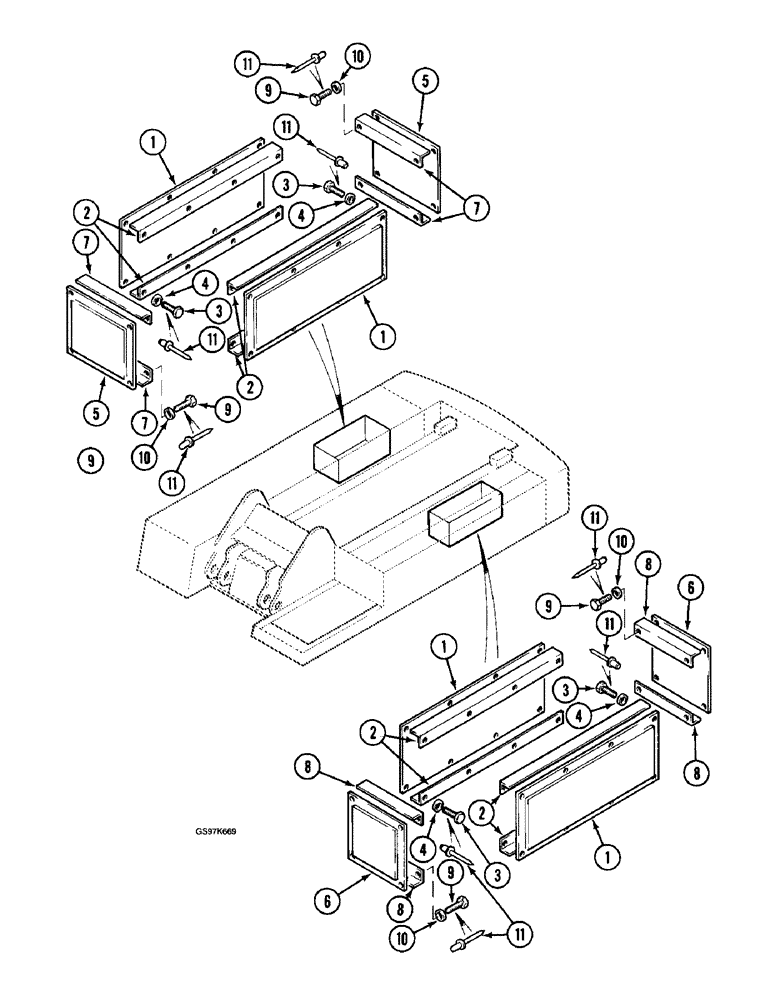

Запчасти Case 220B (9-016) - AIR EXHAUST CHAMBERS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

P2223441

LARGE PLATE

PLATE - air exhaust chamber, side

4шт.

2

P331669

ANGLE BAR

BRACKET - side plate mounting

8шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, bracket, if used, see Ref. 11 (Replaces bolt P33815)

32шт.

4

P3528794

WASHER

SPACER - bolt, if used, see Ref. 11

32шт.

5

P2223439

LARGE PLATE

PLATE - air exhaust chamber, end, right-hand side

2шт.

6

P2223440

LARGE PLATE

PLATE - air exhaust chamber, end, left-hand side

2шт.

7

P731541

RUBBER STRIP

BRACKET - end plate mounting, right-hand side, no longer available

4шт.

8

P731540

PROFILE

BRACKET - end plate mounting, left-hand side

4шт.

9

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, bracket, if used, see Ref. 11 (Replaces bolt P33815)

16шт.

10

P3528794

WASHER

SPACER - bolt, if used, see item 11

16шт.

11

P35418

RIVET

- pop, 8 mm x 17 mm, if used, replaces Refs. 3, 4, 9 and 10

48шт.
