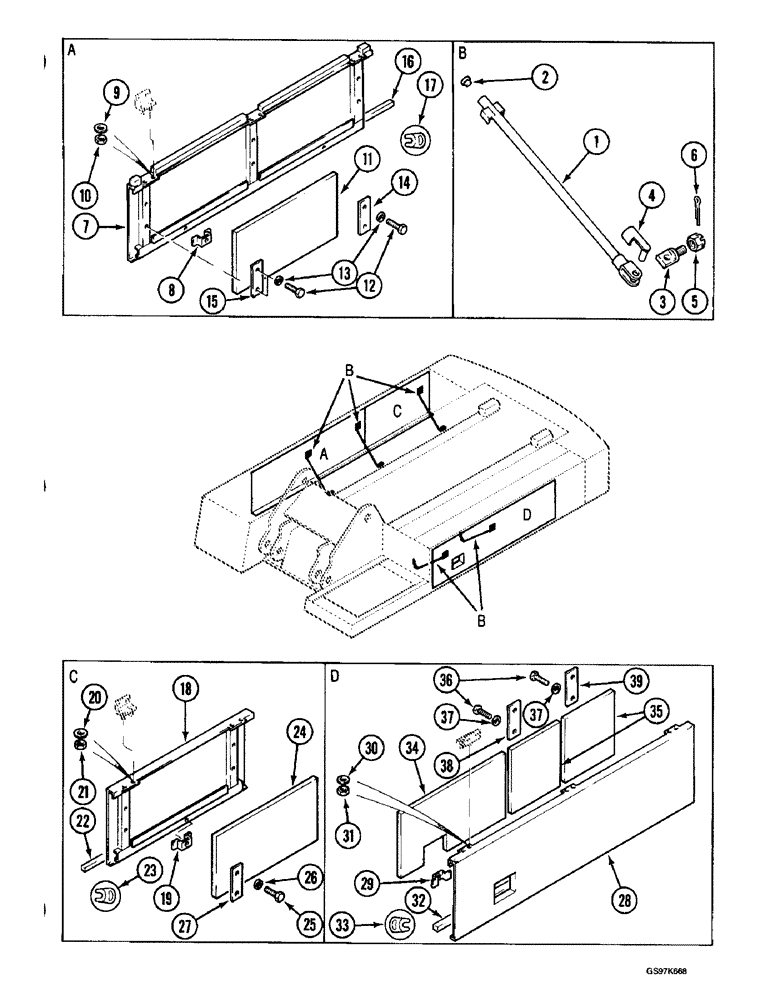

Запчасти Case 220B (9-014) - TURNTABLE SIDE ACCESS COVERS, P.I.N. 74495 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

P736698

STAND

ROD - support

5шт.

2

P1737425

PLASTIC PLUG

PLUG - rod end

5шт.

3

P1027951

CLEVIS

BOLT - swivel, support rod

5шт.

4

P51954

LARGE PIN

RETAINER - rod to swivel bolt

5шт.

5

P34307

NUT

- swivel bolt

5шт.

6

P35512

SPLIT PIN

PIN - cotter, swivel bolt

5шт.

P7543857

PANEL

DOOR ASSEMBLY - right-hand side, front, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

DOOR - right-hand side, order door assembly P7543857

1шт.

8

P51922

LATCH

- door

2шт.

9

P3528795

WASHER

- flat

6шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

6шт.

11

P3441435

LARGE PLATE

PAD - insulation, front door, right-hand side

2шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- pad, hex, full threads, 8 - 1.25 x 25 mm

6шт.

13

P3528794

WASHER

SPACER - bolt

6шт.

14

P2822821

PLATE

BRACKET - pad retaining, center

1шт.

15

P3122817

LARGE PLATE

BRACKET - pad retaining, outer

2шт.

16

REF

INSTRUCTION

SEAL - door, 2000 mm (78-3/4 inch) long, cut from bulk seal P403145 below

1шт.

17

REF

INSTRUCTION

SEAL - door, 2300 mm (90-1/2 inch) long, cut from bulk seal P3109 below

1шт.

P7543859

PANEL

DOOR ASSEMBLY - right-hand side, rear, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

DOOR - right-hand side, rear, order door assembly P7543859

1шт.

19

P51922

LATCH

- door

1шт.

20

P3528795

WASHER

- flat

4шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

22

REF

INSTRUCTION

SEAL - door, 900 mm (35-1/2 inch) long, cut from bulk seal P403145 below

1шт.

23

REF

INSTRUCTION

SEAL - door, 1100 mm (43-3/8 inch) long, cut from bulk seal P3109 below

1шт.

24

P3441436

LARGE PLATE

PAD - insulation, rear door, right-hand side

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- pad retaining, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

4шт.

26

P3528794

WASHER

SPACER - bolt

4шт.

27

P3122817

LARGE PLATE

BRACKET - pad retaining

2шт.

P7543858

PANEL

DOOR ASSEMBLY - left-hand side, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

DOOR - left-hand side, order door assembly P7543858

1шт.

29

P51922

LATCH

- door

2шт.

30

P3528795

WASHER

- flat

6шт.

31

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

6шт.

32

REF

INSTRUCTION

SEAL - door, 2000 mm (78-3/4 inch) long, cut from bulk seal P403145 below

1шт.

33

REF

INSTRUCTION

SEAL - door, 2300 mm (90-1/2 inch) long, cut from bulk seal P3109 below

1шт.

34

P3441434

LARGE PLATE

PAD - insulation, front of door, left-hand side

1шт.

35

P3441483

LARGE PLATE

PAD - insulation, rear of door, left-hand side

2шт.

36

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- pad, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

8шт.

37

P3528794

WASHER

SPACER - bolt

8шт.

38

P2822821

PLATE

BRACKET - pad retaining, inner

2шт.

39

P3122817

LARGE PLATE

BRACKET - pad retaining, outer

2шт.

P403145

SEAL

- bulk, sold by the meter

1шт.

P31009

BALL

SEAL - bulk, sold by the meter

1шт.
