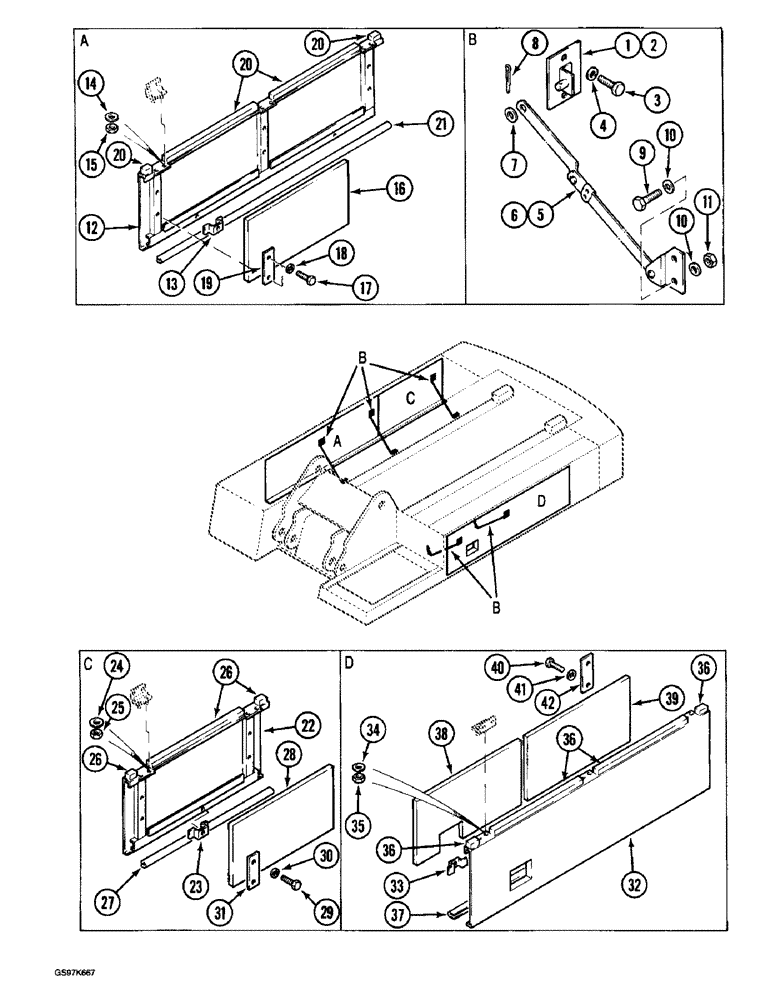

Запчасти Case 220B (9-012) - TURNTABLE SIDE ACCESS COVERS, P.I.N. 74441 THROUGH 74494 (09) - CHASSIS

1

P5628235

SUPPORT

BRACKET - left-hand and right-hand doors

4шт.

2

P5628236

SUPPORT

BRACKET - door, used in center location, right-hand side

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- bracket, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

10шт.

4

P3528794

WASHER

SPACER - bolt

10шт.

5

P36660

STAND

SUPPORT - door, used in left-hand front, right-hand center and rear locations

3шт.

6

P36661

STAND

SUPPORT - door, used in left-hand rear, right-hand front locations

2шт.

7

P35004

WASHER

- flat

5шт.

8

P35510

SPLIT PIN

PIN - cotter, bracket

5шт.

9

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Support Hex, M10 x 30, 8.8

10шт.

10

P4328796

WASHER

SPACER - bolt

20шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P1634563) M10 x 1.5, Cl 8

10шт.

P7043834

PANEL

DOOR ASSEMBLY - right-hand side, front, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

DOOR - right-hand side, order door assembly P7043834

1шт.

13

P51922

LATCH

- door

2шт.

14

P3528795

WASHER

- flat

6шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

6шт.

16

P3441435

LARGE PLATE

PAD - insulation, front door, right-hand side

2шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- pad, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

18

P3528794

WASHER

SPACER - bolt

2шт.

19

P2822821

PLATE

BRACKET - pad retaining

1шт.

20

REF

INSTRUCTION

SEAL - door, 2000 mm (78-3/4 inch) long, cut from bulk seal P403145 below

1шт.

21

REF

INSTRUCTION

SEAL - door, 2300 mm (90-1/2 inch) long, cut from bulk seal P3109 below

1шт.

P7043835

PANEL

DOOR ASSEMBLY - right-hand side, rear, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

DOOR - right-hand side, rear, order door assembly P7043835

1шт.

23

P51922

LATCH

- door

1шт.

24

P3528795

WASHER

- flat

4шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

4шт.

26

REF

INSTRUCTION

SEAL - door, 900 mm (35-1/2 inch) long, cut from bulk seal P403145 below

1шт.

27

REF

INSTRUCTION

SEAL - door, 1100 mm (43-3/8 inch) long, cut from bulk seal P3109 below

1шт.

28

P3441436

LARGE PLATE

PAD - insulation, rear door, right-hand side

1шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- pad, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

30

P3528794

WASHER

SPACER - bolt

2шт.

31

P3122817

LARGE PLATE

BRACKET - pad retaining

1шт.

P7043833

PANEL

DOOR ASSEMBLY - left-hand side, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

DOOR - left-hand side, order door assembly P7043833

1шт.

33

P51922

LATCH

- door

2шт.

34

P3528795

WASHER

- flat

6шт.

35

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, (Replaces nut P34598) M10 x 1.5, Cl 8

6шт.

36

REF

INSTRUCTION

SEAL - door, 78-3/4 inch (2000 mm) long, cut from bulk seal P403145 below

1шт.

37

REF

INSTRUCTION

SEAL - door, 90-1/2 inch (2300 mm) long, cut from bulk seal P3109 below

1шт.

38

P3441434

LARGE PLATE

PAD - insulation, front door, left-hand side

1шт.

39

P3441435

LARGE PLATE

PAD - insulation, rear door, left-hand side

1шт.

40

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- pad, hex, full threads, 8 - 1.25 x 25 mm (Replaces bolt P33815)

2шт.

41

P3528794

WASHER

SPACER - bolt

2шт.

42

P2822821

PLATE

BRACKET - pad retaining

1шт.

P403145

SEAL

- bulk, sold by the meter

1шт.

P31009

BALL

SEAL - bulk, sold by the meter

1шт.
