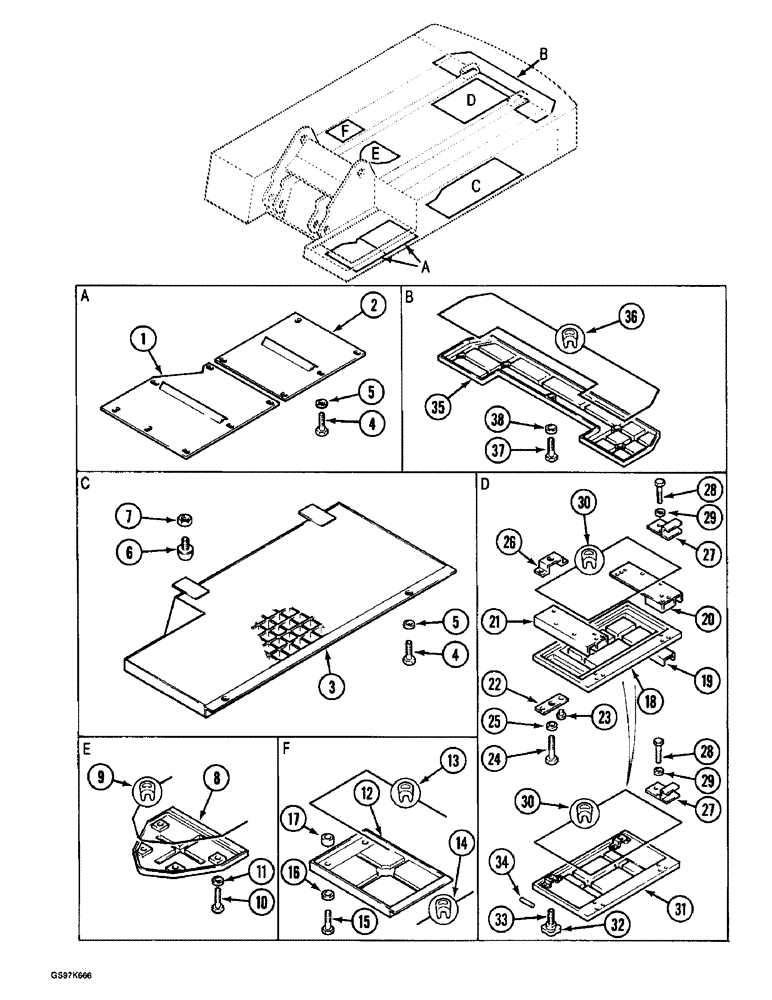

Запчасти Case 220B (9-010) - TURNTABLE LOWER ACCESS COVERS, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (09) - CHASSIS

1

P4127180

HOOD

COVER - under operators compartment, front

1шт.

2

P4127179

HOOD

COVER - under operators compartment, rear

1шт.

3

P6328234

GRATING

DOOR - left-hand, bottom

1шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

Cover (Replaces bolt P33827) Hex, M10 x 25, 8.8, Full Thd

12шт.

5

P3528795

WASHER

SPACER - bolt

12шт.

6

P741463

STOP

- door

2шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, (Replaces nut P134596) M8 x 1.25, Cl 8

2шт.

P7543817

PANEL

COVER ASSEMBLY - fiberglass, top, left-hand, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - fiberglass, top, left-hand, order cover assembly P7543817

1шт.

9

REF

INSTRUCTION

SEAL - 2000 mm (78-3/4 inch) long, cut from bulk seal P3109 below

1шт.

10

86509597

BOLT,Hex, M30 x 14mm, Cl 8.8

Cover Hex, M14 x 30

4шт.

11

P3528792

WASHER

SPACER - bolt

4шт.

P7543819

PANEL

COVER ASSEMBLY - fiberglass, top, right-hand, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

COVER - fiberglass, top, right-hand, order cover assembly P7543819

1шт.

13

REF

INSTRUCTION

SEAL - 1800 mm (70-7/8 inch) long, cut from bulk seal P3109 below

1шт.

14

REF

INSTRUCTION

SEAL - 500 mm (19-11/16 inch) long, cut from bulk seal P3109 below

1шт.

15

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

Cover (Replaces bolt P133813) Hex, M10 x 50, 8.8

2шт.

16

P3528795

WASHER

SPACER - bolt, small

2шт.

17

P828508

BUSHING

SPACER - bolt, large

2шт.

18

NSS

NOT SOLD SEPARAT

DOOR - fiberglass, engine access, no longer available, order P7543816 door assembly

1шт.

19

P2525877

BRACKET

- door, no longer available, order P7543816 door assembly

1шт.

20

P2728262

STIFFENER

SUPPORT - door, rear, no longer available, order P7543816 door assembly

1шт.

21

P2728265

STIFFENER

SUPPORT - door, front, no longer available, order P7543816 door assembly

1шт.

22

P922816

PLATE - door, no longer available, order P7543816 door assembly

2шт.

23

P35418

RIVET

- plate, if used

8шт.

24

814-14070

BOLT,Hex, M14 x 2 x 70mm, Cl 8.8

if used (Replaces bolt P133878) Hex, M14 x 70, 8.8

2шт.

25

P3528792

WASHER

SPACER - bolt, if used

2шт.

26

P1226316

HOOD

LATCH - door, no longer available, order P7543816 door assembly

2шт.

27

P2227105

JOINT

HINGE - door

2шт.

28

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hinge, hex, full threads, 12 - 1.75 x 40 mm (Replaces bolt P533837)

6шт.

29

P3528793

WASHER

SPACER - bolt

6шт.

30

REF

INSTRUCTION

SEAL - door, use P3109 bulk seal and, Serial Range: cut-length

1шт.

P7543816

PANEL

DOOR ASSEMBLY - fiberglass, engine access, Includes: Ref. 31 - 36

1шт.

31

NSS

NOT SOLD SEPARAT

DOOR - fiberglass, engine access, order door assembly P7543816

1шт.

32

P834578

NUT

KNOB - retainer, access door

2шт.

33

P727753

STEM

STUD - retainer knob

2шт.

34

P35731

SPLIT PIN/SAFETY PIN

PIN - roll, retainer knob

2шт.

P7543818

PANEL

COVER ASSEMBLY - rear

1шт.

35

NSS

NOT SOLD SEPARAT

COVER - rear, order cover assembly P7543818

1шт.

36

REF

INSTRUCTION

SEAL - 6200 mm (244 inch) long, cut from bulk seal P3109 below

1шт.

37

P33869

BOLT,Hex, M14 x 30

Cover Hex, M14 x 30

5шт.

38

P3528792

WASHER

SPACER - bolt

5шт.

P3109

GASKET

SEAL - bulk, sold by the meter

1шт.
