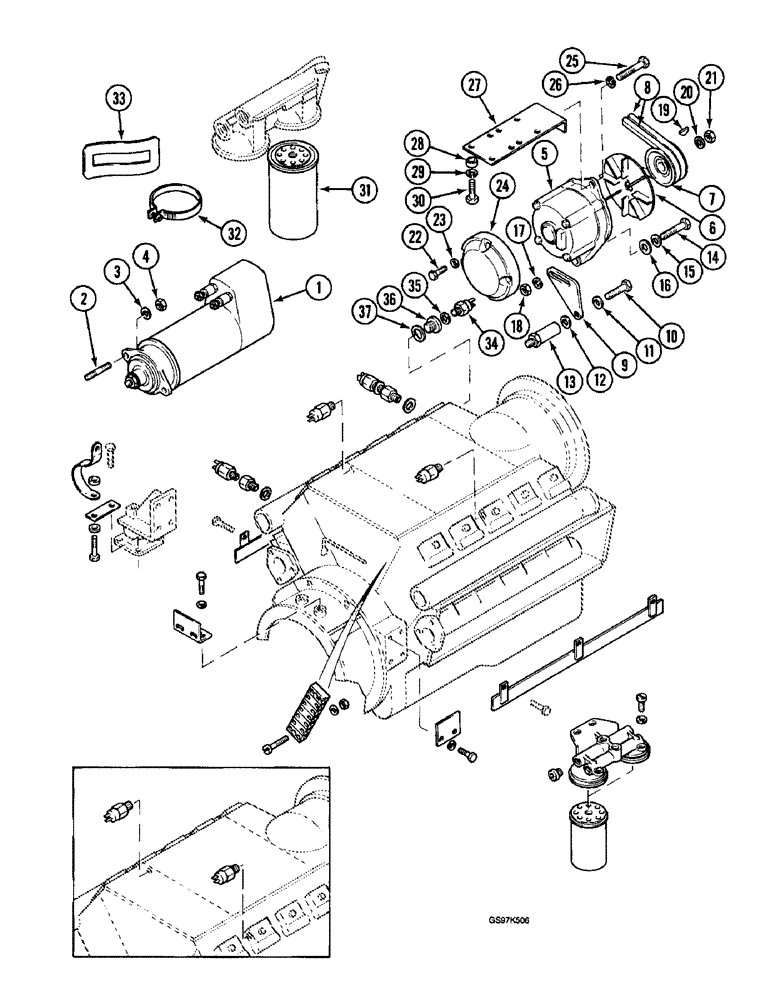

Запчасти Case 220B (2-10) - ENGINE FILTERS, ALTERNATOR & STARTER, ADAPTING PARTS TO ENG., P.I.N. 74441-74597, P.I.N. 03201 & AFT (02) - ENGINE

1

REF

INSTRUCTION

STARTER ASSEMBLY - engine, parts list Figures 4-6 and 4-8

1шт.

2

P727758

DEUTZ PART

STUD - starter mounting, order from Deutz

3шт.

3

P34734

WASHER

- studs, order from Deutz

3шт.

4

825-1410

NUT,M10, Cl 8

(Replaces nut P34166) M10, Cl 8

3шт.

5

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - electrical, parts list Figure 4-10

1шт.

6

P2843223

DEUTZ PART

FAN - alternator, order from Deutz

1шт.

7

P538551

DEUTZ PART

PULLEY - alternator, order from Deutz

1шт.

8

P938762

SET OF 2 BELTS

BELT - alternator drive, 10 mm (3/8 inch) wide x 975 mm (38-3/8 inch) long, set of two

1шт.

9

P5028256

DEUTZ PART

STRAP - alternator adjusting, order from Deutz

1шт.

10

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd, Strap to engine Hex, M10 x 30, 8.8

1шт.

11

P8230132

DEUTZ PART

SHIM - bolt, order from Deutz

1шт.

12

P745398

DEUTZ PART

SPACER - alternator bolt, order from Deutz

1шт.

13

P3947221

EXTENSION

- strap mounting bolt

1шт.

14

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

Strap to alternator (Replaces bolt P33818) Hex, M8 x 35, 8.8

1шт.

15

P34939

DEUTZ PART

WASHER - alternator bolt, order from Deutz

1шт.

16

P545697

DEUTZ PART

SPACER - strap to alternator, order from Deutz

1шт.

17

P634609

DEUTZ PART

WASHER - at engine, order from Deutz

1шт.

18

P34113

NUT

- alternator bolt

1шт.

19

P236143

DEUTZ PART

KEY - shaft to pulley, order from Deutz

1шт.

20

P135976

DEUTZ PART

WASHER - lock, order from Deutz

1шт.

21

P2034512

DEUTZ PART

NUT - pulley to shaft, order from Deutz

1шт.

22

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

- Cover to alternator Hex, M5 x 16, 8.8, Full Thd

4шт.

23

P1045329

DEUTZ PART

WASHER - alternator cover bolt, order from Deutz

4шт.

24

P2340470

LIGHT FAIRING

COVER - alternator

1шт.

25

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

Bracket to alternator (Replaces bolt P133849) Hex, M8 x 80, 8.8

1шт.

26

P634609

DEUTZ PART

WASHER - bracket to alternator bolt, order from Deutz

1шт.

27

P6546235

DEUTZ PART

BRACKET - alternator mounting, order from Deutz

1шт.

28

P545545

DEUTZ PART

SPACER - bolt, bracket to engine, order from Deutz

4шт.

29

P34734

WASHER

- bracket bolt, order from Deutz

4шт.

30

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- alternator bracket to engine, hex, full threads, 10 - 1.5 x 35 mm

4шт.

31

P1350575

CARTRIDGE

ELEMENT - engine oil filter, spin on type

2шт.

32

P2036991

DEUTZ PART

CLAMP - element, order from Deutz

2шт.

33

P126789

SUPPORT

PLATE - locking (Replaces plate P3328259)

1шт.

34

P641594

DEUTZ PART

SENDER - temperature, engine oil, order from Deutz

1шт.

35

P146093

WASHER, SEALING

SEAL - sender

1шт.

36

P1929015

DEUTZ PART

BUSHING - sender, if used, order from Deutz

1шт.

37

P146097

DEUTZ PART

SEAL - bushing, if used, order from Deutz Continued on the next figure

1шт.
