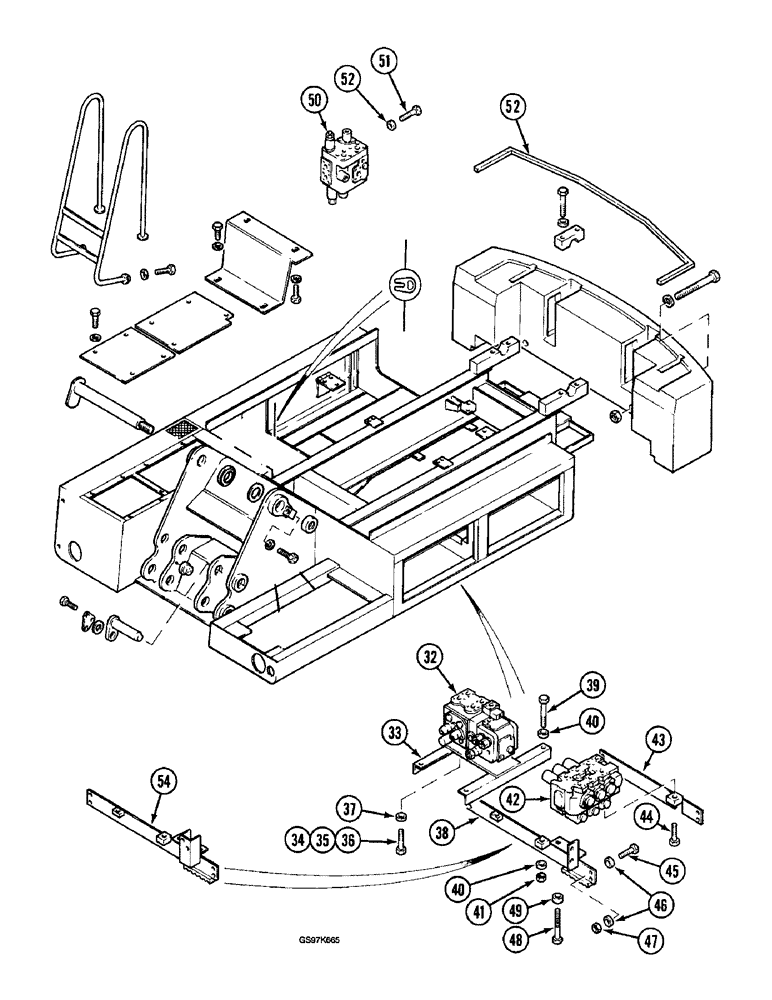

Запчасти Case 220B (9-008) - TURNTABLE AND COUNTERWEIGHT, P.I.N. 74441 THROUGH 74597, P.I.N. 03201 AND AFTER (CONT) (09) - CHASSIS

32

REF

INSTRUCTION

VALVE ASSEMBLY - control, parallel and drive control valve, parts list figure 8-126 or 8-128, continued

1шт.

33

P5028269

SUPPORT

BRACKET - control valve mounting

1шт.

34

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

replaces bolt P33803 Hex, M16 x 55, 8.8, Full Thd

4шт.

35

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

replaces bolt P133805 Hex, M16 x 60, 8.8, Serial Range: 74441-74569

1шт.

36

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

replaces bolt P33875 Hex, M16 x 70, 8.8, Serial Range: 74441-74569

1шт.

37

P4328733

WASHER

SPACER - bolt

4-6шт.

38

P1253778

CROSSBAR

PLATE - bracket mounting

1шт.

39

814-14090

BOLT,Hex, M14 x 2 x 90mm, Cl 8.8

bracket (Replaces bolt P533850) Hex, M14 x 90, 8.8, Serial Range: 74441-74569

4шт.

40

P3528792

WASHER

SPACER - bolt

8шт.

41

P134549

SAFETY NUT

NUT - hex

4шт.

42

P2243644

BLOCK ASSY.

VALVE ASSEMBLY - attachment control, parts list Figures 8-122 and 8-124

1шт.

43

P1028299

CROSSBAR

PLATE - attachment control valve mounting, Serial Range: 74441-74597

1шт.

43

P1028299

CROSSBAR

PLATE - attachment control valve mounting, Serial Range: 03201-03213

1шт.

44

P33868

SCREW

BOLT - plate

2шт.

45

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

Plate to bracket (Replaces bolt P33855) Hex, M16 x 90, 8.8, Serial Range: 74441-74597

8шт.

45

814-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 8.8

Plate to bracket (Replaces bolt P33855) Hex, M16 x 90, 8.8, Serial Range: 03201-03213

8шт.

46

P3528790

WASHER

SPACER - bolt, Serial Range: 74441-74597

16шт.

46

P3528790

WASHER

SPACER - bolt, Serial Range: 03201-03213

16шт.

47

P134547

SAFETY NUT

NUT - hex, Serial Range: 74441-74597

8шт.

47

P134547

SAFETY NUT

NUT - hex, Serial Range: 03201-03213

8шт.

48

P33868

SCREW

BOLT -, Serial Range: plate-valve

2шт.

49

P28550

BOSS

SPACER - bolt

2шт.

50

P2443638

BLOCK ASSY.

VALVE ASSEMBLY - optional control, parts list Figure 8-136

1шт.

51

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

valve mounting, replaces bolt P33803 Hex, M16 x 55, 8.8, Full Thd

3шт.

52

P4528716

WASHER

SPACER - bolt

3шт.

53

REF

INSTRUCTION

SEAL - counterweight to turntable, 3400 mm (133-7/8 inch) long, cut from bulk seal P303173 below

1шт.

54

P1253792

CROSSBAR

PLATE - bracket mounting, Serial Range: 74570-74597

1шт.

54

P1253792

CROSSBAR

PLATE - bracket mounting, Serial Range: 03201-03213

1шт.

P303173

SEAL

- bulk, sold by the meter

1шт.
